Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

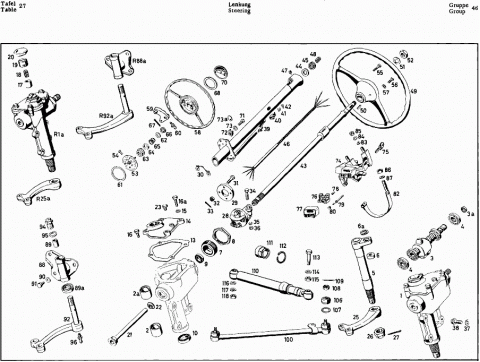

Grupė: 46 STEERING
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING | ||
| 001 | A 1204603101 | STEERING, WITHOUT |
| PITMAN ARM | ||
| 01a | A 1204603301 | STEERING, WITHOUT |
| PITMAN ARM | ||
| 002 | A 1204620550 | BEARING BUSHING, |
| TOP AND BOTTOM UP TO STEERING 9500886 | ||
| BEARING BUSHING, BOTTOM | ||
| FROM STEERING 9500887 | ||
| 02a | A 1204620650 | BEARING BUSHING, TOP |
| FROM STEERING 9500887 | ||
| 003 | A 1204601608 | STEERING WORM |
| WITH NUT AND TAPERED ROLLER BEARING | ||
| A 1864600808 | STEERING WORM | |
| WITH NUT AND TAPERED ROLLER BEARING | ||
| 03a | A 1209971140 | SEALING RING |
| FOR CABLE TUBE, TOP | ||
| 004 | A 0009810318 | TAPERED ROLLER BEARING |
| A 1864600211 | STEERING SHAFT | |
| WITH BALL SOCKET AND LOCKING RING | ||
| 005 | A 1864600311 | STEERING SHAFT |
| WITH BALL SOCKET AND LOCKING RING | ||
| 006 | A 1204620237 | BALL SOCKET |
| 06a | LOCKING RING | |
| 28 X 1,2 DIN 472 | ||
| 007 | A 1204610406 | ADJUSTING RING |
| 008 | A 1209900551 | HEX. NUT |
| FOR SECURING ADJUSTING RING | ||
| 009 | SEALING RING | |
| B 20X32X7 DIN 6504 IN ADJUSTING RING | ||
| 010 | A 0009974846 | SEALING RING |
| FOR STEERING SHAFT AT STEERING HOUSING, BOTTOM | ||
| 013 | A 1204610580 | GASKET |
| 014 | A 1864610705 | STEERING HOUSING COVER |
| 015 | LOCK WASHER | |
| B 8 DIN 127 FOR STEERING HOUSING COVER AT STEERING HOUSING | ||
| 016 | HEX. -HD. SCREW | |
| M 8X22 DIN 933-8 G FOR STEERING HOUSING COVER AT STEERING HOUSING | ||
| 16a | HEX. -HD. SCREW | |
| M 8X28 DIN 933-8 G FOR STEERING HOUSING COVER AT STEERING HOUSING | ||
| 017 | A 1204620185 | PRESSURE SLEEVE |
| 018 | A 1209932401 | PRESSURE SPRING |
| 019 | A 1204610108 | PRESSURE SCREW |
| 020 | A 1209900451 | HEX. NUT |
| 021 | A 1864600515 | CABLE TUBE |
| WITH THREADED FITTING, M 20X1,5 | ||
| 022 | A 1209971040 | SEALING RING |
| FOR CABLE TUBE, BOTTOM | ||
| 023 | LOCKING SCREW | |
| AM 10X1 DIN 7604 FOR LOCKING STEERING HOUSING COVER AFTER ADJUSTING FRONT WHEELS | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| PITMAN ARM | ||
| 025 | A 1204630501 | PITMAN ARM |
| 25a | A 1204630701 | PITMAN ARM |
| 026 | CASTLE NUT | |
| M 22X1,5 DIN 937-5 S FOR PITMAN ARM AT STEERING | ||
| 027 | COTTER PIN | |
| 5 X 40 DIN 94 FOR PITMAN ARM AT STEERING | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING COUPLING | ||
| 028 | A 1214600310 | STEERING COUPLING |
| WITH GROUND CONNECTION | ||
| A 1214600410 | STEERING COUPLING | |
| WITH GROUND CONNECTION | ||
| 029 | A 1214620046 | JOINT DISC |
| A 1114620046 | JOINT DISC | |
| A 1535400042 | GROUND CONNECTION | |
| 030 | A 1985400038 | GROUND CONNECTION |
| 031 | HEX. -HD.SCREW | |
| M 8X28 S DIN 931-8G FOR JOINT DISC AT FLANGE | ||
| 032 | CASTLE NUT | |
| M 8 DIN 937-5 S FOR JOINT DISC AT FLANGE | ||
| 033 | COTTER PIN | |
| 2 X 18 DIN 94 FOR JOINT DISC AT FLANGE | ||
| 034 | HEX. -HD.SCREW | |
| M 8X35 DIN 931-8 G FOR STEERING COUPLING AT STEERING AND STEERING SPINDLE TUBE | ||
| HEX. -HD.SOCKET SCREW | ||
| M 8X35 DIN 912-8 G FOR STEERING COUPLING AT STEERING AND STEERING SPINDLE TUBE | ||
| 035 | LOCK WASHER | |
| B 8 DIN 127 FOR STEERING COUPLING AT STEERING AND STEERING SPINDLE TUBE | ||
| 036 | HEX. NUT | |
| M 8 DIN 934-5 S FOR STEERING COUPLING AT STEERING AND STEERING SPINDLE TUBE | ||
| HEX. NUT | ||
| M 8 DIN 936-5 S FOR STEERING COUPLING AT STEERING AND STEERING SPINDLE TUBE | ||
| 037 | LOCK WASHER | |
| B 10 DIN 127 FOR STEERING AT FRONT AXLE SUPPORT | ||
| 038 | HEX. -HD. COLLAR SCREW | |
| M 10X28 N 170A-8 G FOR STEERING AT FRONT AXLE SUPPORT | ||
| 039 | A 1804600326 | JACKET TUBE, COMPLETE |
| A 1214602516 | JACKET TUBE, COMPLETE | |
| 040 | A 1204270115 | CATCH |
| 041 | A 1209930020 | RELEASE SPRING |
| 042 | RIVET PIN | |
| A 6 H11X20 DIN 7341 | ||
| 043 | A 1204604009 | STEERING SPINDLE TUBE |
| A 1204604609 | STEERING SPINDLE TUBE | |
| A 1214602409 | STEERING SPINDLE TUBE | |
| 044 | A 1204620260 | SEALING RING |
| FOR BEARING BODY, TOP | ||
| 045 | GROOVED BEARING | |
| 6004 X DIN 625 | ||
| 046 | A 1805401809 | CABLE HARNESS |
| 047 | A 1209900077 | THREADED PIN |
| FOR JACKET TUBE | ||
| 048 | A 1209930801 | PRESSURE SPRING |
| FOR STEERING SPINDLE, TOP | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING WHEEL | ||
| 049 | A 1204640401 | STEERING WHEEL, BLACK |
| A 1204640501 | STEERING WHEEL, | |
| IVORY COLOURED EXPORT, SPECIAL REQUEST | ||
| 050 | KEY | |
| A 6X4X20 DIN 6885 FOR STEERING WHEEL AT STEERING SPINDLE | ||
| 051 | A 1209940312 | LOCKING PLATE |
| FOR STEERING WHEEL AT STEERING SPINDLE | ||
| 052 | HEX. NUT | |
| M 18X1,5 DIN 936-5 S FOR STEERING WHEEL AT STEERING SPINDLE | ||
| 053 | A 1204600245 | CONTACT PLATE |
| 054 | A 1814640071 | CLAMPING SCREW |
| 055 | CYLINDRICAL SCREW | |
| AM 4X25 DIN 84-4 S FOR CONTACT PLATE AT STEERING WHEEL | ||
| 056 | CYLINDRICAL SCREW | |
| AM 4X15 DIN 84-4 S FOR CONTACT PLATE AT STEERING WHEEL | ||
| 057 | LOCK WASHER | |
| 4 N 55 A FOR CONTACT PLATE AT STEERING WHEEL | ||
| 058 | A 1804600040 | SIGNAL RING |
| 059 | A 0004640039 | LOCKING LEVER |
| 060 | A 0004640090 | RELEASE SPRING |
| 061 | A 1824640062 | WASHER |
| FOR SIGNAL RING OPTIONAL | ||
| A 1804640062 | WASHER | |
| FOR SIGNAL RING OPTIONAL | ||
| 062 | A 1814640028 | CONTACT WASHER |
| 063 | A 1814640186 | CONTACT PLATE |
| 064 | A 1534640023 | INSULATING PLATE |
| 065 | A 1869933701 | PRESSURE SPRING |
| 066 | A 1534640072 | ADJUSTING NUT |
| FOR CONTACT SCREW | ||
| 067 | COTTER PIN | |
| 1 X 18 DIN 94 FOR ADJUSTING NUT AT CONTACT SCREW | ||
| 068 | A 1839970540 | RUBBER PLATE |
| FOR TRADE MARK | ||
| 070 | A 1874600144 | TRADE MARK, BLACK |
| AT STEERING WHEEL | ||
| A 1874600244 | TRADE MARK, | |
| IVORY COLOURED AT STEERING WHEEL SPECIAL REQUEST | ||
| 071 | HEX. -HD. SCREW | |
| M 6X15 DIN 933-8 G FOR JACKET TUBE AT FRONT WALL | ||
| 072 | A 0009902791 | CAGE CLAMP |
| WITH SPRING, STOP, NUT FOR JACKET TUBE AT FRONT WALL | ||
| 073 | WASHER | |
| A 6,4 DIN 9021 FOR JACKET TUBE AT FRONT WALL | ||
| 73a | A 1205450176 | WASHER |
| FOR JACKET TUBE AT FRONT WALL | ||
| 074 | A 1214600237 | STEERING COLUMN |
| BRACKET, WITH LOCK | ||
| A 1204601237 | STEERING COLUMN | |
| BRACKET, WITH LOCK | ||
| 075 | A 0004620032 | KEY |
| WHEN ORDERING STATE NUMBER OF KEY | ||
| 076 | A 0004620293 | IGNITION BREAKER |
| 077 | A 0004620323 | CONTACT CAP |
| A 0004620175 | CONTACT LIFTER | |
| 078 | A 0004620174 | CONTACT LIFTER |
| 079 | A 0004620270 | STUD |
| FOR FIXING CONTACT | ||
| 080 | A 0004620072 | ROUND NUT |
| FOR FIXING CONTACT CAP | ||
| BULB | ||
| M 12 V 3 W DIN 72601 FOR STEERING LOCK | ||
| 082 | A 1204600265 | STRAP |
| FOR STEERING COLUMN BRACKET | ||
| 083 | WASHER | |
| 8,4 DIN 433 FOR STEERING COLUMN BRACKET AT SWITCHBOARD | ||
| 084 | TOOTHED WASHER | |
| A 8,4 DIN 6797 FOR STEERING COLUMN BRACKET AT SWITCHBOARD | ||
| 085 | HEX. NUT | |
| M 8 DIN 936-5 S FOR STEERING COLUMN BRACKET AT SWITCHBOARD | ||
| 086 | HEX. NUT | |
| M 8 DIN 936-5 S FOR STEERING COLUMN BRACKET AT JACKET TUBE | ||
| 087 | WASHER | |
| 8,4 DIN 125 FOR STEERING COLUMN BRACKET AT JACKET TUBE | ||
| 088 | A 1204602438 | PIVOT MOUNTING |
| WITH PRESSED-IN SEALING RING FOR INTERMEDIATE STEERING LEVER | ||
| 88a | A 1204602538 | PIVOT MOUNTING |
| WITH PRESSED-IN SEALING RING FOR INTERMEDIATE STEERING LEVER | ||
| 089 | A 1204630250 | BUSHING |
| 89a | SEALING RING | |
| A 18X30X7 DIN 6503 | ||
| 090 | LOCK WASHER | |
| B 10 DIN 127 FOR PIVOT MOUNTING AT FRONT AXLE SUPPORT | ||
| 091 | HEX. -HD. SCREW | |
| M 10X15 DIN 933-8 G FOR PIVOT MOUNTING AT FRONT AXLE SUPPORT | ||
| 092 | A 1204601019 | INTERMEDIATE STEERING |
| 92a | A 1204601119 | INTERMEDIATE STEERING |
| 094 | A 1204630233 | LOCKING COVER |
| FOR INTERMEDIATE STEERING LEVER AT PIVOT MOUNTING | ||
| 095 | A 1819940010 | LOCKING PLATE |
| FOR INTERMEDIATE STEERING LEVER AT PIVOT MOUNTING | ||
| 096 | GREASE FITTING | |
| A 8 DIN 71412 | ||
| A 1214600205 | PART NAME MISSING | |
| A 1209970088 | GREASE FITTING | |
| UP TO CHASSIS 8502432 | ||
| A 1203380057 | SEALING COVER | |
| FOR DRAG LINK AT PITMAN ARM AND INTERMEDIATE STEERING LEVER UP TO CHASSIS 8502432 | ||
| A 1203380197 | BOOT | |
| FOR DRAG LINK AT PITMAN ARM AND INTERMEDIATE STEERING LEVER UP TO CHASSIS 8502432 | ||
| A 1209900155 | CASTLE NUT | |
| FOR DRAG LINK AT PITMAN ARM AND INTERMEDIATE STEERING LEVER UP TO CHASSIS 8502432 | ||
| 100 | A 1204601305 | DRAG LINK WITH BALL PIN |
| A 1803380297 | SLEEVE | |
| 106 | A 1803380397 | SLEEVE |
| 107 | A 0019971140 | CLAMPING RING |
| FROM CHASSIS 8502433 | ||
| 108 | A 1209900155 | CASTLE NUT |
| FOR DRAG LINK AT PITMAN ARM AND INTERMEDIATE STEERING LEVER | ||
| 109 | COTTER PIN | |
| 2 X 25 DIN 94 FOR DRAG LINK AT PITMAN ARM AND INTERMEDIATE STEERING LEVER | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| STEERING SHOCK ABSORBER | ||
| A 0004630732 | STEERING SHOCK | |
| ABSORBER WITH SLEEVE | ||
| 110 | A 0004600366 | STEERING SHOCK |
| ABSORBER WITH SLEEVE | ||
| 111 | A 1214630096 | SLEEVE |
| 112 | A 1219930410 | TENSION SPRING |
| FOR SLEEVE | ||
| 113 | A 1209901201 | HEX. -HD. SCREW |
| FOR STEERING SHOCK ABSORBER AT DRAG LINK | ||
| 114 | LOCK WASHER | |
| B 10 DIN 127 FOR STEERING SHOCK ABSORBER AT DRAG LINK | ||
| 115 | HEX. NUT | |
| M 10X1 DIN 936-5 S FOR STEERING SHOCK ABSORBER AT DRAG LINK | ||
| 116 | A 1209900940 | WASHER |
| FOR STEERING SHOCK ABSORBER AT SIDE MEMBER HALF | ||
| 117 | LOCK WASHER | |
| B 10 DIN 127 FOR STEERING SHOCK ABSORBER AT SIDE MEMBER HALF | ||
| 118 | HEX. NUT | |
| M 10X1 DIN 936-5 S FOR STEERING SHOCK ABSORBER AT SIDE MEMBER HALF |
