Transporto priemonė: TYP 190D BM 121.110 - .111; VIN numerio dalis: 121111

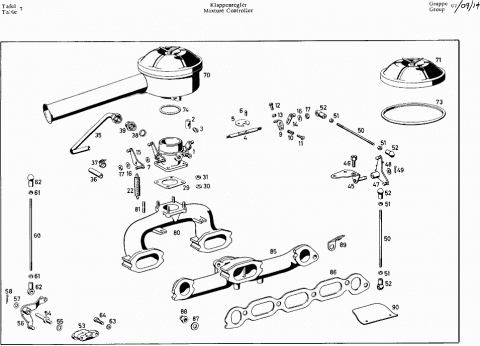

Grupė: 09 SUCTION NOISE DAMPER - 007 MIXTURE CONTROLLER
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| SUCTION NOISE DAMPER | ||
| A 0010946602 | SUCTION NOISE | |
| DAMPER WITH WET TYPE AIR FILTER | ||
| 070 | A 0020941102 | SUCTION NOISE |
| DAMPER WITH WET TYPE AIR FILTER | ||
| A 0000942404 | COVER WITH FILTER ELEMENT | |
| 071 | A 0000945504 | COVER WITH FILTER ELEMENT |
| 073 | A 0000940879 | GASKET |
| BETWEEN COVER AND LOWER PART | ||
| 074 | A 0000940979 | RUBBER SEALING RING |
| BETWEEN FILTER ELEMENT AND SUCTION PIPE | ||
| A 0000940571 | REPLACED BY | |
| M 8X25 DIN 912-8 G | ||
| HEX. -HD. SOCKET SCREW | ||
| M 8 X 25 DIN 912-8 G | ||
| SQUARE NUT | ||
| M 8 DIN 557 | ||
| A 0020941702 | SUCTION NOISE | |
| DAMPER WITH OIL BATH AIR FILTER EXPORT, SPECIAL REQUEST | ||
| A 0000945604 | COVER WITH FILTER ELEMENT | |
| EXPORT, SPECIAL REQUEST | ||
| A 0000942480 | GASKET | |
| BETWEEN COVER AND FILTER ELEMENT EXPORT, SPECIAL REQUEST | ||
| A 0000941779 | GASKET, 840 MM LONG | |
| BETWEEN COVER AND LOWER PART EXPORT, SPECIAL REQUEST | ||
| A 0000940571 | HEX. -HD. SCREW | |
| EXPORT, SPECIAL REQUEST |
