Transporto priemonė: TYP 220SE BM 128.010,.011,.030,.037; VIN numerio dalis: 128010

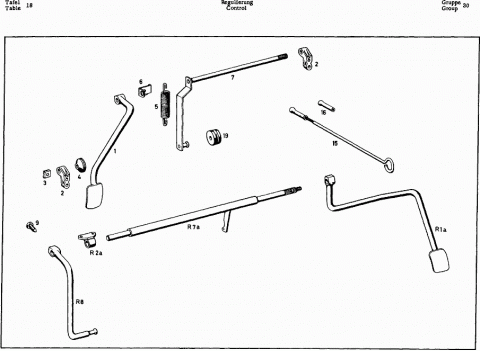

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| ACCELERATOR PEDAL | ||
| 001 | A 1803011001 | ACCELERATOR PEDAL |
| 01a | A 1283010001 | ACCELERATOR PEDAL |
| 002 | A 1803010018 | MOUNTING |
| FOR ACCELERATOR PEDAL | ||
| A 1213010018 | MOUNTING | |
| FOR ACCELERATOR PEDAL | ||
| 02a | A 1103010018 | MOUNTING |
| FOR ACCELERATOR PEDAL | ||
| HEX.-HD.SCREW | ||
| M 6X20 DIN 931-8G FOR MOUNTING TO TOEBOARD OR CROSS BRACE, RESP. | ||
| SPRING WASHER | ||
| B 6 DIN 137 FOR MOUNTING TO TOEBOARD OR CROSS BRACE, RESP. | ||
| 003 | A 0009902791 | CLAMP WITH |
| SPRING STOP NUT FOR MOUNTING TO TOEBOARD OR CROSS BRACE, RESP. | ||
| A 0009903991 | CAGE NUT | |
| FOR MOUNTING TO TOEBOARD OR CROSS BRACE, RESP. | ||
| 004 | A 1839970081 | GROMMET |
| FOR ACCELERATOR PEDAL THROUGH FRONT WALL | ||
| 005 | A 1809931710 | RELEASE SPRING |
| FOR ACCELERATOR PEDAL | ||
| A 1869931810 | RELEASE SPRING | |
| FOR ACCELERATOR PEDAL | ||
| 006 | A 1803020014 | LEVER |
| FOR RELEASE SPRING, CONTROL | ||
| A 1283010062 | RETAINING RING | |
| FOR CONTROL LEVER THROUGH TOEBOARD | ||
| A 1202910188 | BOOT | |
| FOR CONTROL LEVER THROUGH TOEBOARD | ||
| 007 | A 1283000220 | CONTROL SHAFT |
| 07a | A 1283000320 | CONTROL SHAFT |
| 008 | A 1283010120 | CONTROL LEVER |
| 009 | A 1809900017 | FIXING BOLT |
| FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP., TO CONTROL SHAFT | ||
| HEX. NUT | ||
| M 6 DIN 934-5 S FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP., TO CONTROL SHAFT | ||
| HEX. NUT | ||
| M 8 DIN 934-5 S FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP., TO CONTROL SHAFT | ||
| LOCKING PLATE | ||
| 7 DIN 6799 FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP. TO CONTROL SHAFT | ||
| LOCKING RING | ||
| 12X1 DIN 471 FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP. TO CONTROL SHAFT | ||
| SPRING WASHER | ||
| B 8 DIN 137 FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP. TO CONTROL SHAFT | ||
| LOCK RING | ||
| G 12X1,2 N 55 E FOR ACCELERATOR PEDAL OR CONTROL LEVER, RESP. TO CONTROL SHAFT WAS NOT INSTALLED | ||
| 015 | A 1283010215 | PRESSURE ROD |
| 016 | A 1273000086 | BALL SOCKET |
| WITH SNAP RING | ||
| SNAP RING | ||
| R 8 DIN 71805 | ||
| HEX. NUT | ||
| M 5 DIN 934-5 S | ||
| 019 | A 1803010097 | DAMPER RING |
| FOR PULL ROD TO CONTROL LEVER |
