Transporto priemonė: TYP 300SE BM 112.014,015; VIN numerio dalis: 112014

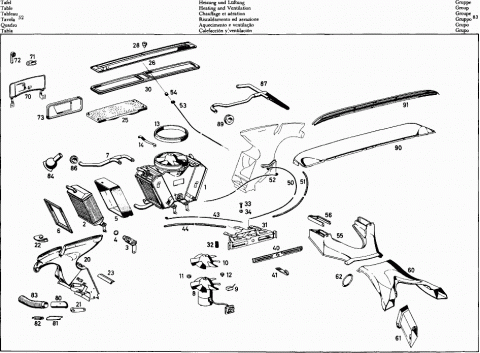

Grupė: 83 HEATING AND VENTILATION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| HEATING AND VENTILATION | ||
| 001 | A 1108300262 | HEATER BOX |
| 002 | A 0008350101 | HEAT EXCHANGER, LEFT |
| A 0008350201 | HEAT EXCHANGER, RIGHT | |
| 003 | A 0008350320 | CONTROL VALVE, LEFT |
| A 0008350420 | CONTROL VALVE, RIGHT | |
| 004 | A 0008350098 | O-RING |
| 005 | A 0008350023 | WEATHERSTRIP |
| 006 | A 0008350123 | WEATHERSTRIP |
| 007 | A 0008350015 | DISTRIBUTOR PIPE |
| A 0008350615 | DISTRIBUTOR PIPE | |
| N 900271015069 | RUBBER HOSE, | |
| 1.000-MM LONG ORDER BY THE METER FROM HEAT EXCHANGER AT FEED LINE AND RETOUR LINE | ||
| A 0009977190 | HOSE CLAMP | |
| FROM HEAT EXCHANGER AT FEED LINE AND RETOUR LINE | ||
| 008 | A 0008350902 | BLOWER |
| 009 | A 0008350575 | CARBON BURSH |
| 010 | A 0008350785 | IMPELLER |
| 011 | A 0009976181 | GROMMET |
| A 0009873040 | PART NAME MISSING | |
| 012 | A 0009871840 | BUFFER KNOB |
| N 000137005201 | SPRING WASHER | |
| N 000934005004 | HEX. NUT | |
| 013 | A 0008350223 | RUBBER RING |
| 014 | A 0008350034 | CLIP |
| A 0009976181 | GROMMET | |
| FOR BLOWER CABLE PASSAGE | ||
| N 900161006101 | HEX. HEAD SCREW | |
| HEATER BOX TO WATER TANK AND FRONT PANEL | ||
| N 009021006103 | WASHER | |
| HEATER BOX TO WATER TANK AND FRONT PANEL | ||
| N 000127006203 | LOCK WASHER | |
| HEATER BOX TO WATER TANK AND FRONT PANEL | ||
| A 0009905991 | CHAMPION BLIND NUT | |
| HEATER BOX TO WATER TANK AND FRONT PANEL | ||
| N 000933006090 | HEX. HEAD SCREW | |
| HEATER BOX TO WATER TANK AND FRONT PANEL | ||
| N 900055006001 | SPRING WASHER | |
| HEATER BOX TO WATER TANK AND FRONT PANEL | ||
| 020 | A 1108300719 | DEFROSTER NOZZLE, LEFT |
| A 1108300819 | DEFROSTER NOZZLE, RIGHT | |
| A 1108301019 | DEFROSTER NOZZLE, RIGHT | |
| A 1108310433 | DOUBLE LEVER, RIGHT | |
| 021 | A 1108310733 | LEVER, LEFT |
| N 007981004226 | LENS HEAD | |
| SHEET METAL SCREW LEVER TO FRESH-AIR FLAP | ||
| N 009021005102 | WASHER | |
| LEVER TO FRESH-AIR FLAP | ||
| 022 | A 1108310020 | PAD |
| 023 | A 0009874651 | SEAL, 115-MM |
| LONG, ORDER BY THE METER | ||
| A 1108300618 | AIR CLEANER | |
| 025 | A 1108300518 | AIR CLEANER |
| 026 | A 1108300743 | FRESH-AIR FLAP |
| 028 | A 0009871840 | BUFFER KNOB |
| N 000933006085 | HEX. HEAD SCREW | |
| FRESH-AIR FLAP TO HINGE | ||
| N 006797006243 | TOOTHED WASHER | |
| FRESH-AIR FLAP TO HINGE | ||
| A 1108310298 | WEATHERSTRIP | |
| 030 | A 1108310398 | WEATHERSTRIP |
| 031 | A 1108301033 | OPERATING LEVER |
| 032 | A 101868880034 | PRESSURE SPRING |
| 033 | A 121368310089 | ATTACHING SCREW |
| 034 | A 1360720050 | BUSHING |
| N 000433004303 | WASHER | |
| N 000127004203 | LOCK WASHER | |
| N 000934004004 | HEX. NUT | |
| 040 | A 1108300089 | ESCUTCHEON |
| A 0009900148 | CUP WASHER | |
| ESCUTCHEON AND ASH-TRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| N 000934006006 | HEX. NUT | |
| ESCUTCHEON AND ASH-TRAY HOUSING TO INSTRUMENT PANEL COVERING | ||
| 041 | A 1118330340 | HANDLE |
| 043 | A 1108330331 | WIRE CABLE, 610 MM LONG |
| A 0009880172 | CABLE CASING, | |
| 290-MM LONG, ORDER BY THE METER | ||
| 044 | A 0009880672 | CABLE CASING, |
| 290-MM LONG, ORDER BY THE METER | ||
| A 1109950001 | MOUNTING CLAMP | |
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE MOUNTING | ||
| A 0019886878 | MOUNTING CLIP | |
| WIRE CABLE MOUNTING | ||
| A 1369950601 | MOUNTING CLAMP | |
| WIRE CABLE MOUNTING | ||
| N 000933004016 | HEX. HEAD SCREW | |
| WIRE CABLE MOUNTING | ||
| N 000933004020 | HEX. HEAD SCREW | |
| WIRE CABLE MOUNTING | ||
| N 000127004203 | LOCK WASHER | |
| WIRE CABLE MOUNTING | ||
| N 000934004004 | HEX. NUT | |
| WIRE CABLE MOUNTING | ||
| 050 | A 1108330331 | WIRE CABLE, 610 MM LONG |
| A 0009880172 | CABLE CASING, | |
| 290-MM LONG, ORDER BY THE METER | ||
| 051 | A 0009880672 | CABLE CASING, |
| 290-MM LONG, ORDER BY THE METER | ||
| 052 | A 1108330331 | WIRE CABLE, 610 MM LONG |
| A 0009880172 | CABLE CASING, 465 MM LONG | |
| ORDER BY THE METER | ||
| A 0009880672 | CABLE CASING, 465 MM LONG | |
| ORDER BY THE METER | ||
| A 1109950001 | MOUNTING CLAMP | |
| A 121368310089 | MOUNTING SCREW | |
| WIRE CABLE TO CONTROL LOCK | ||
| A 1360720050 | BUSHING | |
| WIRE CABLE TO CONTROL LOCK | ||
| N 000433004303 | WASHER | |
| WIRE CABLE TO CONTROL LOCK | ||
| N 000127004203 | LOCK WASHER | |
| WIRE CABLE TO CONTROL LOCK | ||
| N 000934004004 | HEX. NUT | |
| WIRE CABLE TO CONTROL LOCK | ||
| A 1109950001 | MOUNTING CLAMP | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| N 007981003241 | LENS HEAD | |
| SHEET METAL SCREW WIRE CABLE TO DEFROSTER NOZZLE | ||
| N 007981003228 | LENS HEAD | |
| SHEET METAL SCREW WIRE CABLE TO DEFROSTER NOZZLE | ||
| N 000127004203 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| A 121368310089 | ATTACHING SCREW | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| A 121368310090 | BUSHING | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| N 000127004203 | LOCK WASHER | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| N 000934004004 | HEX. NUT | |
| WIRE CABLE TO DEFROSTER NOZZLE | ||
| 053 | A 401218330431 | WIRE CABLE, 300 MM LONG |
| A 0009880172 | CABLE CASING, | |
| 230-MM LONG, ORDER BY THE METER | ||
| A 0009880672 | CABLE CASING, | |
| 230-MM LONG, ORDER BY THE METER | ||
| 054 | A 1108330091 | SEAL CAP |
| A 0009978481 | GROMMET | |
| WIRE CABLE THROUGH WATER TANK | ||
| A 1109950001 | MOUNTING CLAMP | |
| WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| N 000933004016 | HEX. HEAD SCREW | |
| WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| N 000127004203 | LOCK WASHER | |
| WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| A 1109950001 | MOUNTING CLAMP | |
| WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| N 007981003228 | LENS HEAD | |
| SHEET METAL SCREW WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| N 000127004203 | LOCK WASHER | |
| WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| N 006799004001 | LOCK PLATE | |
| WIRE CABLE TO SUPPORT BRACKET AND WATER TANK COVERING | ||
| 055 | A 1108300024 | CONNECTION DUCT |
| 056 | A 1108310199 | SEAL, LEFT |
| A 1108310299 | SEAL, RIGHT | |
| N 000933006077 | HEX. HEAD SCREW | |
| CONNECTION DUCT TO DEFROSTER NOZZLE | ||
| N 009021006103 | WASHER | |
| CONNECTION DUCT TO DEFROSTER NOZZLE | ||
| A 0009894585 | SEAL ORDER BY THE METER | |
| MOLTOPREN | ||
| A 0009830098 | SEAL ORDER BY THE METER | |
| MOLTOPREN | ||
| 060 | A 1108300045 | HEATING DUCT |
| 061 | A 1108310345 | DUCT, LEFT |
| A 1108310445 | DUCT, RIGHT | |
| 062 | A 1119870141 | RUBBER RING |
| N 007981004219 | LENS HEAD | |
| SHEET METAL SCREW HEATING DUCT TO TUNNEL | ||
| N 007981004222 | LENS HEAD | |
| SHEET METAL SCREW HEATING DUCT TO TUNNEL | ||
| A 0009841755 | WASHER | |
| HEATING DUCT TO TUNNEL | ||
| 070 | A 1108300543 | ENGINE COMPARTMENT FLAP |
| 071 | A 1108310058 | LATCH |
| 072 | A 1108330645 | HANDLE |
| N 007985006126 | LENS HEAD SCREW | |
| HANDLE AND LATCH TO ENGINE COMPARTMENT FLAP | ||
| A 0009900148 | RETAINER | |
| HANDLE AND LATCH TO ENGINE COMPARTMENT FLAP | ||
| N 900055012001 | SPRING WASHER | |
| HANDLE AND LATCH TO ENGINE COMPARTMENT FLAP | ||
| 073 | A 1108310198 | WEATHERSTRIP |
| N 000933006016 | HEX. HEAD SCREW | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| N 000127006203 | LOCK WASHER | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| A 0009902291 | CAGE CLIP WITH NUT | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| A 0009902791 | CAGE CLIP WITH NUT | |
| ENGINE COMPARTMENT FLAP TO FRONT PANEL | ||
| 080 | A 1118300154 | ANNULAR NOZZLE, LEFT |
| A 1118300254 | ANNULAR NOZZLE, RIGHT | |
| 081 | A 101208310032 | WIRE CLIP |
| 082 | A 1209931610 | TENSION SPRING |
| 083 | A 1108310188 | HOSE |
| A 0029975282 | BALL VALVE | |
| 084 | A 1108310132 | BALL VALVE |
| N 900271018036 | RUBBER HOSE, | |
| 1.000-MM LONG ORDER BY THE METER FOR FEED LINE | ||
| N 900263005000 | HOSE STRAP, | |
| ORDER BY THE METER FOR FEED LINE | ||
| N 900262005100 | HOSE CLAMP | |
| FOR FEED LINE | ||
| A 1109970481 | GROMMET | |
| 086 | A 1109972181 | GROMMET |
| A 1109971081 | GROMMET | |
| 087 | A 1128300015 | RETURN LINE |
| N 900271018036 | RUBBER HOSE | |
| ORDER BY THE METER FOR RETURN LINE TO ENGINE | ||
| N 900271020018 | RUBBER HOSE | |
| ORDER BY THE METER FOR RETURN LINE TO ENGINE | ||
| N 900263005000 | HOSE STRAP | |
| ORDER BY THE METER FOR RETURN LINE TO ENGINE | ||
| N 900262005100 | HOSE CLAMP | |
| FOR RETURN LINE TO ENGINE | ||
| N 900288021003 | HOSE CLAMP | |
| CONNECTING HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| A 0009977190 | HOSE CLAMP | |
| CONNECTING HOSE TO HEAT EXCHANGER PIPE SOCKET | ||
| 089 | A 1869970781 | GROMMET |
| 090 | A 1108360023 | VENT CAP |
| 091 | A 1118300218 | GRILLE |
| N 007982003215 | COUNTERSUNK SHEET | |
| METAL SCREW VENT CAP TO COWL | ||
| N 007981003203 | LENS HEAD | |
| SHEET METAL SCREW VENT CAP TO COWL | ||
| N 007983004202 | LENS HEAD | |
| COUNTERSUNK SHEET METAL SCREW GRILLE TO CENTRAL PIECE | ||
| A 0009940445 | CLIP NUT | |
| GRILLE TO CENTRAL PIECE | ||
| A 0009943345 | CLIP NUT | |
| GRILLE TO CENTRAL PIECE | ||
| A 0009894585 | TEROSTATE CORD | |
| ORDER BY THE METER GRILLE TO CENTRAL PIECE |
