Transporto priemonė: 230 GE; VIN numerio dalis: 461229

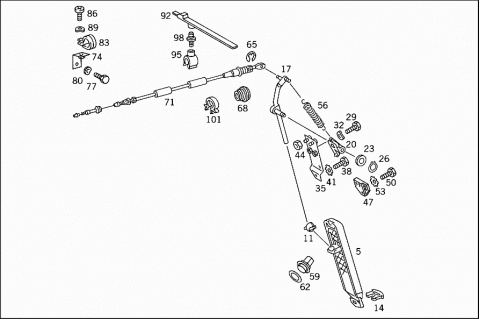

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| A 1233010082 | PAD | |
| 011 | A 1233010022 | JOINT |
| 014 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 017 | A 4633000025 | LEVER |
| 017 | A 4613000125 | LEVER |
| 020 | A 2013010218 | BEARING |
| 023 | N 000988013100 | FITTED WASHER |
| LEVER TO BEARING BRACKET | ||
| S 13X19 | ||
| 026 | N 000471012001 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 12X1 | ||
| 029 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 029 | N 304017006020 | SCREW |
| M 6X20 | ||
| 029 | N 000933006122 | SCREW |
| Repalced by: N 304017006034 | ||
| 029 | N 304017006034 | SCREW |
| M 6X10 | ||
| 032 | N 000137006204 | SPRING WASHER |
| 035 | A 4613000040 | BRACKET |
| 038 | N 304017006018 | SCREW |
| BRACKET TO FIRE WALL | ||
| M 6X12 | ||
| 041 | N 006798006103 | SERRATED WASHER |
| BRACKET TO FIRE WALL | ||
| 044 | N 000934006007 | NUT |
| BRACKET TO FIRE WALL | ||
| 047 | A 4613010084 | SHIM |
| 050 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 050 | N 304017006020 | SCREW |
| SHIM TO FLOOR | ||
| M 6X20 | ||
| 053 | N 006798006103 | SERRATED WASHER |
| SHIM TO FLOOR | ||
| 056 | A 4609930010 | SPRING |
| 056 | A 4639930310 | SPRING |
| 059 | A 1153010241 | STOP |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 062 | A 1159970640 | SEAL RING |
| 065 | N 006799005002 | LOCK PLATE |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| Repalced by: N 006799005004 | ||
| 065 | N 006799005004 | CIRCLIP |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| 068 | A 2013010285 | RUBBER BUFFER |
| BOWDEN CABLE TO FIRE WALL | ||
| 071 | A 4633001930 | WIRE CABLE |
| 071 | A 4633002830 | WIRE CABLE |
| 071 | A 4633002030 | WIRE CABLE |
| 071 | A 4633002930 | WIRE CABLE |
| 074 | A 4603000340 | BRACKET |
| BOWDEN CABLE TO ENGINE | ||
| 077 | N 304017006018 | SCREW |
| BRACKET TO ENGINE | ||
| M 6X12 | ||
| 080 | N 000137006204 | SPRING WASHER |
| BRACKET TO ENGINE | ||
| 083 | N 916016006200 | CLAMP |
| BOWDEN CABLE TO BRACKET | ||
| 6/12 | ||
| 086 | N 007985005125 | SCREW |
| Repalced by: N 007985005157 | ||
| 086 | N 007985005157 | SCREW |
| M 5X10 | ||
| 089 | N 000137005203 | SPRING WASHER |
| 092 | A 1169970690 | LOOM TIE |
| BOWDEN CABLE TO BRACKET | ||
| 095 | A 0009955365 | CLAMP |
| BOWDEN CABLE TO BRACKET | ||
| 098 | A 0002760028 | CONNECTOR |
| BOWDEN CABLE TO BRACKET | ||
| 101 | A 0009955644 | CLAMP |
| Repalced by: A 0009955244 | ||
| 101 | A 0009955244 | CLAMP |
| WIRE CABLE TO VENTILATION CASE | ||
