Transporto priemonė: 230 GE; VIN numerio dalis: 461267

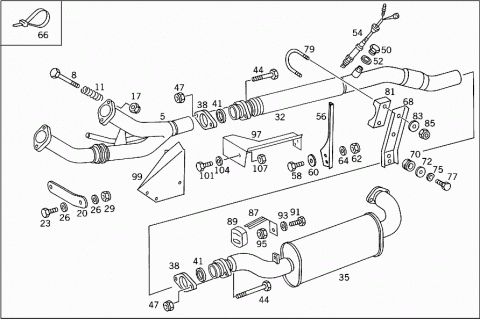

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4604903919 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 008 | N 304014008009 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8X100 | ||
| 011 | A 1169937801 | SPRING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3019910340 | SPACER TUBE | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 017 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M8-CU | ||
| 020 | A 4604928341 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 023 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 023 | N 304017008021 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M8X20 | ||
| 026 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 026 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE | ||
| 029 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 029 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| M8-CU | ||
| 032 | A 4604903619 | EXHAUST PIPE |
| CENTRAL | ||
| 035 | A 4604904101 | EXHAUST MUFFLER |
| (PRE-MUFFLER) | ||
| 035 | A 4604900514 | CATALYST |
| 035 | A 4604900514 | CATALYST |
| 035 | A 4604904001 | EXHAUST MUFFLER |
| (PRE-MUFFLER) | ||
| 035 | A 4604900414 | CATALYST |
| 035 | A 4604900414 | CATALYST |
| 035 | A 4614900014 | CATALYST |
| Repalced by: A 4614900114 | ||
| 035 | A 4614900114 | CATALYST |
| FOR FIRE-TRUCKS | ||
| 038 | A 1264920845 | FLANGE |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 038 | A 1264920845 | FLANGE |
| EXHAUST PIPE TO MUFFLER | ||
| 041 | A 1269970041 | SEAL RING |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 041 | A 1269970041 | SEAL RING |
| EXHAUST PIPE TO MUFFLER | ||
| 044 | N 000931008237 | SCREW |
| EXHAUST PIPE TO EXHAUST PIPE | ||
| 044 | N 000931008237 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M8X55 | ||
| 047 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 047 | A 1201420072 | HEXAGON NUT |
| M8-CU | ||
| 050 | N 007604018107 | SCREW PLUG |
| EXHAUST PIPE | ||
| M18X1.5 | ||
| 052 | N 007603018101 | SEAL RING |
| 18X22 CU | ||
| 054 | A 0095424317 | SENDER UNIT |
| LAMBDA PROBE | ||
| 054 | A 0095424317 | SENDER UNIT |
| LAMBDA PROBE | ||
| 056 | A 4615420540 | BRACKET |
| LAMBDA PROBE | ||
| 056 | A 4615420540 | BRACKET |
| LAMBDA PROBE | ||
| 058 | N 304017006016 | SCREW |
| LAMBDA PROBE | ||
| M6X16 | ||
| 060 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 060 | N 009021006208 | WASHER |
| LAMBDA PROBE | ||
| 062 | N 000934006007 | NUT |
| LAMBDA PROBE | ||
| M6 | ||
| 062 | N 000934006007 | NUT |
| LAMBDA PROBE | ||
| M6 | ||
| 064 | N 000125006421 | WASHER |
| LAMBDA PROBE | ||
| 066 | A 0029972290 | LOOM TIE |
| Repalced by: A 0019978390 | ||
| 066 | A 0019978390 | LOOM TIE |
| LAMBDA PROBE | ||
| 068 | A 4604926941 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 070 | A 0009972881 | GROMMET |
| BRACKET TO FRAME | ||
| 072 | A 4609910740 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 075 | N 000440009103 | WASHER |
| BRACKET TO FRAME | ||
| 077 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 077 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M8X25 | ||
| 079 | A 4604920327 | CLAMPING BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 081 | A 4604920226 | CLAMPING PIECE |
| EXHAUST PIPE TO BRACKET | ||
| 083 | N 000440009103 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 085 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 085 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO BRACKET | ||
| M8-CU | ||
| 087 | A 4604922841 | BRACKET |
| PRE-MUFFLER TO FRAME | ||
| 089 | A 4604920682 | DAMPING PAD |
| PRE-MUFFLER TO FRAME | ||
| 091 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 091 | N 304017008016 | SCREW |
| BRACKET TO PRE-MUFFLER | ||
| M8X16 | ||
| 093 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 093 | N 000125008443 | WASHER |
| BRACKET TO PRE-MUFFLER | ||
| 095 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 095 | A 1201420072 | HEXAGON NUT |
| BRACKET TO PRE-MUFFLER | ||
| 097 | A 4604902330 | PROTECTIVE PLATE |
| 099 | A 4604921030 | PROTECTIVE PLATE |
| 101 | N 000933006207 | SCREW |
| M 6X14 | ||
| 101 | N 304017006016 | SCREW |
| M 6X16 | ||
| 104 | N 000125006421 | WASHER |
| 107 | N 000934006007 | NUT |
| 110 | A 4604911101 | MUFFLER |
| 113 | A 4604902421 | EXHAUST PIPE |
| REAR | ||
| 116 | A 4604902321 | EXHAUST PIPE |
| Repalced by: A 4604902821 | ||
| 116 | A 4604902821 | EXHAUST PIPE |
| REAR | ||
| A 4604902621 | EXHAUST PIPE | |
| A 4604925030 | PROTECTIVE PLATE | |
| A 4604902130 | PROTECTIVE PLATE | |
| AT FRAME | ||
| 125 | N 916017060000 | CLAMP |
| Repalced by: N 000000000673 | ||
| 125 | N 000000000673 | CLAMP |
| 60-80 | ||
| 128 | A 2014920281 | SEAL RING |
| Repalced by: A 2024920281 | ||
| 128 | A 2024920281 | SEAL RING |
| PRE-MUFFLER TO MAIN MUFFLER | ||
| 131 | A 1269970041 | SEAL RING |
| EXHAUST PIPE TO MUFFLER | ||
| 134 | A 1264920845 | FLANGE |
| EXHAUST PIPE TO MUFFLER | ||
| 137 | N 000933008237 | SCREW |
| Repalced by: N 304017008030 | ||
| 137 | N 304017008030 | SCREW |
| Repalced by: N 910105008019 | ||
| 137 | N 910105008019 | SCREW |
| PRE-MUFFLER TO MAIN MUFFLER | ||
| 137 | N 000933008237 | SCREW |
| Repalced by: N 304017008030 | ||
| 137 | N 304017008030 | SCREW |
| Repalced by: N 910105008019 | ||
| 137 | N 910105008019 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 140 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 140 | A 1201420072 | HEXAGON NUT |
| M8-CU | ||
| 143 | A 4604923030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER TO FRAME | ||
| 146 | A 4609880411 | BUFFER |
| EXHAUST MUFFLER TO FRAME | ||
| 149 | A 4604920376 | WASHER |
| Repalced by: A 4634920176 | ||
| 149 | A 4634920176 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 152 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 152 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 155 | N 304032008006 | NUT |
| EXHAUST MUFFLER TO FRAME | ||
| 158 | A 4604901730 | PROTECTIVE PLATE |
| AT FRAME ABOVE MUFFLER | ||
| 158 | A 4604902230 | PROTECTIVE PLATE |
| AT FRAME ABOVE MUFFLER | ||
| 161 | N 304017006016 | SCREW |
| HEAT SHIELD TO FRAME | ||
| M 6X16 | ||
| 164 | N 000125006421 | WASHER |
| HEAT SHIELD TO FRAME | ||
| 167 | N 000934006007 | NUT |
| HEAT SHIELD TO FRAME | ||
| 170 | A 4604923641 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 173 | A 4604920241 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 176 | A 4604929141 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 179 | A 4604901740 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 182 | A 4604924441 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 185 | A 4604921941 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 188 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 188 | N 304017008016 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| 191 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 191 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE | ||
| 194 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 194 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| M8-CU | ||
| 197 | A 4604920682 | DAMPING PAD |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 200 | A 4609880411 | BUFFER |
| EXHAUST PIPE TO FRAME | ||
| 203 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 203 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 206 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
