Transporto priemonė: 230 G; VIN numerio dalis: 460231

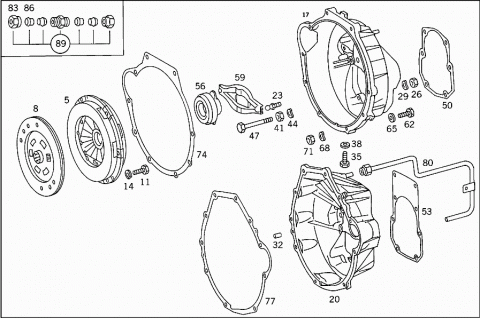

Grupė: 25 CLUTCH
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0032509104 | CLUTCH PRESSURE PLATE |
| 005 | A 0032507904 | CLUTCH PRESSURE PLATE |
| 005 | A 0032504704 | CLUTCH PRESSURE PLATE |
| 008 | A 0092502303 | CLUTCH DISC |
| 008 | A 0092502403 | CLUTCH DISC |
| 008 | A 0062508803 | CLUTCH DISC |
| 011 | N 000933008152 | SCREW |
| Repalced by: N 304017008027 | ||
| 011 | N 304017008027 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M8X30 | ||
| 011 | N 000912008012 | SCREW |
| CLUTCH TO FLYWHEEL | ||
| M8X22 | ||
| 014 | N 912004008102 | LOCK WASHER |
| CLUTCH TO FLYWHEEL | ||
| 017 | A 4602500005 | HOUSING |
| 017 | A 4602500205 | HOUSING |
| 020 | A 4602501505 | HOUSING |
| 023 | A 1159910115 | BALL PIVOT |
| 026 | N 000936010008 | NUT |
| BALL PIVOT TO BELL HOUSING | ||
| 029 | N 000137010201 | SPRING WASHER |
| BALL PIVOT TO BELL HOUSING | ||
| 032 | N 000007010102 | CYLINDRICAL PIN |
| 035 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 035 | N 304017008016 | SCREW |
| BELL HOUSING | ||
| M 8X16 | ||
| 038 | N 007603008403 | SEAL RING |
| BELL HOUSING | ||
| 041 | N 000934010014 | NUT |
| BELL HOUSING TO TRANSMISSION | ||
| 044 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO TRANSMISSION | ||
| 047 | N 000931010282 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| M 10X40 | ||
| 047 | A 0009900910 | SCREW |
| BELL HOUSING TO TRANSMISSION | ||
| 050 | A 4602511480 | GASKET |
| BELL HOUSING TO TRANSMISSION | ||
| 053 | A 4602511380 | GASKET |
| BELL HOUSING TO TRANSMISSION | ||
| 056 | A 0002505115 | RELEASE BEARING |
| 056 | A 0002505215 | RELEASE BEARING |
| 056 | A 0002506915 | RELEASE BEARING |
| 059 | A 1152900029 | RELEASE YOKE |
| 062 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 062 | N 304017010050 | SCREW |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| M 10X70 | ||
| 062 | N 000933010094 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M10X40 | ||
| 062 | N 000933010328 | SCREW |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| M10X45 | ||
| 065 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 065 | N 000125010532 | WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 065 | N 000125010518 | WASHER |
| Repalced by: N 000125010532 | ||
| 065 | N 000125010532 | WASHER |
| BELL HOUSING TO CYLINDER CRANKCASE | ||
| 068 | N 000137010201 | SPRING WASHER |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 071 | N 000934010014 | NUT |
| BELL HOUSING TO INTERMEDIATE FLANGE | ||
| 074 | A 4602510080 | GASKET |
| Repalced by: A 4602511280 | ||
| 074 | A 4602511280 | GASKET |
| 077 | A 4602511080 | GASKET |
| Repalced by: A 4602511780 | ||
| 077 | A 4602511780 | GASKET |
| 080 | A 3302500157 | BREATHER |
| 083 | N 915017006100 | UNION NUT |
| 086 | N 003861006007 | GLAND |
| 089 | A 0039979172 | FITTING |
| BELL HOUSING | ||
