Transporto priemonė: 250 GD; VIN numerio dalis: 461318

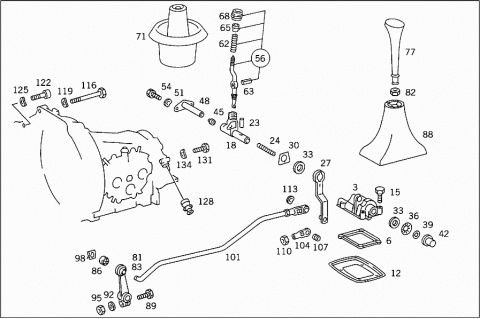

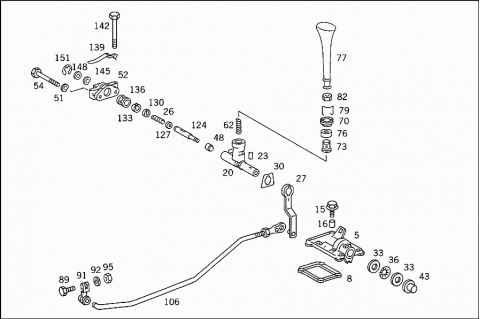

Grupė: 26 TRANSMISSION - 015 FLOOR SHIFT USED WITH MANUAL FOUR-SPEED TRANSMISSION
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| TRANSMISSION, SEE COMPONENT | ||
| 003 | A 1152673605 | BEARING |
| SHIFT LEVER | ||
| 005 | A 1232670405 | BEARING |
| SHIFT LEVER | ||
| 006 | A 1152670380 | GASKET |
| SHIFT CASE | ||
| 008 | A 4602670084 | SHIM |
| 012 | A 4606160616 | REINFORCEMENT |
| 015 | N 914130006104 | SCREW |
| SHIFT CASE | ||
| 016 | A 4609915440 | SPACER TUBE |
| 018 | A 1152607282 | SHIFTING TUBE |
| 020 | A 1232602482 | SHIFTING TUBE |
| 023 | A 1159910301 | PIN |
| 024 | A 1159939303 | SPRING |
| SHIFTING TUBE | ||
| 026 | A 1239936901 | SPRING |
| SHIFTING TUBE | ||
| 027 | A 1152604139 | SHIFT LEVER |
| REVERSE SPEED | ||
| 027 | A 4602600337 | LEVER |
| REVERSE SPEED | ||
| 027 | A 1152604339 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| 027 | A 1232601639 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| 027 | A 1152604239 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 027 | A 1232601739 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| 030 | A 1152670676 | WASHER |
| SHIFTING TUBE | ||
| 033 | A 1232670252 | SPACER WASHER |
| SHIFTING TUBE | ||
| 033 | A 1232670252 | SPACER WASHER |
| REVERSE SPEED | ||
| 036 | A 1239930626 | DISC SPRING |
| 039 | A 1159902640 | WASHER |
| 042 | A 1152670750 | BUSHING |
| SHIFTING TUBE | ||
| 043 | A 1232670850 | BUSHING |
| 045 | A 1152672250 | BUSHING |
| SHIFTING TUBE | ||
| 048 | A 1152600376 | GUIDE |
| 048 | A 1152600376 | GUIDE |
| 051 | N 000137006204 | SPRING WASHER |
| BEARING COVER | ||
| 052 | A 1232670205 | BEARING |
| 054 | N 000931006137 | SCREW |
| 054 | N 304017006018 | SCREW |
| BEARING COVER | ||
| 056 | A 1232602239 | SHIFT LEVER |
| 056 | A 1072670101 | SHIFT LEVER |
| 062 | A 1159939902 | SPRING |
| SHIFT LEVER | ||
| 062 | A 1239936601 | SPRING |
| 063 | N 007346005007 | CLAMPING SLEEVE |
| SHIFT LEVER | ||
| 065 | A 1152680550 | BUSHING |
| SHIFT LEVER | ||
| 068 | A 1152670114 | CAP |
| SHIFT LEVER | ||
| 070 | A 1232670022 | COVER |
| SHIFT LEVER | ||
| 071 | A 1232670097 | BOOT |
| OPENING DOWNWARDS | ||
| 154 MM | ||
| 071 | A 4602670297 | BOOT |
| OPENING DOWNWARDS | ||
| 180 MM | ||
| 073 | A 1232670550 | BUSHING |
| 076 | A 1232670650 | BUSHING |
| 077 | A 1262670410 | HANDLE |
| SHIFT LEVER | ||
| 077 | A 1152671310 | HANDLE |
| SHIFT LEVER | ||
| 079 | A 1239930325 | SPRING |
| 081 | A 1152607537 | LEVER |
| Repalced by: A 1152682530 | ||
| 081 | A 1152682530 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| 081 | A 1152682530 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 082 | N 070616010003 | NUT |
| GEARSHIFT LEVER KNOB TO GEARSHIFT LEVER | ||
| 083 | A 1232602437 | LEVER |
| Repalced by: A 1232670030 | ||
| 083 | A 1232670030 | LEVER |
| REVERSE SPEED | ||
| 086 | A 0009920510 | BUSHING |
| SHIFT LEVER TO TRANSMISSION | ||
| 088 | A 4602670097 | BOOT |
| SHIFT LEVER | ||
| 089 | N 914126006004 | SCREW |
| SHIFT LEVER TO TRANSMISSION | ||
| 091 | A 4602600137 | LEVER |
| 3RD AND 4TH SPEED | ||
| 092 | N 000125006421 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| Repalced by: N 000125006449 | ||
| 092 | N 000125006449 | WASHER |
| SHIFT LEVER TO TRANSMISSION | ||
| 095 | N 000934006007 | NUT |
| SHIFT LEVER TO TRANSMISSION | ||
| 098 | A 0009942960 | LOCK |
| Repalced by: A 0009944160 | ||
| 098 | A 0009944160 | PIN LOCK |
| 101 | A 4602600733 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 101 | A 4602604533 | SHIFTING ROD |
| Repalced by: A 4602674217 | ||
| 101 | A 4602674217 | ROD |
| 1ST AND 2ND SPEED | ||
| 101 | A 4602674317 | ROD |
| 1ST AND 2ND SPEED | ||
| 101 | A 4602600833 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 101 | A 4602606033 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 101 | A 4602604233 | SHIFTING ROD |
| Repalced by: A 4602673817 | ||
| 101 | A 4602673817 | ROD |
| 3RD AND 4TH SPEED | ||
| 101 | A 4602674417 | ROD |
| 3RD AND 4TH SPEED | ||
| 101 | A 4602601033 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 101 | A 4602601133 | SHIFTING ROD |
| REVERSE SPEED | ||
| 101 | A 4602601233 | SHIFTING ROD |
| REVERSE SPEED | ||
| 104 | A 6012680027 | END PIECE |
| 106 | A 4602604433 | SHIFTING ROD |
| Repalced by: A 4602674117 | ||
| 106 | A 4602674117 | ROD |
| REVERSE SPEED | ||
| 106 | A 4602674517 | ROD |
| REVERSE SPEED | ||
| 107 | A 1159920110 | BUSHING |
| 110 | N 070616010004 | NUT |
| END PIECE TO FRONT SHIFTING ROD | ||
| M 10 | ||
| 113 | N 900055010002 | SPRING WASHER |
| Repalced by: N 000137010205 | ||
| 113 | N 000137010205 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 116 | N 000931010268 | SCREW |
| Repalced by: N 304017010050 | ||
| 116 | N 304017010050 | SCREW |
| TRANSMISSION TO ENGINE | ||
| M 10X70 | ||
| 119 | N 000137010201 | SPRING WASHER |
| TRANSMISSION TO ENGINE | ||
| 122 | N 000912012059 | SCREW |
| STARTING MOTOR TO BELL HOUSING | ||
| M 12X80 | ||
| 124 | A 1232670439 | GUIDE PIVOT |
| 125 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 125 | N 000137012206 | SPRING WASHER |
| STARTING MOTOR TO BELL HOUSING | ||
| 127 | A 1159903640 | WASHER |
| 128 | A 0005420490 | BLIND CAP |
| SPEEDOMETER DRIVE | ||
| 130 | N 912009010101 | SNAP RING |
| 131 | N 000933006124 | SCREW |
| 133 | A 0019946641 | LOCK |
| 134 | N 000137006204 | SPRING WASHER |
| 136 | A 1152671550 | BUSHING |
| 139 | A 1232670047 | SLOTTED GATE |
| 142 | N 914125006601 | SCREW |
| 145 | N 900055008002 | SPRING WASHER |
| 148 | A 1869906940 | WASHER |
| 151 | A 1862680273 | LOCK |
