Transporto priemonė: 250 GD; VIN numerio dalis: 461401

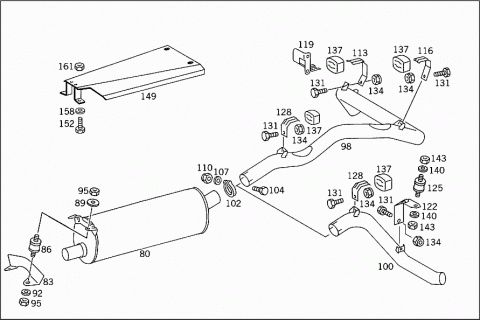

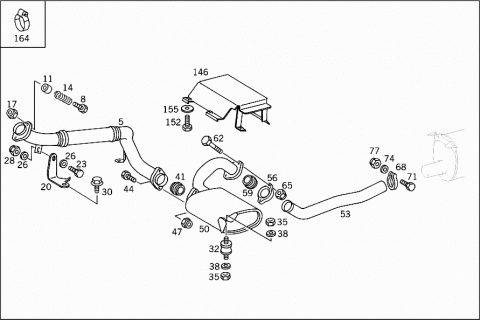

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4614900019 | EXHAUST PIPE |
| FRONT | ||
| 008 | N 000931008326 | SCREW |
| Repalced by: N 304014008009 | ||
| 008 | N 304014008009 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X100 | ||
| 011 | A 4609915140 | SPACER TUBE |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 014 | A 1169937801 | SPRING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 017 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 017 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 020 | A 4604927941 | BRACKET |
| EXHAUST PIPE TO TRANSMISSION | ||
| 023 | N 000933008145 | SCREW |
| EXHAUST PIPE TO BRACKET | ||
| M 8X18 | ||
| 026 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 026 | N 000125008443 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 028 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 028 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO BRACKET | ||
| 030 | N 914007010012 | COMBINATION BOLT |
| Repalced by: N 914007010058 | ||
| 030 | N 914007010058 | COMBINATION BOLT |
| Repalced by: N 304017010035 | ||
| 030 | N 304017010035 | HEXAGON HEAD BOLT |
| BRACKET TO TRANSMISSION | ||
| M10X45 | ||
| 032 | A 4609880411 | BUFFER |
| EXHAUST PIPE TO FRAME | ||
| 035 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 038 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 038 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 041 | A 1264920381 | SEAL RING |
| Repalced by: A 2024920381 | ||
| 041 | A 2024920381 | SEAL RING |
| EXHAUST PIPE TO MUFFLER | ||
| 044 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 044 | N 304017008043 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 047 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 047 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO MUFFLER | ||
| 050 | A 4614900001 | EXHAUST MUFFLER |
| (PRE-MUFFLER) | ||
| 053 | A 4614920401 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 053 | A 4614920501 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 056 | A 1264920345 | FLANGE |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 059 | A 1264920381 | SEAL RING |
| Repalced by: A 2024920381 | ||
| 059 | A 2024920381 | SEAL RING |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 062 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 062 | N 304017008043 | SCREW |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| M 8X55 | ||
| 065 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 065 | A 1201420072 | HEXAGON NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 068 | A 1074900041 | CLAMP |
| IN FRONT OF POSTERIOR MUFFLER | ||
| 071 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 071 | N 304017008043 | SCREW |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| M 8X55 | ||
| 074 | N 000433008406 | WASHER |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 077 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 077 | A 1201420072 | HEXAGON NUT |
| CENTRAL EXHAUST PIPE TO EXHAUST MUFFLER | ||
| 080 | A 4604910501 | MUFFLER |
| 083 | A 4604923030 | PROTECTIVE PLATE |
| MUFFLER TO SIDE MEMBER | ||
| 086 | A 4609880411 | BUFFER |
| MUFFLER TO SIDE MEMBER | ||
| 089 | A 4604920376 | WASHER |
| Repalced by: A 4634920176 | ||
| 089 | A 4634920176 | WASHER |
| MUFFLER TO SIDE MEMBER | ||
| 092 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 092 | N 000125008443 | WASHER |
| MUFFLER TO SIDE MEMBER | ||
| 095 | N 304032008006 | NUT |
| MUFFLER TO SIDE MEMBER | ||
| 098 | A 4604902121 | EXHAUST PIPE |
| REAR | ||
| 100 | A 4614900121 | EXHAUST PIPE |
| REAR | ||
| 102 | A 1124900341 | CLAMP |
| Repalced by: A 0004900741 | ||
| 102 | A 0004900741 | CLAMP |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 104 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 104 | N 304017008043 | SCREW |
| REAR EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 107 | N 000433008406 | WASHER |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 110 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 110 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 113 | A 4604924441 | BRACKET |
| REAR EXHAUST PIPE | ||
| 116 | A 4604927841 | BRACKET |
| REAR EXHAUST PIPE | ||
| 119 | A 4604921941 | BRACKET |
| REAR EXHAUST PIPE | ||
| 122 | A 4614920641 | BRACKET |
| REAR EXHAUST PIPE | ||
| 125 | A 4609880411 | BUFFER |
| REAR EXHAUST PIPE | ||
| 128 | A 4604923641 | BRACKET |
| REAR EXHAUST PIPE | ||
| 128 | A 4614920241 | BRACKET |
| REAR EXHAUST PIPE | ||
| 131 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 131 | N 304017008016 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 8X16 | ||
| 134 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 134 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| 137 | A 4604920682 | DAMPING PAD |
| EXHAUST PIPE SUSPENSION | ||
| 140 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 140 | N 000125008443 | WASHER |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 143 | N 304032008006 | NUT |
| REAR EXHAUST PIPE TO SIDE MEMBER | ||
| 146 | A 4614900130 | PROTECTIVE PLATE |
| Repalced by: A 4614900230 | ||
| 146 | A 4614900230 | PROTECTIVE PLATE |
| PRE-MUFFLER | ||
| 146 | A 4614900130 | PROTECTIVE PLATE |
| PRE-MUFFLER | ||
| 149 | A 4604900530 | PROTECTIVE PLATE |
| Repalced by: A 4604901730 | ||
| 149 | A 4604901730 | PROTECTIVE PLATE |
| MAIN MUFFLER | ||
| 152 | N 304017006016 | SCREW |
| PROTECTIVE PLATE TO BRACKET | ||
| M 6X16 | ||
| 155 | N 009021006103 | WASHER |
| Repalced by: N 009021006208 | ||
| 155 | N 009021006208 | WASHER |
| 158 | N 000125006421 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| Repalced by: N 000125006449 | ||
| 158 | N 000125006449 | WASHER |
| PROTECTIVE PLATE TO BRACKET | ||
| 161 | N 000934006007 | NUT |
| PROTECTIVE PLATE TO BRACKET | ||
| 164 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 164 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 164 | A 0059972990 | CLAMP |
| PROTECTIVE PLATE TO SUPPORT | ||
| 82 - 105 X 15.8 MM | ||
