Transporto priemonė: 250 GD; VIN numerio dalis: 461401

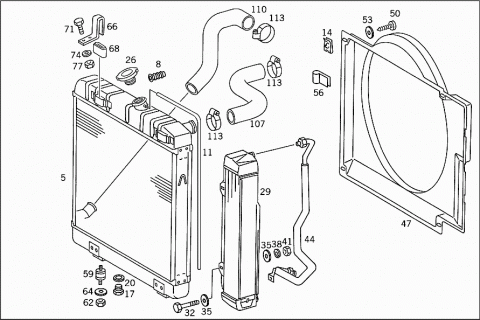

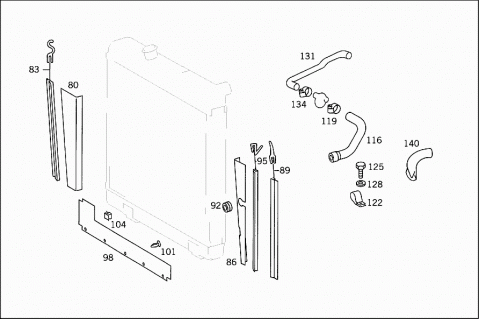

Grupė: 50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0015016301 | RADIATOR |
| Repalced by: A 0015017601 | ||
| 005 | A 0015017601 | RADIATOR |
| Repalced by: A 0015016301 | ||
| 005 | A 0015016301 | RADIATOR |
| 008 | A 0005010010 | DRAIN PIPE |
| RADIATOR | ||
| 011 | A 0139978682 | HOSE |
| Repalced by: A 0219977682 | ||
| 011 | A 0219977682 | HOSE |
| OVERFLOW | ||
| 9,5X1,5X980 MM | ||
| 014 | A 0009940545 | LOCK |
| 017 | N 007604014101 | SCREW PLUG |
| WATER DRAIN | ||
| 020 | N 007603014405 | SEAL RING |
| WATER DRAIN | ||
| 026 | A 0005011715 | RADIATOR CAP |
| Repalced by: A 0005014115 | ||
| 026 | A 0005014115 | RADIATOR CAP |
| Repalced by: A 4615010015 | ||
| 026 | A 4615010015 | RADIATOR CAP |
| 029 | A 1231800265 | OIL COOLER |
| 032 | N 000931006134 | SCREW |
| OIL COOLER TO RADIATOR | ||
| M 6X60 | ||
| 035 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 035 | N 009021006208 | WASHER |
| OIL COOLER TO RADIATOR | ||
| 038 | N 912006006002 | LOCK WASHER |
| OIL COOLER TO RADIATOR | ||
| 041 | N 000934006007 | NUT |
| OIL COOLER TO RADIATOR | ||
| 044 | A 4605000572 | LINE |
| OIL COOLER CONNECTION | ||
| 047 | A 4605051055 | FAN SHROUD |
| 050 | N 007981004233 | SHEET METAL SCREW |
| Repalced by: N 000000000460 | ||
| 050 | N 000000000460 | SHEET METAL SCREW |
| FAN SHROUD TO RADIATOR | ||
| 4.8X13 | ||
| 053 | N 009021005202 | WASHER |
| Repalced by: N 009021005205 | ||
| 053 | N 009021005205 | WASHER |
| FAN SHROUD TO RADIATOR | ||
| 056 | A 4605040146 | CLAMP |
| FAN SHROUD TO RADIATOR | ||
| 059 | A 4609870340 | RUBBER BUFFER |
| RADIATOR MOUNTING,BOTTOM | ||
| 062 | N 304032008006 | NUT |
| RADIATOR MOUNTING,BOTTOM | ||
| 064 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 064 | N 000125008443 | WASHER |
| RADIATOR MOUNTING,BOTTOM | ||
| 066 | A 4605045040 | BRACKET |
| RADIATOR MOUNTING,TOP | ||
| 068 | A 4605040012 | RUBBER MOUNTING |
| RADIATOR MOUNTING,TOP | ||
| 071 | N 000933006102 | SCREW |
| RADIATOR MOUNTING,BOTTOM | ||
| M 6X16 | ||
| 074 | N 000125006421 | WASHER |
| RADIATOR MOUNTING,TOP | ||
| Repalced by: N 000125006449 | ||
| 074 | N 000125006449 | WASHER |
| RADIATOR MOUNTING,TOP | ||
| 077 | N 000934006007 | NUT |
| RADIATOR MOUNTING,TOP | ||
| 080 | A 4606260140 | COVERING |
| RIGHT | ||
| 083 | A 4169875235 | RUBBER SECTION |
| 298 MM | ||
| 086 | A 4616260140 | COVERING |
| LEFT | ||
| 086 | A 4615050201 | RADIATOR SHUTTER |
| LEFT | ||
| 089 | A 0039871751 | RUBBER SEAL |
| 214 MM | ||
| 092 | A 4609975281 | GROMMET |
| 095 | A 0009858230 | SEALING SECTION |
| 680 MM | ||
| 098 | A 4605050130 | AIR BAFFLE |
| 101 | A 0009880528 | PLUG |
| 104 | A 0009881678 | CLIP |
| 107 | A 4605012682 | HOSE |
| TOP | ||
| 110 | A 4605012782 | HOSE |
| BOTTOM | ||
| 113 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 113 | N 000000000670 | CLAMP |
| COOLING WATER HOSE TO RADIATOR | ||
| 32-50 | ||
| 113 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 113 | N 000000000670 | CLAMP |
| COOLING WATER HOSE TO THERMOSTAT | ||
| 32-50 | ||
| 113 | N 916017032000 | CLAMP |
| Repalced by: N 000000000670 | ||
| 113 | N 000000000670 | CLAMP |
| COOLING WATER HOSE TO WATER PUMP | ||
| 32-50 | ||
| 113 | N 916026036000 | CLAMP |
| Repalced by: A 0069970590 | ||
| 113 | A 0069970590 | LOOM TIE |
| COOLING WATER HOSE TO WATER PUMP | ||
| 36-46 | ||
| 116 | A 4608325094 | HOSE |
| FROM ENGINE TO CONTROL VALVE | ||
| 119 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 119 | N 000000000667 | CLAMP |
| HEAT EXCHANGER COOLING WATER CONNECTION | ||
| 122 | A 4605065041 | CLAMP |
| FEED LINE | ||
| 125 | N 000933005059 | SCREW |
| CLAMP TO BODY | ||
| M 5X12 | ||
| 128 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 128 | N 000433005304 | WASHER |
| CLAMP TO BODY | ||
| 131 | A 4608321823 | HOSE |
| FROM VALVE TO HEAT EXCHANGER | ||
| 134 | N 916026020001 | CLAMP |
| Repalced by: N 000000000667 | ||
| 134 | N 000000000667 | CLAMP |
| FROM VALVE TO HEAT EXCHANGER | ||
| 140 | A 1168350597 | HOSE |
| AIR DUCT | ||
| N 915042006000 | PLUG | |
| VENTILATION CASE | ||
| 6,5 | ||
| N 915042005000 | PLUG | |
| VENTILATION CASE | ||
| 5,5 | ||
