Transporto priemonė: 250 GD; VIN numerio dalis: 461401

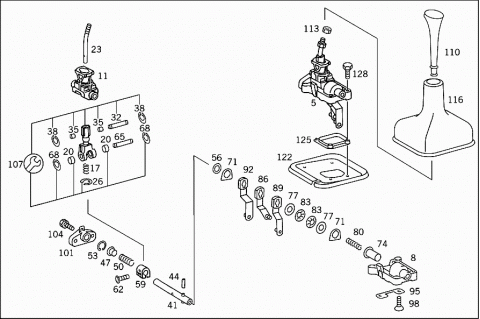

Grupė: 26 TRANSMISSION - 030 SHIFT LEVER AND SHIFTING PARTS
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4602600498 | SHIFT MECHANISM |
| 005 | A 4612600798 | SHIFT MECHANISM |
| 008 | A 1292600194 | BEARING BRACKET |
| 008 | A 1242601394 | BEARING BRACKET |
| 011 | A 2012670640 | BRACKET |
| 011 | A 1242671140 | BRACKET |
| 017 | A 1249932601 | SPRING |
| SHIFT LEVER | ||
| 020 | A 2012670650 | BUSHING |
| Repalced by: A 1402670450 | ||
| 020 | A 1402670450 | BUSHING |
| 023 | A 1242671001 | SHIFT LEVER |
| 023 | A 4612670001 | SHIFT LEVER |
| 026 | N 006799006003 | LOCK PLATE |
| SHIFT LEVER | ||
| 032 | A 2012671674 | PIN |
| 035 | A 2012670050 | BUSHING |
| 038 | N 006799002302 | LOCK PLATE |
| 041 | A 2012600782 | SHIFTING TUBE |
| 041 | A 1242600482 | SHIFTING TUBE |
| 044 | A 1159910301 | PIN |
| 047 | A 2012671076 | WASHER |
| SHIFTING TUBE | ||
| 050 | A 2019935801 | SPRING |
| SHIFTING TUBE | ||
| 053 | N 912009013200 | SNAP RING |
| SHIFTING TUBE | ||
| 056 | A 1152670052 | SPACER WASHER |
| 059 | A 1242670241 | STOP |
| 062 | A 2019901120 | SCREW |
| 065 | A 2012671474 | PIN |
| 068 | A 0049944541 | LOCK |
| 071 | A 2012670676 | WASHER |
| 071 | A 1292670376 | WASHER |
| 071 | A 1242670076 | WASHER |
| 074 | A 2012670750 | BUSHING |
| 074 | A 1292670050 | BUSHING |
| 077 | A 2012670052 | SPACER WASHER |
| Repalced by: A 1292670052 | ||
| 077 | A 1292670052 | SPACER WASHER |
| 080 | A 2019936001 | SPRING |
| 080 | A 2019936101 | SPRING |
| 083 | A 2019930026 | DISC SPRING |
| Repalced by: A 1299930126 | ||
| 083 | A 1299930126 | DISC SPRING |
| 086 | A 2012600737 | LEVER |
| 1ST AND 2ND SPEED | ||
| 086 | A 1242605437 | LEVER |
| 1ST AND 2ND SPEED | ||
| 086 | A 1242605737 | LEVER |
| 1ST AND 2ND SPEED | ||
| 089 | A 2012600837 | LEVER |
| 3RD AND 4TH SPEED | ||
| 089 | A 1242605537 | LEVER |
| 3RD AND 4TH SPEED | ||
| 092 | A 4602600437 | LEVER |
| 5TH SPEED AND REVERSE | ||
| 092 | A 1242607137 | LEVER |
| 5TH SPEED AND REVERSE | ||
| 092 | A 1242605937 | LEVER |
| 5TH SPEED AND REVERSE | ||
| 095 | A 2012671147 | SLOTTED GATE |
| 095 | A 1242670947 | SLOTTED GATE |
| Repalced by: A 2022670347 | ||
| 095 | A 2022670347 | SLOTTED GATE |
| Repalced by: A 2022670947 | ||
| 095 | A 2022670947 | SLOTTED GATE |
| 098 | A 2019901220 | SCREW |
| 101 | A 1242670305 | BEARING |
| Repalced by: A 2022670005 | ||
| 101 | A 2022670005 | BEARING |
| 104 | N 914130006200 | SCREW |
| Repalced by: N 910106006000 | ||
| 104 | N 910106006000 | SCREW |
| 107 | A 2012601939 | REPAIR KIT |
| (YOKE) | ||
| 110 | A 4612670010 | HANDLE |
| 110 | A 1242670410 | HANDLE |
| 113 | N 070616010003 | NUT |
| 116 | A 4612600268 | BOOT |
| 122 | A 4602670242 | PLATE |
| 125 | A 2012670480 | GASKET |
| 128 | N 914130006100 | SCREW |
| M6X32 | ||

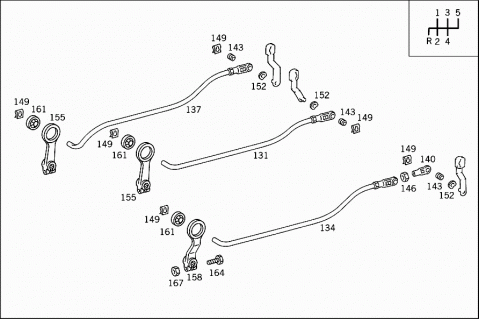

| 131 | A 4612600133 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 131 | A 4612600633 | SHIFTING ROD |
| 1ST AND 2ND SPEED | ||
| 134 | A 4612600233 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 134 | A 4612600733 | SHIFTING ROD |
| 3RD AND 4TH SPEED | ||
| 137 | A 4612600033 | SHIFTING ROD |
| 5TH SPEED AND REVERSE | ||
| 137 | A 4612600833 | SHIFTING ROD |
| 5TH SPEED AND REVERSE | ||
| 140 | A 1152600353 | END PIECE |
| 140 | A 1242670032 | END PIECE |
| 143 | A 1159920110 | BUSHING |
| 146 | N 070616010004 | NUT |
| 149 | A 0009942960 | LOCK |
| Repalced by: A 0009944160 | ||
| 149 | A 0009944160 | PIN LOCK |
| 152 | N 900055010002 | LOCK RING |
| Repalced by: N 000137010205 | ||
| 152 | N 000137010205 | SPRING WASHER |
| SHIFTING ROD TO SHIFT LEVER | ||
| 155 | A 1152682530 | SHIFT LEVER |
| 1ST AND 2ND SPEED | ||
| 155 | A 1152682530 | SHIFT LEVER |
| 3RD AND 4TH SPEED | ||
| 158 | A 1232670030 | LEVER |
| REVERSE SPEED | ||
| 161 | A 0009920510 | BUSHING |
| 164 | N 000933006127 | SCREW |
| M6X25 | ||
| 167 | N 000934006007 | NUT |
