Transporto priemonė: 290 GDT; VIN numerio dalis: 461321

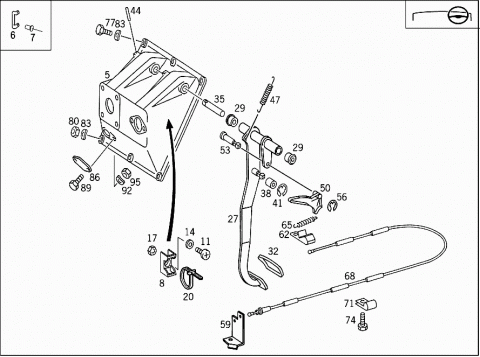

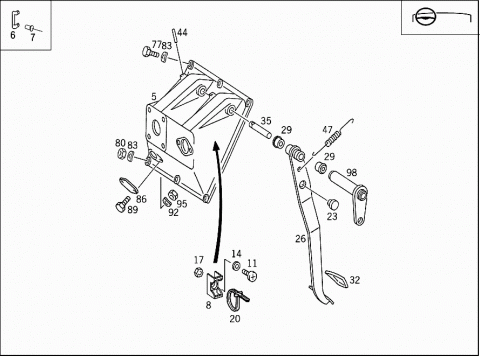

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4632940301 | BEARING BRACKET |
| Repalced by: A 4632940401 | ||
| 005 | A 4632940401 | BEARING BRACKET |
| 005 | A 4632940401 | BEARING BRACKET |
| 005 | A 4632940401 | BEARING BRACKET |
| 005 | A 4602941801 | BEARING BRACKET |
| 006 | A 0009884683 | CRAMP |
| RETAINING STRAP AND CLIPS ON PEDAL SUPPORT | ||
| 007 | N 910002004145 | RIVET |
| RETAINING STRAP AND CLIPS ON PEDAL SUPPORT | ||
| AK 4,8X12,70 AL | ||
| 008 | A 0005461943 | BRACKET |
| PEDAL BRACKET | ||
| 011 | N 007985005526 | SCREW |
| PEDAL BRACKET | ||
| M 5X16 | ||
| 014 | N 000125005317 | WASHER |
| Repalced by: N 000433005304 | ||
| 014 | N 000433005304 | WASHER |
| PEDAL BRACKET | ||
| 017 | N 000934005023 | NUT |
| Repalced by: N 304032005005 | ||
| 017 | N 304032005005 | NUT |
| PEDAL BRACKET | ||
| 020 | A 0019978390 | LOOM TIE |
| PEDAL BRACKET | ||
| 020 | A 6389971890 | LOOM TIE |
| ON FIREWALL UNDER PEDAL BRACKET | ||
| 023 | N 915042006000 | PLUG |
| 6,5 MM | ||
| 023 | N 915042006000 | PLUG |
| 023 | N 915042007001 | PLUG |
| 7,2 MM | ||
| 023 | N 915042007001 | PLUG |
| 7,2 MM | ||
| 026 | A 4632901401 | PEDAL |
| (BRAKE PEDAL) | ||
| 026 | A 4632901118 | PEDAL |
| (BRAKE PEDAL) | ||
| 026 | A 4632901118 | PEDAL |
| (BRAKE PEDAL) | ||
| 026 | A 4612901018 | PEDAL |
| (BRAKE PEDAL) | ||
| 027 | A 4632903601 | PEDAL |
| (BRAKE PEDAL) | ||
| 029 | A 1102910550 | BUSHING |
| 029 | A 1102910550 | BUSHING |
| 032 | A 1232910082 | PAD |
| 032 | A 1232910082 | PAD |
| 032 | A 1232910082 | PAD |
| 035 | A 4632920109 | SPINDLE |
| BRAKE PEDAL | ||
| 035 | A 4632920109 | SPINDLE |
| BRAKE PEDAL | ||
| 038 | A 1242920235 | ROLLER |
| 041 | N 006799004001 | LOCK PLATE |
| 044 | N 001473005019 | GROOVED PIN |
| 5X32 | ||
| 044 | N 001473005019 | GROOVED PIN |
| 047 | A 4639930010 | SPRING |
| 047 | A 4639930010 | SPRING |
| 047 | A 1079930410 | SPRING |
| BRAKE PEDAL RELEASE SPRING | ||
| 050 | A 1402921031 | LEVER |
| AT BRACKET FIRE WALL | ||
| 053 | A 4612770074 | PIN |
| AT BRACKET FIRE WALL | ||
| 056 | N 000471006001 | LOCK RING |
| AT BRACKET FIRE WALL | ||
| 059 | A 4612770340 | BRACKET |
| PEDAL BRACKET | ||
| 062 | A 4612910040 | BRACKET |
| SHIFT LOCK CABLE ON HEATING HOUSING | ||
| 065 | A 2109930610 | SPRING |
| BETWEEN BRACKET AND LEVER | ||
| 068 | A 4612900085 | CABLE |
| AUTOMATIC TRANSMISSION | ||
| 071 | N 916016005100 | CLAMP |
| SHIFT LOCK CABLE ON FLOOR SHIFT | ||
| 074 | N 000933005058 | SCREW |
| SHIFT LOCK CABLE ON FLOOR SHIFT | ||
| M 5X10 | ||
| 077 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 077 | N 304017008034 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X25 | ||
| 077 | N 000931008047 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X35 | ||
| 077 | N 000931008251 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X75 | ||
| 080 | N 304032008006 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 080 | N 304032008006 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 083 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 083 | N 000137008212 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 083 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 083 | N 000137008212 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 086 | A 4602940092 | COVER PLATE |
| 086 | A 4602940192 | COVER PLATE |
| 089 | N 304017008016 | SCREW |
| M 8X16 | ||
| 092 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 092 | N 000137008212 | SPRING WASHER |
| 095 | N 304032008006 | NUT |
| 098 | A 4602920109 | SPINDLE |
| BRAKE PEDAL | ||
