Transporto priemonė: 290 GDT; VIN numerio dalis: 461327

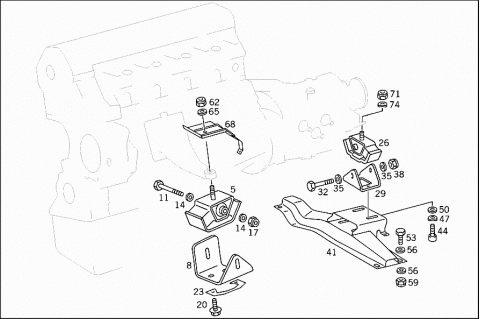

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, GREY | ||
| 005 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, YELLOW | ||
| 005 | A 4602407118 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, GREY | ||
| 005 | A 4602406618 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, GREEN | ||
| 005 | A 4602406618 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, GREEN | ||
| 005 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, YELLOW | ||
| 008 | A 4612420040 | BRACKET |
| FRONT LEFT AND RIGHT | ||
| 011 | N 000960010071 | SCREW |
| ENGINE MOUNTING TO BRACKET | ||
| M 10X95 | ||
| 014 | N 000125010532 | WASHER |
| ENGINE MOUNTING TO BRACKET | ||
| 017 | N 913004010014 | NUT |
| Repalced by: N 910113010003 | ||
| 017 | N 910113010003 | NUT |
| ENGINE MOUNTING TO BRACKET | ||
| 020 | N 914114010023 | SCREW |
| BRACKET TO FRAME | ||
| 023 | A 4602410610 | SUPPORTING PLATE |
| BRACKET TO FRAME | ||
| 026 | A 4602405618 | RUBBER MOUNTING |
| ENGINE REAR MOUNTING, BLUE | ||
| 026 | A 4602405618 | RUBBER MOUNTING |
| ENGINE REAR MOUNTING, BLUE | ||
| 029 | A 4602660240 | BRACKET |
| ENGINE REAR MOUNTING | ||
| 032 | N 000931008251 | SCREW |
| ENGINE MOUNTING TO BRACKET | ||
| M 8X75 | ||
| 035 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 035 | N 000125008443 | WASHER |
| ENGINE MOUNTING TO BRACKET | ||
| 038 | N 913002008004 | NUT |
| ENGINE MOUNTING TO BRACKET | ||
| 041 | A 4602665302 | SUPPORT |
| 044 | N 000912008006 | SCREW |
| Repalced by: N 007984008003 | ||
| 044 | N 007984008003 | SCREW |
| BRACKET TO ENGINE SUPPORT | ||
| M 8X18 | ||
| 047 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 047 | N 000137008212 | SPRING WASHER |
| BRACKET TO ENGINE SUPPORT | ||
| 050 | A 1169901440 | WASHER |
| BRACKET TO ENGINE SUPPORT | ||
| 050 | A 6039900840 | WASHER |
| BRACKET TO ENGINE SUPPORT | ||
| 053 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 053 | N 304017008034 | SCREW |
| ENGINE SUPPORT TO FRAME | ||
| M 8X25 | ||
| 056 | A 1169901440 | WASHER |
| ENGINE SUPPORT TO FRAME | ||
| 056 | A 6039900840 | WASHER |
| ENGINE SUPPORT TO FRAME | ||
| 059 | N 913002008001 | NUT |
| ENGINE SUPPORT TO FRAME | ||
| 062 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 062 | N 910113012003 | NUT |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 065 | N 000125013022 | WASHER |
| Repalced by: A 1409900840 | ||
| 065 | A 1409900840 | WASHER |
| ENGINE TO ENGINE FRONT SUPPORT | ||
| 068 | A 4612410034 | SCREENING PLATE |
| ENGINE FRONT LEFT MOUNTING | ||
| 071 | N 000934012022 | NUT |
| ENGINE TO ENGINE REAR MOUNTING | ||
| M 12X1.5 | ||
| 074 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 074 | N 000137012206 | SPRING WASHER |
| ENGINE TO ENGINE REAR MOUNTING | ||
