Transporto priemonė: 290 GDT; VIN numerio dalis: 461327

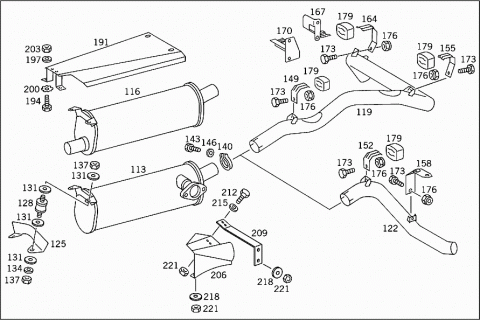

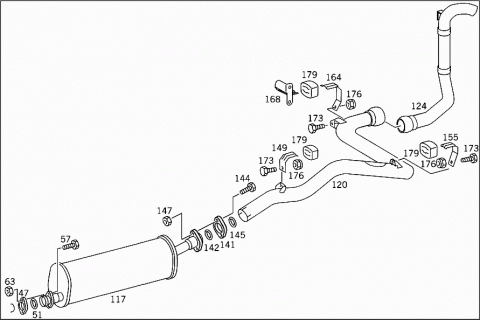

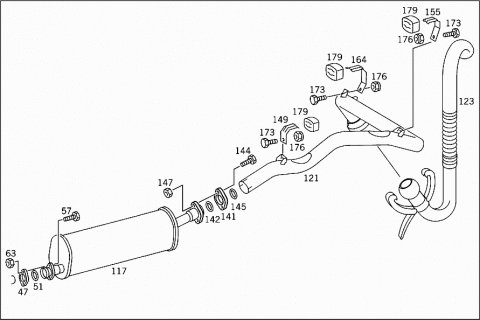

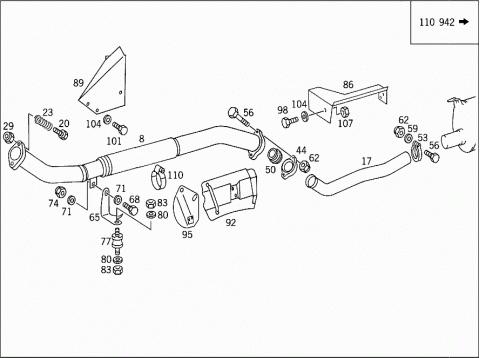

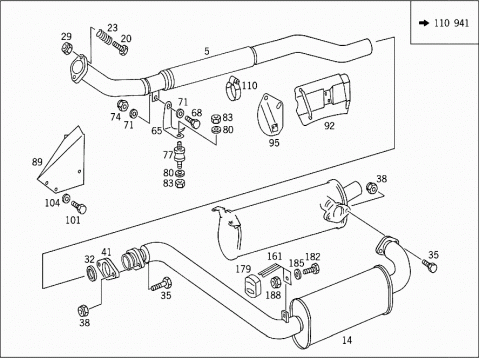

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4614900519 | EXHAUST PIPE |
| 008 | A 4614900619 | EXHAUST PIPE |
| FRONT | ||
| 008 | A 4614900619 | EXHAUST PIPE |
| FRONT | ||
| 014 | A 4614900201 | EXHAUST MUFFLER |
| FRONT | ||
| 014 | A 4614900301 | EXHAUST MUFFLER |
| FRONT | ||
| 014 | A 4614900601 | EXHAUST MUFFLER |
| CENTRAL | ||
| 017 | A 4614920501 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4614921101 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4614921101 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4614920401 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 020 | N 000931008209 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X95 | ||
| 023 | A 1169937801 | SPRING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3019910340 | SPACER TUBE | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 029 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 032 | A 2024920281 | SEAL RING |
| PRE-MUFFLER TO MAIN MUFFLER | ||
| 035 | N 000931008237 | SCREW |
| PRE-MUFFLER TO MAIN MUFFLER | ||
| M 8X55 | ||
| 038 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 038 | A 1201420072 | HEXAGON NUT |
| PRE-MUFFLER TO MAIN MUFFLER | ||
| 041 | A 1264920845 | FLANGE |
| EXHAUST PIPE TO MUFFLER | ||
| 044 | A 1264920345 | FLANGE |
| EXHAUST PIPE TO MUFFLER | ||
| 044 | A 1264920345 | FLANGE |
| EXHAUST PIPE TO MUFFLER | ||
| 047 | A 1264920245 | FLANGE |
| EXHAUST PIPE CENTER ON SILENCER AT REAR | ||
| 050 | A 1264920381 | SEAL RING |
| Repalced by: A 2024920381 | ||
| 050 | A 2024920381 | SEAL RING |
| EXHAUST PIPE TO MUFFLER | ||
| 050 | A 2024920381 | SEAL RING |
| EXHAUST PIPE TO MUFFLER | ||
| 051 | A 1269970141 | SEAL RING |
| EXHAUST PIPE CENTER ON SILENCER AT REAR | ||
| 053 | A 1074920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 053 | A 1074920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 056 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 056 | N 304017008043 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 056 | N 304017008043 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 057 | A 1299900410 | BOLT W FLANGE |
| EXHAUST PIPE CENTER ON SILENCER AT REAR | ||
| 059 | N 000433008406 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 059 | N 000433008406 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 062 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 062 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO MUFFLER | ||
| M8-CU | ||
| 062 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 062 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO MUFFLER | ||
| M8-CU | ||
| 063 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 063 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE CENTER ON SILENCER AT REAR | ||
| M8-CU | ||
| 065 | A 4604927941 | BRACKET |
| FRONT EXHAUST PIPE TO TRANSMISSION | ||
| 068 | N 000933008145 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 8X18 | ||
| 071 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 071 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE | ||
| 074 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 074 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| M8-CU | ||
| 077 | A 4609880411 | BUFFER |
| EXHAUST PIPE TO FRAME | ||
| 077 | A 4609880411 | BUFFER |
| EXHAUST PIPE TO FRAME | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 083 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 083 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 086 | A 4604902330 | PROTECTIVE PLATE |
| AT FRAME ABOVE CENTRAL EXHAUST PIPE | ||
| 089 | A 4604921030 | PROTECTIVE PLATE |
| AT FRAME ABOVE CENTRAL EXHAUST PIPE | ||
| 092 | A 4634922030 | PROTECTIVE PLATE |
| 095 | A 4614900430 | PROTECTIVE PLATE |
| FRONT EXHAUST PIPE AND BRACKET FRONT EXHAUST PIPE | ||
| 098 | N 000933006207 | SCREW |
| M 6X14 | ||
| 101 | N 304017006016 | SCREW |
| M 6X16 | ||
| 104 | N 000125006421 | WASHER |
| 107 | N 000934006007 | NUT |
| 110 | N 916018040000 | CLAMP |
| PROTECTIVE PLATE TO FRONT EXHAUST PIPE | ||
| 40/60 MM | ||
| 113 | A 4604911101 | MUFFLER |
| CENTRAL | ||
| 116 | A 4604910501 | MUFFLER |
| CENTRAL | ||
| 116 | A 4604910501 | MUFFLER |
| CENTRAL | ||
| 117 | A 4614910001 | MUFFLER |
| REAR | ||
| 119 | A 4614900721 | EXHAUST PIPE |
| REAR | ||
| 119 | A 4614900921 | EXHAUST PIPE |
| REAR | ||
| 119 | A 4614900521 | EXHAUST PIPE |
| REAR | ||
| 119 | A 4614900521 | EXHAUST PIPE |
| REAR | ||
| 119 | A 4604902121 | EXHAUST PIPE |
| REAR | ||
| 120 | A 4614901021 | EXHAUST PIPE |
| REAR | ||
| 121 | A 4614900127 | END PIECE |
| REAR | ||
| 122 | A 4614900821 | EXHAUST PIPE |
| REAR | ||
| 122 | A 4614900121 | EXHAUST PIPE |
| REAR | ||
| 123 | A 4614900027 | END PIECE |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| 124 | A 4614900227 | END PIECE |
| REAR EXHAUST PIPE LEFT TO BODY | ||
| 125 | A 4604923030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER TO FRAME | ||
| 128 | A 4609880411 | BUFFER |
| EXHAUST MUFFLER TO FRAME | ||
| 131 | A 4604920376 | WASHER |
| Repalced by: A 4634920176 | ||
| 131 | A 4634920176 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 134 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 134 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 137 | N 304032008006 | NUT |
| EXHAUST MUFFLER TO FRAME | ||
| 140 | A 4614920341 | BRACKET |
| Repalced by: A 1124900341 | ||
| 140 | A 1124900341 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 141 | A 1264920245 | FLANGE |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 142 | A 1269970141 | SEAL RING |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 143 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 143 | N 304017008043 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 144 | A 1299900410 | BOLT W FLANGE |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 145 | A 4614920081 | SEAL RING |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 146 | N 000433008406 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 147 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 147 | A 1201420072 | HEXAGON NUT |
| REAR EXHAUST PIPE TO MUFFLER | ||
| 149 | A 4604923641 | BRACKET |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 152 | A 4614920241 | BRACKET |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 155 | A 4604927841 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 155 | A 4614922141 | BRACKET |
| Repalced by: A 4604927841 | ||
| 155 | A 4604927841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 155 | A 4604901740 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 155 | A 4614922141 | BRACKET |
| Repalced by: A 4604927841 | ||
| 155 | A 4604927841 | BRACKET |
| 158 | A 4604929141 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 158 | A 4614920641 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 161 | A 4604922841 | BRACKET |
| PRE-MUFFLER TO FRAME | ||
| 164 | A 4604924441 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 164 | A 4604923641 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 164 | A 4614922041 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 167 | A 4604921941 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 168 | A 4614922841 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 170 | A 4614900240 | BRACKET |
| AT FRAME | ||
| 173 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 173 | N 308676014020 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 14X35 | ||
| 173 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 173 | N 304017008016 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 8X16 | ||
| 176 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 176 | N 910113014001 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 176 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 176 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| M8-CU | ||
| 179 | A 4604920682 | DAMPING PAD |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 182 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 182 | N 304017008016 | SCREW |
| PRE-MUFFLER TO FRAME | ||
| M 8X16 | ||
| 185 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 185 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 185 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 185 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 188 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 188 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 191 | A 4604902230 | PROTECTIVE PLATE |
| AT FRAME ABOVE MUFFLER REAR | ||
| 191 | A 4604901730 | PROTECTIVE PLATE |
| AT FRAME ABOVE MUFFLER REAR | ||
| 194 | N 304017006016 | SCREW |
| PROTECTIVE PLATE TO CONSOLE | ||
| M 6X16 | ||
| 197 | N 000125006421 | WASHER |
| PROTECTIVE PLATE TO CONSOLE | ||
| 200 | N 006798006103 | SERRATED WASHER |
| PROTECTIVE PLATE TO CONSOLE | ||
| 203 | N 000934006007 | NUT |
| PROTECTIVE PLATE TO CONSOLE | ||
| 206 | A 4614920530 | PROTECTIVE PLATE |
| Repalced by: A 4614920630 | ||
| 206 | A 4614920630 | PROTECTIVE PLATE |
| TURBOCHARGER SCREENING | ||
| 209 | A 4614922741 | BRACKET |
| TURBOCHARGER SCREENING | ||
| 212 | N 304017006018 | SCREW |
| HEAT SHIELD TO BRACKET | ||
| 215 | N 000125006421 | WASHER |
| HEAT SHIELD TO BRACKET | ||
| 218 | N 009021006208 | WASHER |
| HEAT SHIELD TO FRAME | ||
| 221 | N 000934006007 | NUT |
| Repalced by: N 304032006004 | ||
| 221 | N 304032006004 | NUT |
| HEAT SHIELD TO BRACKET | ||
| 221 | N 304032006004 | NUT |
| HEAT SHIELD TO FRAME | ||
