Transporto priemonė: 290 GDT; VIN numerio dalis: 461336
Grupė: 30 CONTROL

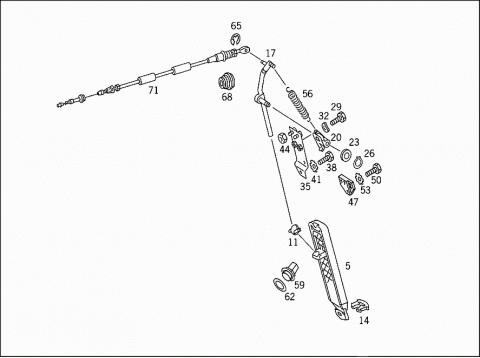

| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1233000204 | ACCELERATOR PEDAL |
| A 1233010082 | PAD | |
| 011 | A 1233010022 | JOINT |
| 014 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 017 | A 4633000025 | LEVER |
| 017 | A 4633000125 | LEVER |
| Repalced by: A 4613000125 | ||
| 017 | A 4613000125 | LEVER |
| 020 | A 2013010218 | BEARING |
| 023 | N 000988013100 | FITTED WASHER |
| LEVER TO BEARING BRACKET | ||
| S 13X19 | ||
| 026 | N 000471012001 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 12X1 | ||
| 029 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 029 | N 304017006020 | SCREW |
| SHIM TO FLOOR | ||
| M 6X20 | ||
| 029 | N 304017006034 | SCREW |
| M 6X10 | ||
| 032 | N 000137006204 | SPRING WASHER |
| SHIM TO FLOOR | ||
| 035 | A 4613000040 | BRACKET |
| 038 | N 304017006018 | SCREW |
| BRACKET TO FIRE WALL | ||
| M 6X12 | ||
| 041 | N 006798006103 | SERRATED WASHER |
| 044 | N 000934006007 | NUT |
| BRACKET TO FIRE WALL | ||
| 047 | A 4613010084 | SHIM |
| 050 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 050 | N 304017006020 | SCREW |
| SHIM TO FLOOR | ||
| M 6X20 | ||
| 053 | N 006798006103 | SERRATED WASHER |
| SHIM TO FLOOR | ||
| 056 | A 4609930010 | SPRING |
| 056 | A 4639930310 | SPRING |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 059 | A 0003000141 | KICK-DOWN SWITCH |
| 062 | A 1159970640 | SEAL RING |
| 065 | N 006799005002 | LOCK PLATE |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| Repalced by: N 006799005004 | ||
| 065 | N 006799005004 | CIRCLIP |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| 068 | A 2013010285 | RUBBER BUFFER |
| BOWDEN CABLE TO FIRE WALL | ||
| 071 | A 4613001030 | WIRE CABLE |
| 071 | A 4613001130 | WIRE CABLE |

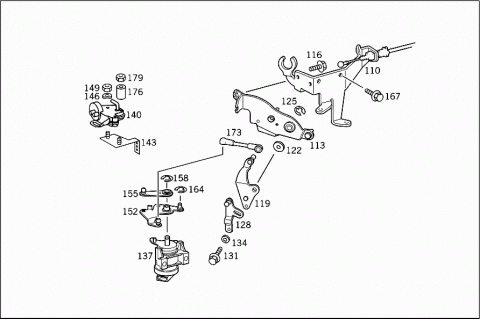

| 110 | A 2103010340 | BRACKET |
| 113 | A 2103000240 | BRACKET |
| 116 | N 304017006008 | SCREW |
| BRACKET TO BRACKET | ||
| 119 | A 2103000625 | LEVER |
| CONTROL LEVER | ||
| 122 | N 000988010021 | FITTED WASHER |
| CONTROL LEVER TO BRACKET | ||
| 125 | N 006799007001 | LOCK PLATE |
| CONTROL LEVER TO BRACKET | ||
| 128 | A 2103000428 | LEVER |
| INTERMEDIATE LEVER | ||
| 131 | N 304017006008 | SCREW |
| INTERMEDIATE AND CONTROL LEVERS ON BRACKET | ||
| 134 | N 000125006421 | WASHER |
| INTERMEDIATE AND CONTROL LEVERS ON BRACKET | ||
| 137 | A 0115428617 | SENDER UNIT |
| (PEDAL VALUE SENSOR) | ||
| 137 | A 4615420317 | SENDER UNIT |
| (PEDAL VALUE SENSOR) | ||
| 140 | A 1403000833 | VALVE |
| 143 | A 4613000140 | BRACKET |
| CONTROL VALVE | ||
| 143 | A 4613010440 | BRACKET |
| CONTROL VALVE | ||
| 146 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 146 | N 000137008212 | SPRING WASHER |
| 146 | N 009021006208 | WASHER |
| 149 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 149 | N 304032008006 | NUT |
| 149 | N 000934006007 | NUT |
| 152 | A 2103000728 | LEVER |
| (REVERSING LEVER) | ||
| 155 | A 2103000828 | LEVER |
| (DRAG LINK) | ||
| 158 | N 006799007009 | LOCK PLATE |
| REVERSING AND INTERMEDIATE LEVERS ON SENSOR | ||
| A 2103010011 | ROLLER | |
| 164 | N 006799007009 | LOCK PLATE |
| ROLLER TO LEVER | ||
| 167 | N 304017006009 | SCREW |
| Repalced by: N 304017006016 | ||
| 167 | N 304017006016 | SCREW |
| SENDER UNIT TO BRACKET | ||
| A 2109930310 | SPRING | |
| 173 | A 0010708875 | ROD |
| FROM REVERSING LEVER TO CONTROL LEVER | ||
| 176 | A 2023010753 | SPACER TUBE |
| BRACKET TO CONSOLE,LEFT | ||
| 176 | A 1029910340 | SPACER TUBE |
| BRACKET TO CONSOLE,LEFT | ||
| 179 | N 910112006001 | NUT |
| Repalced by: N 913023006001 | ||
| 179 | N 913023006001 | NUT |
| BRACKET TO CONSOLE,LEFT | ||
