Transporto priemonė: 290 GD; VIN numerio dalis: 461367

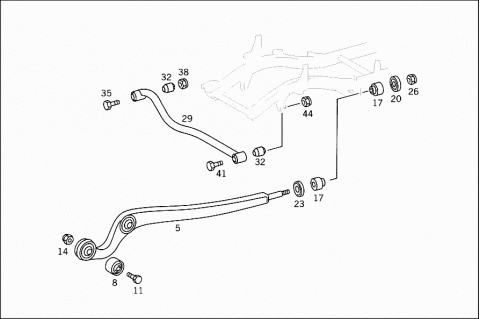

Grupė: 33 FRONT AXLE - 105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT AXLE,SEE UNIT STANDARD VERSION | ||
| 1106 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| DIFFERENTIAL LOCK CONTROL | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 28/070 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BREATHING,SEE SUBGROUP: | ||
| 28/090 | ||
| 005 | A 4603300111 | THRUST ARM |
| 008 | A 4603330314 | BEARING |
| 008 | A 4603335014 | BEARING |
| 011 | N 000960016288 | SCREW |
| CONTROL ARM TO FRAME | ||
| M16X1.5X80X25 | ||
| 014 | N 913002016002 | NUT |
| 017 | A 4603520465 | RUBBER MOUNTING |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 020 | A 4603520476 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 023 | A 4603520276 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 026 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| M16X1.5 | ||
| 029 | A 4633300407 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4633300707 | ||
| 029 | A 4633300707 | TRANSVERSE CONTROL ARM |
| 029 | A 4603300307 | TRANSVERSE CONTROL ARM |
| 032 | A 4603520565 | RUBBER MOUNTING |
| 035 | N 000960016288 | SCREW |
| CONTROL ARM TO FRONT AXLE | ||
| M16X1.5X80X25 | ||
| 038 | N 913002016002 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| 041 | N 000960016288 | SCREW |
| CONTROL ARM TO FRAME | ||
| M16X1.5X80X25 | ||
| 044 | N 913002016002 | NUT |
| CONTROL ARM TO FRAME | ||
