Transporto priemonė: 290 GD; VIN numerio dalis: 461368

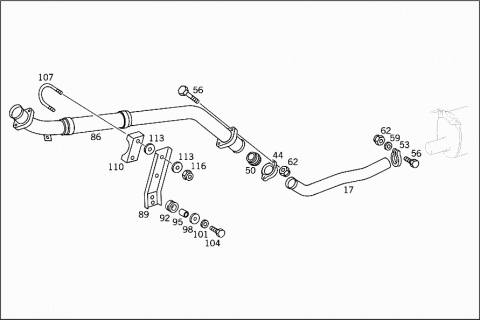

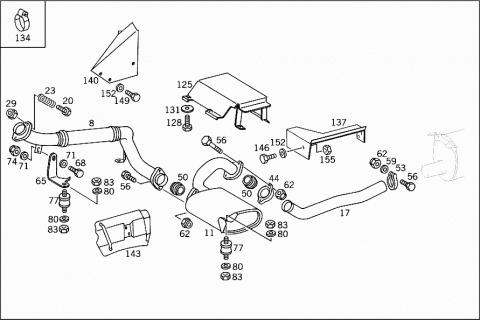

Grupė: 49 EXHAUST SYSTEM
| # | Kodas | Pavadinimas |
|---|---|---|
| 008 | A 4614900019 | EXHAUST PIPE |
| FRONT | ||
| 011 | A 4614900001 | EXHAUST MUFFLER |
| FRONT | ||
| 017 | A 4614920501 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4614921101 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 017 | A 4614920401 | FRONT EXHAUST PIPE |
| CENTRAL | ||
| 020 | N 000931008209 | SCREW |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| M 8X95 | ||
| 023 | A 1169937801 | SPRING |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| A 3019910340 | SPACER TUBE | |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 029 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 029 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO EXHAUST MANIFOLD | ||
| 044 | A 1264920345 | FLANGE |
| EXHAUST PIPE TO MUFFLER | ||
| 050 | A 1264920381 | SEAL RING |
| Repalced by: A 2024920381 | ||
| 050 | A 2024920381 | SEAL RING |
| EXHAUST PIPE TO MUFFLER | ||
| 053 | A 1074920140 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 056 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 056 | N 304017008043 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 059 | N 000433008406 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 062 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 062 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO MUFFLER | ||
| M8-CU | ||
| 065 | A 4604927941 | BRACKET |
| AT TRANSMISSION | ||
| 068 | N 000933008145 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 8X18 | ||
| 071 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 071 | N 000125008443 | WASHER |
| BRACKET TO EXHAUST PIPE | ||
| 074 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 074 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| M8-CU | ||
| 077 | A 4609880411 | BUFFER |
| EXHAUST PIPE TO FRAME | ||
| 077 | A 4609880411 | BUFFER |
| EXHAUST MUFFLER TO FRAME | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 083 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 083 | N 304032008006 | NUT |
| EXHAUST MUFFLER TO FRAME | ||
| 086 | A 4614900319 | EXHAUST PIPE |
| FRONT | ||
| 086 | A 4614900319 | EXHAUST PIPE |
| FRONT | ||
| 089 | A 4604926941 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 089 | A 4604926941 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 092 | A 1169972981 | GROMMET |
| Repalced by: A 0009972881 | ||
| 092 | A 0009972881 | GROMMET |
| BRACKET TO FRAME | ||
| 092 | A 0009972881 | GROMMET |
| BRACKET TO FRAME | ||
| 095 | A 4609910740 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 095 | A 4609910740 | SPACER TUBE |
| BRACKET TO FRAME | ||
| 098 | N 000440009103 | WASHER |
| BRACKET TO FRAME | ||
| 098 | N 000440009103 | WASHER |
| BRACKET TO FRAME | ||
| 101 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 101 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 101 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 101 | N 000125008443 | WASHER |
| BRACKET TO FRAME | ||
| 104 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 104 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M8X25 | ||
| 104 | N 304017008034 | SCREW |
| BRACKET TO FRAME | ||
| M8X25 | ||
| 107 | A 4604920327 | CLAMPING BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 107 | A 4604920327 | CLAMPING BRACKET |
| EXHAUST PIPE TO BRACKET | ||
| 110 | A 4604920226 | CLAMPING PIECE |
| EXHAUST PIPE TO BRACKET | ||
| 110 | A 4604920226 | CLAMPING PIECE |
| EXHAUST PIPE TO BRACKET | ||
| 113 | N 000440009103 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 113 | N 000440009103 | WASHER |
| EXHAUST PIPE TO BRACKET | ||
| 116 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 116 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 116 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO BRACKET | ||
| 116 | A 1201420072 | HEXAGON NUT |
| EXHAUST PIPE TO BRACKET | ||
| 125 | A 4614900130 | PROTECTIVE PLATE |
| Repalced by: A 4614900230 | ||
| 125 | A 4614900230 | PROTECTIVE PLATE |
| ABOVE EXHAUST MUFFLER | ||
| 128 | N 304017006016 | SCREW |
| HEAT SHIELD TO FRAME | ||
| M 6X16 | ||
| 131 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 131 | N 009021006208 | WASHER |
| HEAT SHIELD TO FRAME | ||
| 131 | N 000125006421 | WASHER |
| HEAT SHIELD TO CROSS MEMBER | ||
| 134 | N 916017080000 | CLAMP |
| Repalced by: N 000000000675 | ||
| 134 | N 000000000675 | CLAMP |
| Repalced by: A 0059972990 | ||
| 134 | A 0059972990 | CLAMP |
| HEAT SHIELD TO FRAME | ||
| 82 - 105 X 15.8 MM | ||
| 137 | A 4604902330 | PROTECTIVE PLATE |
| CENTRAL | ||
| 140 | A 4604921030 | PROTECTIVE PLATE |
| CENTRAL | ||
| 143 | A 4614920530 | PROTECTIVE PLATE |
| 146 | N 000933006207 | SCREW |
| M 6X14 | ||
| 149 | N 304017006016 | SCREW |
| M 6X16 | ||
| 152 | N 000125006421 | WASHER |
| 155 | N 000934006007 | NUT |
| 158 | A 4604910501 | MUFFLER |
| CENTRAL | ||
| 161 | A 4614900521 | EXHAUST PIPE |
| REAR | ||
| 161 | A 4604902121 | EXHAUST PIPE |
| REAR | ||
| 164 | A 4614900121 | EXHAUST PIPE |
| REAR | ||
| 164 | A 4614900321 | EXHAUST PIPE |
| REAR | ||
| 167 | A 4604923030 | PROTECTIVE PLATE |
| EXHAUST MUFFLER TO FRAME | ||
| 170 | A 4609880411 | BUFFER |
| EXHAUST MUFFLER TO FRAME | ||
| 173 | A 4604920376 | WASHER |
| Repalced by: A 4634920176 | ||
| 173 | A 4634920176 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 176 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 176 | N 000125008443 | WASHER |
| EXHAUST MUFFLER TO FRAME | ||
| 179 | N 304032008006 | NUT |
| EXHAUST MUFFLER TO FRAME | ||
| 182 | A 4614920341 | BRACKET |
| Repalced by: A 1124900341 | ||
| 182 | A 1124900341 | CLAMP |
| EXHAUST PIPE TO MUFFLER | ||
| 185 | N 000931008327 | SCREW |
| Repalced by: N 304017008043 | ||
| 185 | N 304017008043 | SCREW |
| EXHAUST PIPE TO MUFFLER | ||
| M 8X55 | ||
| 188 | N 000433008406 | WASHER |
| EXHAUST PIPE TO MUFFLER | ||
| 191 | A 4604923641 | BRACKET |
| REAR EXHAUST PIPE TO CROSS MEMBER | ||
| 194 | A 4604927841 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 194 | A 4614922141 | BRACKET |
| Repalced by: A 4604927841 | ||
| 194 | A 4604927841 | BRACKET |
| CENTRAL EXHAUST PIPE | ||
| 197 | A 4614920641 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 197 | A 4614922241 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 197 | A 4614921841 | BRACKET |
| EXHAUST PIPE TO FRAME | ||
| 200 | A 4604920241 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 203 | A 4604924441 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 203 | A 4614922041 | BRACKET |
| REAR EXHAUST PIPE TO FRAME | ||
| 206 | A 4604921941 | BRACKET |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 209 | A 4614900240 | BRACKET |
| AT FRAME | ||
| 212 | N 000961014050 | SCREW |
| Repalced by: N 308676014020 | ||
| 212 | N 308676014020 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 14X35 | ||
| 212 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 212 | N 304017008016 | SCREW |
| BRACKET TO EXHAUST PIPE | ||
| M 8X16 | ||
| 215 | N 913004014002 | NUT |
| Repalced by: N 910113014001 | ||
| 215 | N 910113014001 | NUT |
| BRACKET TO EXHAUST PIPE | ||
| 215 | N 913004008007 | NUT |
| Repalced by: A 1201420072 | ||
| 215 | A 1201420072 | HEXAGON NUT |
| BRACKET TO EXHAUST PIPE | ||
| M8-CU | ||
| 218 | A 4604920682 | DAMPING PAD |
| EXHAUST PIPE TO CROSS MEMBER | ||
| 221 | A 4609880411 | BUFFER |
| EXHAUST PIPE TO FRAME | ||
| 227 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 227 | N 000125008443 | WASHER |
| EXHAUST PIPE TO FRAME | ||
| 230 | N 304032008006 | NUT |
| EXHAUST PIPE TO FRAME | ||
| 233 | A 4604901730 | PROTECTIVE PLATE |
| 236 | N 304017006016 | SCREW |
| PROTECTIVE PLATE TO CONSOLE | ||
| M 6X16 | ||
| 239 | N 000125006421 | WASHER |
| PROTECTIVE PLATE TO CONSOLE | ||
| 242 | N 006798006103 | SERRATED WASHER |
| PROTECTIVE PLATE TO CONSOLE | ||
| 245 | N 000934006007 | NUT |
| PROTECTIVE PLATE TO CONSOLE | ||
