Transporto priemonė: 290 GD; VIN numerio dalis: 461403

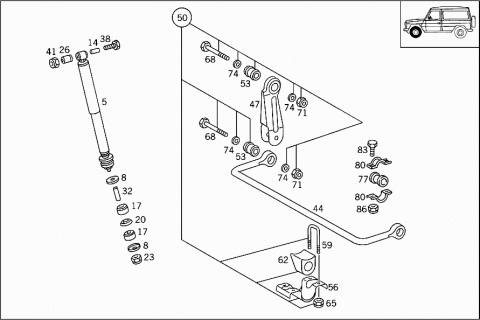

Grupė: 32 SPRINGS AND SUSPENSION - 065 FRONT AXLE TORSION BAR & SHOCK ABSORBERS

#	Kodas	Pavadinimas
005	A 0043237800	SHOCK ABSORBER
		FRONT
008	A 3173230667	RETAINER
008	A 3173230667	RETAINER
014	A 0003236350	BUSHING
017	A 3173230444	RUBBER BUFFER
020	A 0003230867	RETAINER
023	N 913004014005	NUT
	Repalced by: N 910113014000
023	N 910113014000	NUT
026	A 0003230685	RUBBER MOUNTING
032	A 0003232750	BUSHING
		BOTTOM
038	N 000960016134	SCREW
		SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE
		M16X1.5X130
038	N 000960016162	SCREW
		SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE
		M 16X1,5X150
041	N 913004016004	NUT
	Repalced by: N 910113016002
041	N 910113016002	NUT
		SHOCK ABSORBER TO SPRING SUPPORT AND TO SUBSTRUCTURE
044	A 4603230165	TORSION BAR
		FRONT
044	A 4603230265	TORSION BAR
		FRONT
047	A 4603200132	LINK
050	A 4613200144	RUBBER BUFFER
		PARTS KIT
050	A 4613200044	RUBBER BUFFER
		PARTS KIT
053	A 3093200073	BEARING
056	A 4623230040	BRACKET
		STABILIZER TO FRONT AXLE
056	A 4603230140	BRACKET
		STABILIZER TO FRONT AXLE
059	A 4603235026	CLAMP
		BRACKET TO TORSION BAR
062	A 4603230185	RUBBER MOUNTING
		STABILIZER TO FRONT AXLE
062	A 4603230285	RUBBER MOUNTING
		STABILIZER TO FRONT AXLE
065	N 913004010008	NUT
	Repalced by: N 910113010000
065	N 910113010000	NUT
		BRACKET TO TORSION BAR
068	N 000931012182	SCREW
		TORSION BAR TO FRAME
		M12X55
071	N 913002012004	NUT
		TORSION BAR TO FRAME
074	N 000125013008	WASHER
077	A 4613230085	RUBBER MOUNTING
080	A 1243231140	BRACKET
083	N 000933008154	SCREW
	Repalced by: N 304017008021
083	N 304017008021	SCREW
		M 8X22
086	N 913004008004	NUT
	Repalced by: N 913004008001
086	N 913004008001	NUT
