Transporto priemonė: 300 GD; VIN numerio dalis: 460323

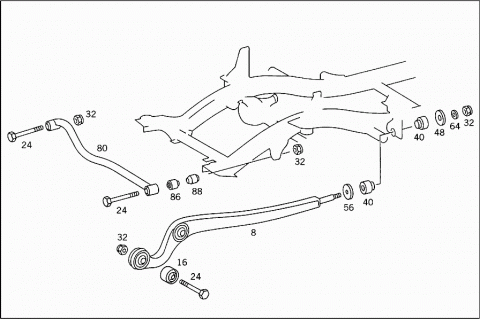

Grupė: 33 FRONT AXLE - 105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FRONT AXLE, SEE UNIT | ||
| 008 | A 4603300111 | THRUST ARM |
| FRONT AXLE | ||
| 008 | A 4633300011 | THRUST ARM |
| FRONT AXLE | ||
| 016 | A 4603330314 | BEARING |
| 024 | N 000960016105 | SCREW |
| THRUST ARM TO FRONT AXLE | ||
| 024 | N 000960016105 | SCREW |
| CONTROL ARM TO FRONT AXLE | ||
| 024 | N 000960016105 | SCREW |
| CONTROL ARM TO FRAME | ||
| 032 | N 913002016002 | NUT |
| THRUST ARM TO FRONT AXLE | ||
| 032 | N 913002016002 | NUT |
| THRUST ROD TO FRAME | ||
| 032 | N 913002016002 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| 032 | N 913002016002 | NUT |
| CONTROL ARM TO FRAME | ||
| 040 | A 4603520465 | RUBBER MOUNTING |
| THRUST ROD TO FRAME | ||
| 048 | A 4603520176 | WASHER |
| Repalced by: A 4603520476 | ||
| 048 | A 4603520476 | WASHER |
| THRUST ROD TO FRAME | ||
| 056 | A 4603520276 | WASHER |
| THRUST ROD TO FRAME | ||
| 064 | N 000125017010 | WASHER |
| Repalced by: N 000125017016 | ||
| 064 | N 000125017016 | WASHER |
| THRUST ROD TO FRAME | ||
| 080 | A 4613300007 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4633300407 | ||
| 080 | A 4633300407 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4633300707 | ||
| 080 | A 4633300707 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 080 | A 4603300307 | TRANSVERSE CONTROL ARM |
| FRONT AXLE | ||
| 086 | A 4603300050 | BUSHING |
| 088 | A 4603520565 | RUBBER MOUNTING |
