Transporto priemonė: 300 GD; VIN numerio dalis: 460323

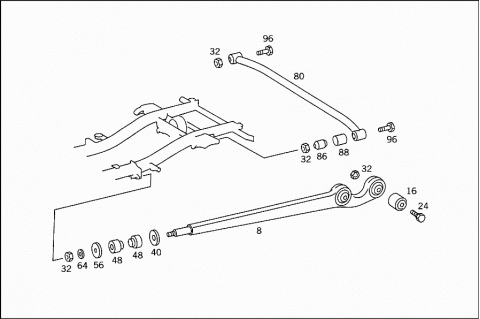

Grupė: 35 REAR AXLE - 090 REAR AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
| # | Kodas | Pavadinimas |
|---|---|---|
| X XXXXXXXXXXXX | PART NAME MISSING | |
| REAR AXLE, SEE UNIT | ||
| 008 | A 4613500006 | CONTROL ARM |
| LONGITUDINAL CONTROL ARM | ||
| 016 | A 4603525014 | BEARING |
| 016 | A 4603520665 | RUBBER MOUNTING |
| 024 | N 000960016244 | SCREW |
| LONGITUDINAL CONTROL ARM TO REAR AXLE | ||
| 032 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO REAR AXLE | ||
| 032 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 032 | N 913002016002 | NUT |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| 032 | N 913002016002 | NUT |
| TRANSVERSE CONTROL ARM TO FRAME | ||
| 040 | A 4603520276 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 048 | A 4603520465 | RUBBER MOUNTING |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 056 | A 4603520176 | WASHER |
| Repalced by: A 4603520476 | ||
| 056 | A 4603520476 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 064 | N 007349017002 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| Repalced by: N 007349017003 | ||
| 064 | N 007349017003 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 080 | A 4603500406 | CONTROL ARM |
| TRANSVERSE | ||
| 086 | A 4603300050 | BUSHING |
| 088 | A 4603520565 | RUBBER MOUNTING |
| 096 | N 000960016288 | SCREW |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| 096 | N 000960016288 | SCREW |
| TRANSVERSE CONTROL ARM TO FRAME | ||
