Transporto priemonė: 300 GD; VIN numerio dalis: 460325

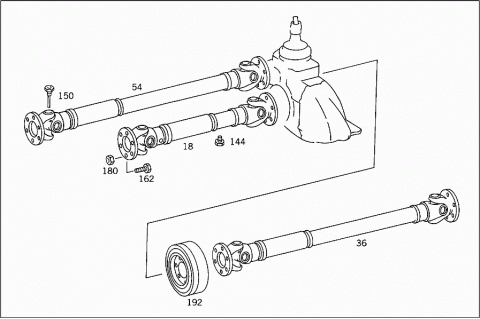

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 018 | A 4604101804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 512 MM | ||
| 018 | A 4604100218 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 018 | A 4604106604 | PROPELLER SHAFT |
| Repalced by: A 4604104704 | ||
| 018 | A 4604104704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 490 MM | ||
| 018 | A 4604104704 | PROPELLER SHAFT |
| 018 | A 4604101704 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 409 MM | ||
| 018 | A 4604103804 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 391 MM | ||
| 018 | A 4604106504 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 409 MM | ||
| 018 | A 4604103604 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 036 | A 4604101904 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 616 MM | ||
| 036 | A 4604100502 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1064 MM | ||
| 036 | A 4604104604 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 566 MM | ||
| 036 | A 4604104604 | PROPELLER SHAFT |
| 036 | A 4604104904 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1020 MM | ||
| 036 | A 4604104904 | PROPELLER SHAFT |
| 036 | A 4604104504 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 620 MM | ||
| 036 | A 4604105004 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1064 MM | ||
| 036 | A 4604106904 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 566 MM | ||
| 036 | A 4604103002 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 036 | A 4604109204 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 1280 MM | ||
| 054 | A 4604102004 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 936 MM | ||
| 054 | A 4604106804 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 054 | A 4604104304 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 936 MM | ||
| 144 | N 071412006101 | GREASE NIPPLE |
| 144 | N 003405006100 | GREASE NIPPLE |
| AM 6X1 | ||
| 144 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 144 | N 071412008102 | GREASE NIPPLE |
| AM 8X1 | ||
| 150 | A 0009972588 | GREASE NIPPLE |
| 150 | N 071412008101 | GREASE NIPPLE |
| Repalced by: N 071412008102 | ||
| 150 | N 071412008102 | GREASE NIPPLE |
| AM 8X1 | ||
| 162 | A 3199900601 | SCREW |
| PROPELLER SHAFTS TO TRANSMISSION, TRANSFER CASE AND REAR AXLE | ||
| M 8X22 | ||
| A 4609905201 | SCREW | |
| M 8X1X65 | ||
| 180 | N 913004008008 | NUT |
| Repalced by: N 910113008007 | ||
| 180 | N 910113008007 | NUT |
| PROPELLER SHAFTS TO TRANSMISSION, TRANSFER CASE AND REAR AXLE | ||
| 192 | A 4604100047 | VIBRATION DAMPER |
| Repalced by: A 4604100347 | ||
| 192 | A 4604100347 | VIBRATION DAMPER |
| FROM TRANSFER CASE TO REAR AXLE | ||
