Transporto priemonė: G320; VIN numerio dalis: 463209

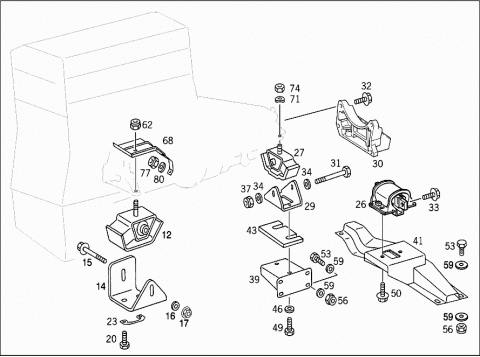

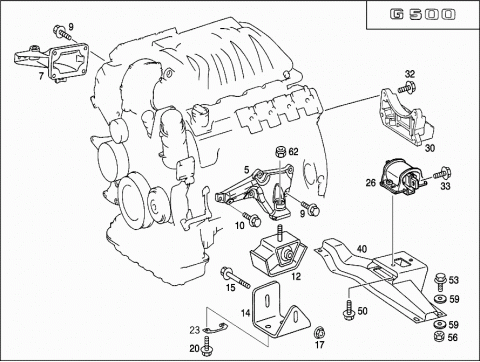

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1132230804 | ENGINE SUPPORT |
| ENGINE LEFT SUPPORT TO CYLINDER CRANKCASE | ||
| 007 | A 1132230904 | ENGINE SUPPORT |
| ENGINE RIGHT SUPPORT TO CYLINDER CRANKCASE | ||
| 009 | N 910143008003 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 010 | N 910143008010 | HEXALOBULAR BOLT |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| 012 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, YELLOW | ||
| 012 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| 012 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, YELLOW | ||
| 012 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| G55 AMG | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| G55 AMG | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| G55 AMG | ||
| 012 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| G55 AMG | ||
| 012 | A 4602406618 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| 012 | A 4602406618 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| 014 | A 4602420640 | BRACKET |
| FRONT RUBBER MOUNTING | ||
| 015 | N 000960010071 | SCREW |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| 015 | N 910105010004 | SCREW |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| 016 | N 000125010532 | WASHER |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| 017 | N 913004010010 | NUT |
| Repalced by: N 910113010002 | ||
| 017 | N 910113010002 | HEXAGON NUT |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| M10X1 | ||
| 017 | N 913023010002 | NUT |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| 020 | N 914114010023 | SCREW |
| ENGINE FRONT MOUNTING TO FRAME | ||
| 023 | A 4602410610 | SUPPORTING PLATE |
| ENGINE FRONT MOUNTING TO FRAME | ||
| 023 | H WA4632410110 | SUPPORTING PLATE |
| ENGINE FRONT MOUNTING TO FRAME | ||
| 026 | A 1402401818 | RUBBER MOUNTING |
| Repalced by: A 2202400518 | ||
| 026 | A 2202400518 | ENGINE MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| 026 | A 1402401318 | RUBBER MOUNTING |
| Repalced by: A 2202400218 | ||
| 026 | A 2202400218 | ENGINE MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| 026 | A 2202400418 | RUBBER MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| Repalced by: A 2122400318 | ||
| 026 | A 2122400318 | ENGINE SUPPORT |
| ENGINE REAR MOUNTING, RED | ||
| 026 | A 1402401218 | RUBBER MOUNTING |
| Repalced by: A 2202400118 | ||
| 026 | A 2202400118 | RUBBER MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| Repalced by: A 2202400418 | ||
| 026 | A 2202400418 | RUBBER MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| Repalced by: A 2122400318 | ||
| 026 | A 2122400318 | ENGINE SUPPORT |
| ENGINE REAR MOUNTING, RED | ||
| 027 | A 4602406318 | RUBBER MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| 029 | A 4602660240 | BRACKET |
| ENGINE REAR MOUNTING | ||
| 030 | A 1402421340 | BRACKET |
| AT TRANSMISSION,REAR | ||
| 031 | N 000931008251 | SCREW |
| RUBBER MOUNTING TO BRACKET | ||
| M 8X75 | ||
| 032 | N 910105008016 | SCREW |
| BRACKET AT TRANSMISSION REAR | ||
| M 8X30 | ||
| 033 | N 910105010018 | SCREW |
| ENGINE MOUNTING REAR AT BRACKET | ||
| M 10X35 | ||
| 034 | A 1169901440 | WASHER |
| RUBBER MOUNTING TO BRACKET | ||
| 037 | N 913002008004 | NUT |
| RUBBER MOUNTING TO BRACKET | ||
| 039 | A 4632600960 | SUPPORT |
| Repalced by: A 4632601060 | ||
| 039 | A 4632601060 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 040 | A 4632601660 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 041 | A 4632601560 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 043 | A 4632660642 | PLATE |
| 1.0 MM | ||
| 043 | A 4632660542 | PLATE |
| 1.5 MM | ||
| 043 | A 4632660442 | PLATE |
| 2.0 MM | ||
| 043 | A 4632660342 | PLATE |
| 2.5 MM | ||
| 046 | A 1169901440 | WASHER |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| 046 | A 6039900840 | WASHER |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| 049 | N 000933008212 | SCREW |
| Repalced by: N 304017008016 | ||
| 049 | N 304017008016 | SCREW |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| M 8X16 | ||
| 049 | N 000933008145 | SCREW |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| M 8X18 | ||
| 049 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 049 | N 304017008021 | SCREW |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| M 8X20 | ||
| 049 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 049 | N 304017008021 | SCREW |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| M 8X22 | ||
| 050 | N 910105008026 | SCREW |
| Repalced by: N 000000000276 | ||
| 050 | N 000000000276 | SCREW |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| M8X20 | ||
| 053 | N 000933008153 | SCREW |
| Repalced by: N 304017008034 | ||
| 053 | N 304017008034 | SCREW |
| SUPPORT TO FRAME | ||
| M 8X25 | ||
| 056 | N 913002008004 | NUT |
| SUPPORT TO FRAME | ||
| 059 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 059 | N 000125008443 | WASHER |
| SUPPORT TO FRAME | ||
| 059 | A 6039900840 | WASHER |
| SUPPORT TO FRAME | ||
| 059 | A 1169901440 | WASHER |
| SUPPORT TO FRAME | ||
| 062 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 062 | N 910113012003 | HEXAGON NUT |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| N 000125013008 | WASHER | |
| 068 | A 4604921430 | PROTECTIVE PLATE |
| 071 | N 000137012203 | SPRING WASHER |
| Repalced by: N 000137012206 | ||
| 071 | N 000137012206 | SPRING WASHER |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 074 | N 000934012022 | NUT |
| ENGINE TO ENGINE REAR MOUNTING | ||
| 077 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 077 | N 913004008001 | NUT |
| PROTECTIVE PLATE TO SUPPORT | ||
| 080 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 080 | N 000125008443 | WASHER |
| PROTECTIVE PLATE TO SUPPORT | ||
