Transporto priemonė: G320; VIN numerio dalis: 463209

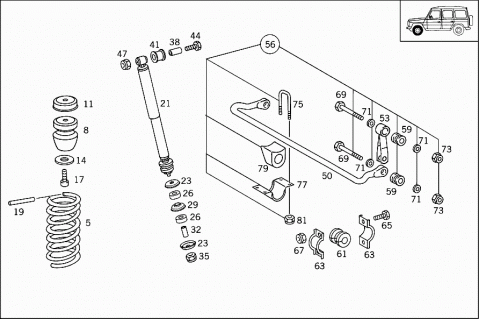

Grupė: 32 SPRINGS AND SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4603210204 | FRONT SPRING |
| YELLOW | ||
| 005 | A 4603215004 | FRONT SPRING |
| RUSSET BROWN | ||
| 005 | A 4603215004 | FRONT SPRING |
| RUSSET BROWN | ||
| 005 | A 4603210604 | FRONT SPRING |
| YELLOW-ORANGE | ||
| 005 | A 4603210404 | FRONT SPRING |
| WHITE | ||
| 005 | A 4633210004 | FRONT SPRING |
| BLUE | ||
| 008 | A 4603210206 | HELPER SPRING |
| Repalced by: A 4633210006 | ||
| 008 | A 4633210006 | HELPER SPRING |
| FRONT | ||
| 011 | A 4603220167 | RETAINER |
| FRONT HELPER SPRING | ||
| 014 | A 4613170376 | WASHER |
| FRONT HELPER SPRING | ||
| 017 | N 000912012008 | SCREW |
| FRONT HELPER SPRING | ||
| M 12X35 | ||
| 017 | N 000912012117 | SCREW |
| Repalced by: N 007984012011 | ||
| 017 | N 007984012011 | SCREW |
| FRONT HELPER SPRING | ||
| M 12X50 | ||
| 019 | A 4639972482 | HOSE |
| 021 | A 0063230200 | SHOCK ABSORBER |
| FRONT | ||
| BILSTEIN | ||
| 021 | H WA0053230100 | SHOCK ABSORBER |
| FRONT | ||
| BILSTEIN | ||
| 021 | A 0053234200 | SHOCK ABSORBER |
| FRONT | ||
| F & S | ||
| 021 | A 0053234200 | SHOCK ABSORBER |
| FRONT | ||
| F & S | ||
| 021 | A 0053234200 | SHOCK ABSORBER |
| FRONT | ||
| F & S | ||
| 021 | A 0063235700 | SHOCK ABSORBER |
| FRONT | ||
| 023 | A 0003231667 | RETAINER |
| BILSTEIN | ||
| 023 | A 0003231767 | RETAINER |
| BILSTEIN | ||
| 023 | A 3173230667 | RETAINER |
| F & S | ||
| 026 | A 3173230444 | RUBBER BUFFER |
| 029 | A 0003231867 | RETAINER |
| BILSTEIN | ||
| 029 | A 0003230867 | RETAINER |
| F & S | ||
| 032 | A 0003238050 | BUSHING |
| BILSTEIN | ||
| 032 | A 0003232750 | BUSHING |
| F & S | ||
| 035 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 035 | N 910113012003 | HEXAGON NUT |
| 035 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 035 | N 910113014000 | HEXAGON NUT |
| F & S | ||
| 038 | A 0003261950 | BUSHING |
| BILSTEIN | ||
| 038 | A 0003236350 | BUSHING |
| F & S | ||
| 041 | A 0003236885 | RUBBER MOUNTING |
| BILSTEIN | ||
| 041 | A 0003230685 | RUBBER MOUNTING |
| F & S | ||
| 044 | N 000960016134 | SCREW |
| FRONT AXLE SHOCK ABSORBER | ||
| M 16X1.5X130 | ||
| 047 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 047 | N 910113016002 | NUT |
| FRONT AXLE SHOCK ABSORBER | ||
| 050 | A 4633230165 | TORSION BAR |
| FRONT | ||
| 050 | A 4633230365 | TORSION BAR |
| FRONT | ||
| 050 | A 4633230265 | TORSION BAR |
| FRONT | ||
| 053 | A 4633200132 | LINK |
| 056 | A 4613200044 | RUBBER BUFFER |
| PARTS KIT | ||
| 059 | A 3093200073 | BEARING |
| 059 | A 3093200073 | BEARING |
| FRONT | ||
| 059 | A 3093200073 | BEARING |
| FRONT | ||
| 061 | A 1293230085 | RUBBER MOUNTING |
| Repalced by: A 1293230185 | ||
| 061 | A 1293230085 | RUBBER MOUNTING |
| Repalced by: A 1293230185 | ||
| 061 | A 1293230185 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 061 | A 1293230185 | RUBBER MOUNTING |
| TORSION BAR BEARING | ||
| 063 | A 1243231140 | BRACKET |
| STABILIZER | ||
| 065 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 065 | N 304017008021 | SCREW |
| STABILIZER | ||
| 067 | N 913004008004 | NUT |
| Repalced by: N 913004008001 | ||
| 067 | N 913004008001 | NUT |
| STABILIZER | ||
| 069 | N 000931012182 | SCREW |
| TORSION BAR TO LINK | ||
| M 12X55 | ||
| 071 | N 000125013008 | WASHER |
| 073 | N 913002012004 | NUT |
| TORSION BAR TO LINK | ||
| 075 | A 4603235026 | CLAMP |
| STABILIZER TO FRONT AXLE | ||
| 077 | A 4603230140 | BRACKET |
| STABILIZER TO FRONT AXLE | ||
| 079 | A 4603230285 | RUBBER MOUNTING |
| STABILIZER TO FRONT AXLE | ||
| 079 | A 4633230285 | RUBBER MOUNTING |
| STABILIZER TO FRONT AXLE | ||
| 081 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 081 | N 910113010000 | NUT |
| STABILIZER TO FRONT AXLE | ||

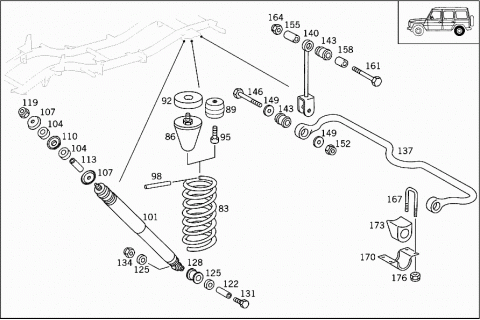

| 083 | A 4603240204 | REAR SPRING |
| YELLOW | ||
| 083 | A 4603240204 | REAR SPRING |
| YELLOW | ||
| 083 | A 4603240704 | REAR SPRING |
| YELLOW-ORANGE | ||
| 083 | A 4603240504 | REAR SPRING |
| WHITE | ||
| 083 | A 4633240004 | REAR SPRING |
| LILAC | ||
| 083 | A 4603241004 | REAR SPRING |
| AZURBLUE | ||
| 086 | A 4603200244 | RUBBER BUFFER |
| REAR | ||
| 086 | A 4603200244 | RUBBER BUFFER |
| REAR | ||
| 089 | A 4603245008 | HELPER SPRING |
| REAR | ||
| 089 | A 4603245008 | HELPER SPRING |
| REAR | ||
| 089 | A 4633210106 | HELPER SPRING |
| REAR | ||
| 092 | A 4603250915 | SPRING CASE |
| 092 | A 4603250915 | SPRING CASE |
| 095 | N 000912012008 | SCREW |
| REAR HELPER SPRING | ||
| M 12X35 | ||
| 098 | A 4609977282 | HOSE |
| Repalced by: A 4609977082 | ||
| 098 | A 4609977082 | HOSE |
| 515 MM | ||
| 098 | A 4639972482 | HOSE |
| 098 | A 0053260400 | SHOCK ABSORBER |
| REAR | ||
| 101 | A 0043260400 | SHOCK ABSORBER |
| REAR | ||
| F & S | ||
| 101 | A 0043260400 | SHOCK ABSORBER |
| REAR | ||
| F & S | ||
| 101 | A 0053261700 | SHOCK ABSORBER |
| REAR | ||
| 101 | H WA0043260100 | SHOCK ABSORBER |
| REAR | ||
| BILSTEIN | ||
| 101 | A 0053267600 | SHOCK ABSORBER |
| REAR | ||
| BILSTEIN | ||
| 104 | A 3173230444 | RUBBER BUFFER |
| 107 | A 3173230667 | RETAINER |
| F & S | ||
| 107 | A 0003231767 | RETAINER |
| BILSTEIN | ||
| 110 | A 0003230867 | RETAINER |
| F & S | ||
| 110 | A 0003231867 | RETAINER |
| BILSTEIN | ||
| 113 | A 0003232750 | BUSHING |
| F & S | ||
| 113 | A 0003238050 | BUSHING |
| BILSTEIN | ||
| 119 | N 913004014005 | NUT |
| Repalced by: N 910113014000 | ||
| 119 | N 910113014000 | NUT |
| 119 | N 913004012009 | NUT |
| Repalced by: N 910113012003 | ||
| 119 | N 910113012003 | HEXAGON NUT |
| 122 | A 0003261650 | BUSHING |
| F & S | ||
| A 0003262050 | BUSHING | |
| BILSTEIN | ||
| 125 | A 0003233150 | SPACER RING |
| F & S | ||
| 125 | A 0003260051 | SPACER RING |
| BILSTEIN | ||
| 128 | A 0003234785 | RUBBER MOUNTING |
| F & S | ||
| 128 | A 0003236885 | RUBBER MOUNTING |
| BILSTEIN | ||
| 131 | N 000960016164 | SCREW |
| Repalced by: N 000960016250 | ||
| 131 | N 000960016250 | SCREW |
| REAR AXLE SHOCK ABSORBER | ||
| M 16X1.5X85 | ||
| 134 | N 913004016004 | NUT |
| Repalced by: N 910113016002 | ||
| 134 | N 910113016002 | NUT |
| REAR AXLE SHOCK ABSORBER | ||
| 137 | A 4633260065 | TORSION BAR |
| REAR | ||
| 140 | A 4633200432 | LINK |
| REAR | ||
| 143 | A 3093200073 | BEARING |
| REAR | ||
| 146 | N 000931012179 | SCREW |
| TORSION BAR TO LINK | ||
| 149 | A 4603170076 | WASHER |
| TORSION BAR TO LINK | ||
| 152 | N 913002012004 | NUT |
| TORSION BAR TO LINK | ||
| 155 | A 4633260050 | BUSHING |
| LINK TO FRAME | ||
| 158 | A 4633260150 | BUSHING |
| LINK TO FRAME | ||
| 161 | N 000931012175 | SCREW |
| LINK TO FRAME | ||
| M 12X120 | ||
| 164 | N 913002012004 | NUT |
| LINK TO FRAME | ||
| 167 | A 4603230126 | CLAMP |
| STABILIZER TO FRONT AXLE | ||
| 170 | A 4603230040 | BRACKET |
| STABILIZER TO FRONT AXLE | ||
| 173 | A 4603230185 | RUBBER MOUNTING |
| STABILIZER TO FRONT AXLE | ||
| 176 | N 913004010008 | NUT |
| Repalced by: N 910113010000 | ||
| 176 | N 910113010000 | NUT |
| STABILIZER TO FRONT AXLE | ||
