Transporto priemonė: G320 / G36 AMG; VIN numerio dalis: 463208

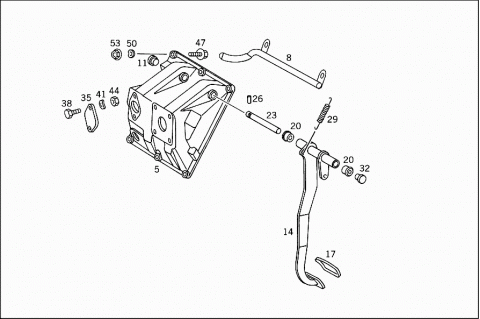

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4632940401 | BEARING BRACKET |
| 008 | A 4632900133 | BRACKET |
| CLUTCH PEDAL BEARING BRACKET | ||
| 011 | N 915042006000 | PLUG |
| 014 | A 4632901401 | PEDAL |
| BRAKE | ||
| 014 | A 4632901118 | PEDAL |
| BRAKE | ||
| 017 | A 1232910082 | PAD |
| 017 | A 1232910082 | PAD |
| 020 | A 1102910550 | BUSHING |
| Repalced by: A 1242920050 | ||
| 020 | A 1242920050 | BUSHING |
| 023 | A 4632920109 | SPINDLE |
| 026 | N 001473005019 | GROOVED PIN |
| 5 X 32 | ||
| 029 | A 4639930010 | SPRING |
| 032 | N 915042006000 | PLUG |
| 035 | A 4602940092 | COVER PLATE |
| 038 | N 000933008147 | SCREW |
| Repalced by: N 304017008021 | ||
| 038 | N 304017008021 | SCREW |
| M 8X20 | ||
| 041 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 041 | N 000137008212 | SPRING WASHER |
| 044 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 044 | N 304032008006 | NUT |
| 047 | N 914145008303 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X30 | ||
| 047 | N 000931008047 | SCREW |
| Repalced by: N 304017008018 | ||
| 047 | N 304017008018 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X35 | ||
| 047 | N 000931008248 | SCREW |
| Repalced by: N 304017008053 | ||
| 047 | N 304017008053 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X60 | ||
| 047 | N 000931008251 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X75 | ||
| 050 | N 000137008204 | SPRING WASHER |
| Repalced by: N 000137008212 | ||
| 050 | N 000137008212 | SPRING WASHER |
| 053 | N 000934008010 | NUT |
| Repalced by: N 304032008006 | ||
| 053 | N 304032008006 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
