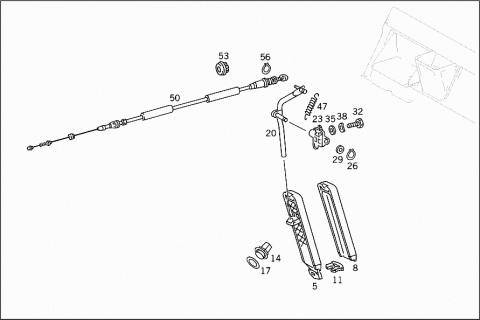

Transporto priemonė: G320 / G36 AMG; VIN numerio dalis: 463230
Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1263000504 | ACCELERATOR PEDAL |
| 008 | A 1233010082 | PAD |
| 011 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 014 | A 0003000041 | KICK-DOWN SWITCH |
| Repalced by: A 0003000141 | ||
| 014 | A 0003000141 | KICK-DOWN SWITCH |
| G 320 | ||
| 017 | A 1159970640 | SEAL RING |
| 020 | A 4633000325 | LEVER |
| 023 | A 2013010218 | BEARING |
| CONTROL SHAFT | ||
| 026 | N 000471012001 | LOCK RING |
| CONTROL SHAFT | ||
| 029 | N 000988013100 | FITTED WASHER |
| CONTROL SHAFT | ||
| 032 | N 000933006121 | SCREW |
| Repalced by: N 304017006020 | ||
| 032 | N 304017006020 | SCREW |
| BEARING TO CENTRAL FLOOR | ||
| M 6X20 | ||
| 035 | N 009021006205 | WASHER |
| Repalced by: N 009021006208 | ||
| 035 | N 009021006208 | WASHER |
| BEARING TO CENTRAL FLOOR | ||
| 038 | N 000137006204 | SPRING WASHER |
| BEARING TO CENTRAL FLOOR | ||
| 047 | A 1029931210 | SPRING |
| 050 | A 4633003830 | WIRE CABLE |
| 050 | A 4633003930 | WIRE CABLE |
| 053 | A 2013010285 | RUBBER BUFFER |
| BOWDEN CABLE TO FIRE WALL | ||
| 056 | N 006799005002 | LOCK PLATE |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| Repalced by: N 006799005004 | ||
| 056 | N 006799005004 | CIRCLIP |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
