Transporto priemonė: G65 AMG; VIN numerio dalis: 463274

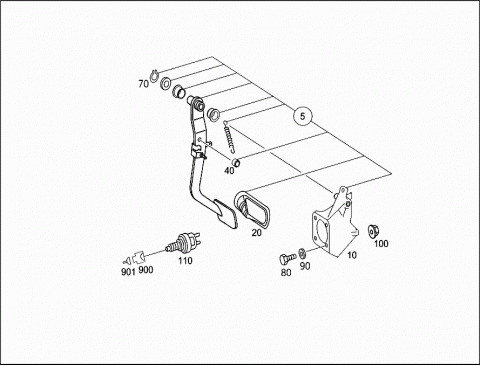

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4632905801 | PEDAL ASSEMBLY |
| 005 | A 4632906301 | PEDAL SYSTEM |
| 005 | A 4632906201 | PEDAL SYSTEM |
| 005 | A 4632906101 | PEDAL SYSTEM |
| 005 | A 4632906401 | PEDAL SYSTEM |
| 010 | A 2022901619 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 010 | A 2022901619 | BEARING BRACKET |
| PEDAL ASSEMBLY | ||
| 020 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 020 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 020 | A 2302900082 | PAD |
| BRAKE PEDAL | ||
| 040 | A 1262920050 | BUSHING |
| BRAKE PEDAL | ||
| 070 | A 0079942041 | FUSE |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 080 | N 304017008034 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8X25 | ||
| 080 | N 304017008034 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8X25 | ||
| 090 | N 000125008443 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 8 MM | ||
| Repalced by: N 000125008445 | ||
| 090 | N 000125008445 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 100 | N 000000003175 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 110 | A 0015456409 | BRAKE LIGHT SWITCH |
| STOP LIGHT SWITCH | ||
| 110 | A 0015456309 | SWITCH |
| STOP LIGHT SWITCH | ||
| 900 | A 2105454128 | PIN BUSHING HOUSING |
| STOP LIGHT SWITCH | ||
| 3-PIN JPT;S9/1 COD.A | ||
| 900 | A 2105456128 | PLUG HOUSING |
| STOP LIGHT SWITCH | ||
| 3-PIN JPT;S9/1 COD.B | ||
| 901 | A 0115458126 | CONTACT SPRING |
| 0.5-1.0 MM2 JPT | ||
