Transporto priemonė: G 270 CDI; VIN numerio dalis: 461302

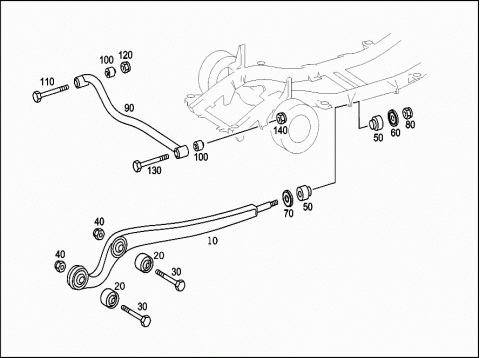

Grupė: 33 FRONT AXLE - 105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR FRONT AXLE,SEE UNIT STANDARD VERSION | ||
| 1106 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| DIFFERENTIAL LOCK CONTROL | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| SEE GROUP: | ||
| 28/070 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BREATHING,SEE SUBGROUP: | ||
| 28/090 | ||
| 010 | A 4603300111 | THRUST ARM |
| 020 | A 4603330314 | BEARING |
| 030 | N 000960016105 | SCREW |
| LONGITUDINAL CONTROL ARM TO FRONT AXLE | ||
| M16X1.5X80 | ||
| 040 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO FRONT AXLE | ||
| 050 | A 4603520465 | RUBBER MOUNTING |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 060 | A 4603520476 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 070 | A 4603520276 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 080 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| M16X1.5 | ||
| 090 | A 4633300707 | TRANSVERSE CONTROL ARM |
| 090 | A 4603300307 | TRANSVERSE CONTROL ARM |
| 100 | A 4603520565 | RUBBER MOUNTING |
| 110 | N 000960016105 | SCREW |
| CONTROL ARM TO FRONT AXLE | ||
| M16X1.5X80 | ||
| 120 | N 913002016002 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| 120 | N 913004016004 | NUT |
| CONTROL ARM TO FRONT AXLE | ||
| 130 | N 000960016105 | SCREW |
| CONTROL ARM TO FRAME | ||
| M16X1.5X80 | ||
| 140 | N 913004016004 | NUT |
| CONTROL ARM TO FRAME | ||
| 140 | N 913002016002 | NUT |
| CONTROL ARM TO FRAME |
