Transporto priemonė: G 270 CDI; VIN numerio dalis: 461302

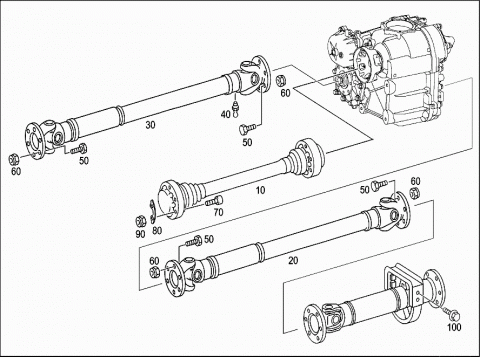

Grupė: 41 PROPELLER SHAFT
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 4634100902 | PROPELLER SHAFT |
| FROM TRANSMISSION TO TRANSFER CASE | ||
| 020 | A 4604102118 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO REAR AXLE | ||
| 030 | A 4604102218 | PROPELLER SHAFT |
| FROM TRANSFER CASE TO FRONT AXLE | ||
| 040 | N 003405008100 | GREASE NIPPLE |
| AM 8X1 | ||
| 050 | A 3199900601 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 050 | A 3199900601 | SCREW |
| PROPELLER SHAFT TO TRANSFER CASE, FRONT AXLE & REAR AXLE | ||
| 060 | N 910113008007 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 8X1-10.9 | ||
| 060 | N 910113008007 | NUT |
| PROPELLER SHAFT TO TRANSFER CASE, FRONT AXLE & REAR AXLE | ||
| M 8X1-10.9 | ||
| 070 | N 000912010203 | SCREW |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 10X1X80-10.9 | ||
| 080 | A 4634130084 | SHIM |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| 090 | N 910113010003 | NUT |
| PROPELLER SHAFT TO TRANSMISSION AND TO TRANSFER CASE | ||
| M 10-10 | ||
| 100 | N 910105010006 | SCREW |
| PROPELLER SHAFT TO CROSS MEMBER |
