Transporto priemonė: G 270 CDI; VIN numerio dalis: 461332

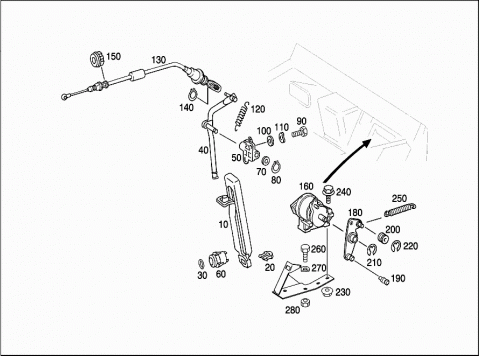

Grupė: 30 CONTROL
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1263000504 | ACCELERATOR PEDAL |
| 020 | A 1249888678 | CLIP |
| ACCELERATOR PEDAL TO BRACKET | ||
| 030 | A 1159970640 | SEAL RING |
| ACCELERATOR PEDAL TO BRACKET | ||
| 040 | A 4633000325 | LEVER |
| ACCELERATOR PEDAL | ||
| 040 | A 4633000425 | LEVER |
| ACCELERATOR PEDAL | ||
| 050 | A 2013010218 | BEARING |
| GOVERNOR SHAFT LEVER | ||
| 060 | A 0003000141 | KICK-DOWN SWITCH |
| 070 | N 000988013100 | FITTED WASHER |
| LEVER TO BEARING BRACKET | ||
| S 13X19 | ||
| 080 | N 000471012001 | LOCK RING |
| LEVER TO BEARING BRACKET | ||
| 12X1 | ||
| 090 | N 304017006020 | SCREW |
| MOUNTING TO FLOOR | ||
| M 6X20 | ||
| 090 | N 304017006016 | SCREW |
| MOUNTING TO FLOOR | ||
| M 6X16 | ||
| 100 | N 009021006208 | WASHER |
| MOUNTING TO FLOOR | ||
| 110 | N 000137006204 | SPRING WASHER |
| MOUNTING TO FLOOR | ||
| 110 | N 006798006103 | SERRATED WASHER |
| MOUNTING TO FLOOR | ||
| 120 | A 1029931210 | SPRING |
| MOUNTING TO FLOOR | ||
| 120 | A 4639930310 | SPRING |
| MOUNTING TO FLOOR | ||
| 130 | A 4633004130 | WIRE CABLE |
| 140 | N 006799005002 | LOCK PLATE |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| Repalced by: N 006799005004 | ||
| 140 | N 006799005004 | CIRCLIP |
| BOWDEN CABLE TO ACCELERATOR PEDAL LEVER | ||
| 150 | A 2013010285 | RUBBER BUFFER |
| BOWDEN CABLE TO FIRE WALL | ||
| 160 | A 0125423317 | SENDER UNIT |
| (PEDAL VALUE SENSOR) | ||
| 180 | A 2103001228 | LEVER |
| (REVERSING LEVER) | ||
| 190 | A 0009911720 | BALL PIVOT |
| 200 | A 2103010011 | ROLLER |
| 210 | N 006799005009 | LOCK PLATE |
| ROLLER TO LEVER | ||
| 220 | N 006799007007 | LOCK PLATE |
| ROLLER TO LEVER | ||
| 230 | N 910112006003 | NUT |
| MOUNTING FOR BRACKET FOR PEDAL VALUE SENSOR | ||
| 240 | N 304017006016 | SCREW |
| SENDER UNIT TO BRACKET | ||
| M 6X16 | ||
| 250 | A 2109930310 | SPRING |
| TO REVERSING LEVER AND BRACKET | ||
| 260 | N 304017008016 | SCREW |
| BRACKET TO PEDAL BEARING BRACKET | ||
| M 8X16 | ||
| 270 | N 000137008212 | SPRING WASHER |
| BRACKET TO PEDAL BEARING BRACKET | ||
| 280 | N 304032008006 | NUT |
| BRACKET TO PEDAL BEARING BRACKET | ||
