Transporto priemonė: G 300 CDI; VIN numerio dalis: 461305

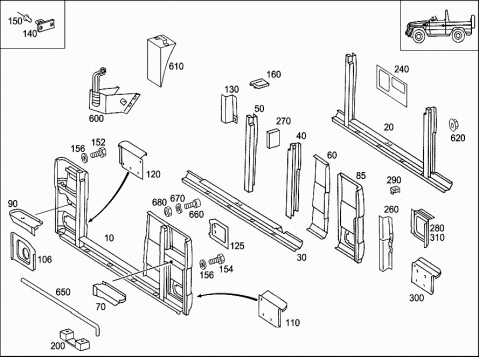

Grupė: 64 REAR END - 045 REAR PANEL, OPEN VEHICLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 4616406702 | REAR PANEL |
| 010 | A 4616405702 | REAR PANEL |
| 010 | A 4846403202 | REAR PANEL |
| 020 | A 4616400242 | FRAME |
| 030 | A 4616400071 | PANELLING |
| REAR BODY PANEL | ||
| 040 | A 4616400010 | PILLAR |
| LEFT | ||
| 050 | A 4606401810 | PILLAR |
| REAR END DOOR | ||
| 060 | A 4606470740 | END PIECE |
| BOTTOM REAR LEFT | ||
| 060 | A 4606470740 | END PIECE |
| BOTTOM REAR LEFT | ||
| 070 | A 4606470840 | END PIECE |
| LEFT | ||
| 085 | A 4636400009 | PANELLING |
| BOTTOM LEFT | ||
| 085 | A 4636400409 | PANELLING |
| BOTTOM REAR RIGHT | ||
| 085 | A 4616478507 | PANELLING |
| BOTTOM LEFT | ||
| 085 | A 4616478507 | PANELLING |
| BOTTOM LEFT | ||
| 085 | A 4616478007 | PANELLING |
| BOTTOM REAR RIGHT | ||
| 090 | A 4636470040 | END PIECE |
| RIGHT | ||
| 106 | A 4636470616 | REINFORCEMENT |
| BOTTOM RIGHT PANELLING | ||
| 106 | A 4846470215 | REINFORCEMENT |
| BOTTOM RIGHT PANELLING | ||
| 110 | A 4616402516 | REINFORCEMENT |
| RIGHT BETWEEN LOWER PANELING, CONNECTION AND REAR CROSS MEMBER | ||
| 120 | A 4616402616 | REINFORCEMENT |
| RIGHT,BETWEEN BOTTOM PANELING, CONNECTION AND REAR CROSS MEMBER | ||
| 125 | A 4606471616 | REINFORCEMENT |
| 125 | A 4616404716 | REINFORCEMENT |
| 125 | A 4606471616 | REINFORCEMENT |
| 125 | A 4606471616 | REINFORCEMENT |
| 125 | A 4846403116 | REINFORCEMENT |
| 130 | A 4606402216 | REINFORCEMENT |
| TOP LEFT | ||
| 130 | A 4606402116 | REINFORCEMENT |
| BOTTOM LEFT | ||
| 140 | A 4617910230 | TARPAULIN BOW |
| ROLL-OVER BAR | ||
| 140 | A 4607910430 | TARPAULIN BOW |
| ROLL-OVER BAR | ||
| 140 | A 4617910230 | TARPAULIN BOW |
| FRONT | ||
| 140 | A 4607910430 | TARPAULIN BOW |
| REAR | ||
| 150 | N 910002004110 | RIVET |
| ROLL-OVER BAR | ||
| 4.0X8 | ||
| 150 | N 910002004110 | RIVET |
| ROLL-OVER BAR | ||
| 4.0X8 | ||
| 150 | A 0039903497 | BLIND RIVET |
| ROLL-OVER BAR | ||
| 4X8 | ||
| 150 | N 007337004000 | BLIND RIVET |
| ROLL-OVER BAR | ||
| 4 X 16 MM | ||
| 152 | A 0009903204 | BOLT |
| ROLL-OVER BAR | ||
| 154 | N 000933010290 | BOLT |
| ROLL-OVER BAR | ||
| 156 | N 009021010209 | WASHER |
| ROLL-OVER BAR | ||
| 160 | A 4616410113 | PLATE |
| REAR LEFT | ||
| 160 | A 4616410313 | PLATE |
| REAR | ||
| 160 | A 4616410213 | PLATE |
| REAR RIGHT | ||
| 200 | A 4606100111 | PLATE |
| 240 | A 4606470816 | REINFORCEMENT |
| BOTTOM | ||
| 240 | A 4606470816 | REINFORCEMENT |
| BOTTOM | ||
| 260 | A 4606402316 | REINFORCEMENT |
| BOTTOM | ||
| 270 | A 4606400511 | STRUT |
| AT REINFORCEMENT | ||
| 280 | A 4616400316 | REINFORCEMENT |
| BOTTOM | ||
| 280 | A 4616405516 | REINFORCEMENT |
| 290 | A 0019903291 | NUT RETAINER |
| AT REINFORCEMENT | ||
| 300 | A 4616470016 | REINFORCEMENT |
| LEFT | ||
| 300 | A 4616471016 | REINFORCEMENT |
| LEFT | ||
| 310 | A 4616401916 | REINFORCEMENT |
| BOTTOM | ||
| 310 | A 4616405616 | REINFORCEMENT |
| BOTTOM RIGHT | ||
| 310 | A 4616405616 | REINFORCEMENT |
| BOTTOM RIGHT | ||
| 325 | A 4618630191 | REST |
| AT CLAMP | ||
| 330 | A 4618900110 | FIXTURE |
| AT REAR END | ||
| 330 | A 4618600310 | FIXTURE |
| 340 | A 4607910330 | TARPAULIN BOW |
| 350 | N 007337004015 | BLIND RIVET |
| 360 | A 4619915301 | PIN |
| 360 | A 4619915301 | PIN |
| 370 | A 4618900332 | CLAMP |
| 375 | A 3098960097 | PAD |
| AT FIXTURE | ||
| 377 | A 4619975095 | CATCH |
| AT CLAMP | ||
| 378 | A 0019877625 | EDGE GUARD |
| AT CLAMP | ||
| 380 | A 4609978282 | HOSE |
| AT FASTENER | ||
| 385 | A 0019876840 | RUBBER BUMPER |
| AT FIXTURE | ||
| 390 | A 4608930006 | KEY |
| AT FASTENER | ||
| 395 | N 910002004214 | RIVET |
| AT FIXTURE | ||
| 400 | N 304017008016 | HEXAGON HEAD BOLT |
| BRACKET MOUNTING | ||
| M8X16 | ||
| 410 | N 912004008103 | SPRING LOCK WASHER |
| BRACKET MOUNTING | ||
| 420 | A 3098960097 | PAD |
| CABLE CONDUIT | ||
| 424 | A 0009880266 | RING |
| LOCK | ||
| 430 | N 000000005645 | RIVET |
| CABLE CONDUIT | ||
| 440 | A 0009878440 | RUBBER BUMPER |
| CABLE CONDUIT | ||
| 450 | N 000000003718 | WASHER |
| CABLE CONDUIT | ||
| 500 | A 4618900508 | COVER |
| FOR BRACKET | ||
| 510 | A 4617780276 | STRAP |
| AT FIXTURE | ||
| 510 | A 4617780276 | STRAP |
| AT FIXTURE | ||
| 510 | A 4617780276 | STRAP |
| AT FIXTURE | ||
| 520 | N 007331004266 | RIVET |
| BELT | ||
| 530 | A 4617902035 | COVER |
| AT FIXTURE | ||
| 530 | A 4617902035 | COVER |
| AT FIXTURE | ||
| 550 | A 4618991911 | PLATE |
| FOR BRACKET | ||
| 560 | A 0019904997 | RIVET |
| FOR BRACKET | ||
| 570 | N 304017005003 | HEXAGON HEAD BOLT |
| BUFFER TO BRACKET | ||
| 580 | A 4619906240 | WASHER |
| BUFFER TO BRACKET | ||
| 580 | N 000433005304 | WASHER |
| BUFFER TO BRACKET | ||
| 5MM | ||
| 590 | A 0008900589 | CATCH |
| BOTTOM | ||
| 600 | A 4618903210 | FIXTURE |
| ATTACHMENT PARTS | ||
| 600 | A 4618903210 | FIXTURE |
| ATTACHMENT PARTS | ||
| 610 | A 4615830075 | CHOCK |
| ATTACHMENT PARTS | ||
| 610 | A 4615830075 | CHOCK |
| ATTACHMENT PARTS | ||
| 620 | N 910104006000 | NUT-AND-WASHER ASSEMBLY |
| BRACKET MOUNTING | ||
| M6 | ||
| 650 | A 0004290301 | LINE |
| 660 | N 000000002035 | HEXALOBULAR BOLT |
| LICENSE PLATE | ||
| M5X12 | ||
| 670 | N 000137005203 | SPRING WASHER |
| REAR LICENSE PLATE FASTENING | ||
| 680 | N 304032005005 | HEXAGON NUT |
| REAR LICENSE PLATE FASTENING | ||
| M 5 |
