Transporto priemonė: G 300 CDI; VIN numerio dalis: 461305

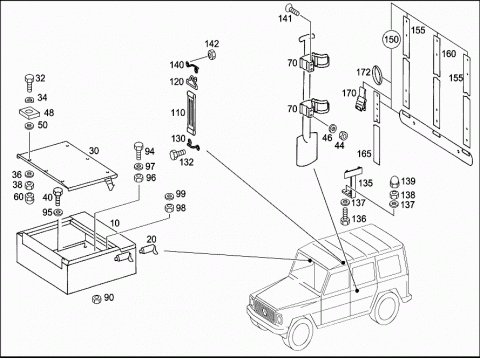

Grupė: 89 VEHICLE ACCESSORIES
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 4618900690 | TOOL BOX |
| CO-DRIVER'S SEAT | ||
| 020 | A 0009880764 | LATCH |
| TOOL BOX | ||
| 030 | A 4618901252 | COVER |
| TOOL BOX | ||
| 032 | A 4619840029 | BOLT |
| TOOL BOX | ||
| 034 | N 900055014002 | SPRING WASHER |
| TOOL BOX | ||
| 036 | N 000000003250 | WASHER |
| TOOL BOX | ||
| 038 | N 304032008012 | HEXAGON NUT |
| TOOL BOX | ||
| M8 | ||
| 040 | N 304017006027 | HEXAGON HEAD BOLT |
| M6X45 | ||
| 044 | N 304032005005 | HEXAGON NUT |
| SPADE FIXTURE | ||
| M 5 | ||
| 046 | N 000433005304 | WASHER |
| SPADE FIXTURE | ||
| 5MM | ||
| 048 | A 4618511911 | PLATE |
| TOOL BOX | ||
| 050 | A 6039900840 | WASHER |
| TOOL BOX | ||
| 060 | N 001587008015 | NUT |
| TOOL BOX | ||
| 070 | A 0008901889 | CATCH |
| SPADE FIXTURE | ||
| 090 | N 304032006004 | HEXAGON NUT |
| FIXTURE TO FRAME | ||
| M6 | ||
| 094 | N 304017006016 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M6X16 | ||
| 095 | N 000125006449 | WASHER |
| 096 | N 304032006004 | HEXAGON NUT |
| FIXTURE TO FRAME | ||
| M6 | ||
| 097 | N 000125006421 | WASHER |
| BRACKET TO FRAME | ||
| Repalced by: N 000125006449 | ||
| 097 | N 000125006449 | WASHER |
| 098 | N 304032005005 | HEXAGON NUT |
| FIXTURE TO FRAME | ||
| M 5 | ||
| 099 | N 000433005304 | WASHER |
| FIXTURE TO FRAME | ||
| 5MM | ||
| 110 | A 4609835294 | ELASTIC BAND |
| FLAGPOLE | ||
| 120 | A 4607920384 | HOOK |
| FLAGPOLE | ||
| 130 | A 4607510332 | CLAMP |
| FLAGPOLE | ||
| 132 | N 304017008016 | HEXAGON HEAD BOLT |
| BRACKET TO FRAME | ||
| M8X16 | ||
| 135 | A 4618909514 | BRACKET |
| SPADE | ||
| 136 | A 4619840029 | BOLT |
| TO RAIL | ||
| 137 | N 009021008213 | WASHER |
| 8 MM | ||
| Repalced by: N 000000003250 | ||
| 137 | N 000000003250 | WASHER |
| 138 | N 304032008012 | HEXAGON NUT |
| M8 | ||
| 139 | N 001587008012 | NUT |
| Repalced by: N 001587008015 | ||
| 139 | N 001587008015 | NUT |
| 140 | A 4607510332 | CLAMP |
| FLAGPOLE | ||
| 141 | N 000965006057 | SCREW |
| SPADE FIXTURE | ||
| 142 | N 304032005005 | HEXAGON NUT |
| AT CLAMP | ||
| M 5 | ||
| 150 | A 4618900181 | FIXTURE |
| COMOUFLAGE NETTING | ||
| 150 | A 4618900181 | FIXTURE |
| COMOUFLAGE NETTING | ||
| 155 | A 4618980277 | STRAP |
| LEFT | ||
| 160 | A 4618980377 | STRAP |
| RIGHT | ||
| 165 | A 4618980477 | STRAP |
| CENTRAL | ||
| 170 | A 4619885055 | BUCKLE |
| COMOUFLAGE NETTING | ||
| 172 | N 005296040101 | RING |
| COMOUFLAGE NETTING | ||
