Transporto priemonė: G 300 CDI; VIN numerio dalis: 461305

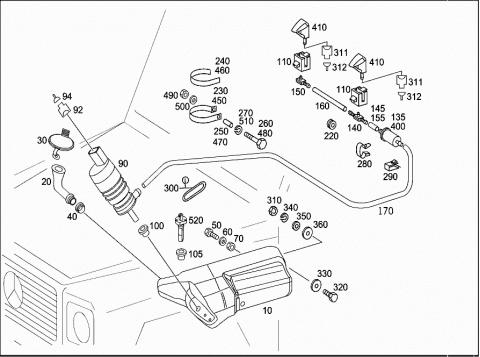

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER

#	Kodas	Pavadinimas
010	A 4618600160	DASHPOT
		PANE WASHER SYSTEM
010	A 4618690020	DASHPOT
		PANE WASHER SYSTEM
020	A 4638690266	FITTING
		FILLER NECK TO RESERVOIR
030	A 1408690108	COVER
		FILLER NECK
040	A 1409971681	GROMMET
		RESERVOIR
050	N 304017006016	HEXAGON HEAD BOLT
		RESERVOIR TO WHEELHOUSE
		M6X16
060	N 009021006208	WASHER
		RESERVOIR TO WHEELHOUSE
		6 MM
070	A 4609900151	NUT
		RESERVOIR TO WHEELHOUSE
070	N 910113006000	HEXAGON NUT
		MOUNTING, TANK
		M6
090	A 2108690821	PUMP
		PANE WASHER SYSTEM
092	A 0335450228	PIN BUSHING HOUSING
		WINDOW WASHER FLUID PUMP
		2-PIN JPT
094	A 0005452839	CORE BUNDLE SEALING
		0.5-1.0 MM
094	A 0005452939	CORE BUNDLE SEALING
		1.0-2.5 MM
100	A 1239973681	GROMMET
		PUMP TO RESERVOIR FASTENING
100	A 4609970881	GROMMET
		MOUNTING
100	A 1239973681	GROMMET
105	A 2209971981	GROMMET
		COOLING WATER LINE
110	A 4638850056	TAKE-UP DEVICE
		AT LEFT AND RIGHT NOZZLES
135	A 0008600862	CHECK VALVE
		WINDSHIELD WASHER
140	A 4638690022	DISTRIBUTOR
		FROM CONNECTOR TO LEFT AND RIGHT NOZZLES
145	A 0109978982	HOSE
		PANE WASHER SYSTEM
		4.6X1.8 MM
150	A 4638690024	CONNECTOR
		FROM CONNECTOR TO RESERVOIR
155	A 0109978982	HOSE
		PANE WASHER SYSTEM
		4.6X1.8 MM
160	A 0109978982	HOSE
		PANE WASHER SYSTEM
		4.6X1.8 MM;205 MM
170	A 0109978982	HOSE
		PANE WASHER SYSTEM
		4.6X1.8 MM;2330 MM
170	A 0109978982	HOSE
		4.6X1.8 MM
220	A 0009972081	GROMMET
		PANE WASHER SYSTEM
220	A 0009972081	GROMMET
		PANE WASHER SYSTEM
220	A 0009972081	GROMMET
		PANE WASHER SYSTEM
230	A 4609955410	CLAMP
		PUMP TO RESERVOIR
240	A 0009894498	SEALING STRIP
		PUMP TO RESERVOIR
250	A 1029910340	SPACER TUBE
		PUMP TO WHEELHOUSE
260	N 910143006005	HEXALOBULAR BOLT
		PUMP TO RESERVOIR
		M6X35
270	N 912004006102	SPRING LOCK WASHER
		PUMP TO RESERVOIR
280	A 0009956044	CLAMP
		LINE MOUNTING
		6.5 X 12.8 MM
280	A 0009956144	CLAMP
		WATER HOSE ON ENGINE HOOD CROSS MEMBER
		6.5 X 14.5 MM
290	A 0009881878	CLIP
		WATER HOSE FASTENING
300	A 4608690298	SEAL
		BETWEEN WATER RESERVOIR & WHEELHOUSE
300	A 4608690598	SEAL
		FASTENING, CONTAINER, WHEELHOUSE LINER, RIGHT
310	N 304032006004	HEXAGON NUT
		FASTENING, CONTAINER, WHEELHOUSE LINER, RIGHT
		M6
311	A 2105402081	PIN BUSHING HOUSING
		WATER LEVEL CONTROL SWITCH WINDSHIELD WASHER SYSTEM
		2-PIN MQS
312	A 0005456880	SEAL
		0.9-1.4 MM
312	A 0005456980	GASKET
		1.4-1.9 MM
320	N 304017006020	HEXAGON HEAD BOLT
		FASTENING, CONTAINER, WHEELHOUSE LINER, RIGHT
		M6X20
330	N 009021006208	WASHER
		FASTENING, CONTAINER, WHEELHOUSE LINER, RIGHT
		6 MM
340	N 912004006102	SPRING LOCK WASHER
		FASTENING, CONTAINER, WHEELHOUSE LINER, RIGHT
350	N 000125006421	WASHER
		MOUNTING, TANK
	Repalced by: N 000125006449
350	N 000125006449	WASHER
		MOUNTING, TANK
360	A 4609908540	WASHER
		FASTENING, CONTAINER, WHEELHOUSE LINER, RIGHT
400	A 0008600862	CHECK VALVE
410	A 4618600047	NOZZLE
		PANE WASHER SYSTEM
450	A 4609955410	CLAMP
		PUMP TO WHEELHOUSE
460	A 0009894498	SEALING STRIP
		PUMP TO WHEELHOUSE
470	A 4609915840	SPACER TUBE
		PUMP TO WHEELHOUSE
480	N 304017006027	HEXAGON HEAD BOLT
		PUMP TO WHEELHOUSE
		M6X45
490	N 304032006004	HEXAGON NUT
		PUMP TO WHEELHOUSE
		M6
500	N 000125006421	WASHER
		PUMP TO WHEELHOUSE
	Repalced by: N 000125006449
500	N 000125006449	WASHER
		PUMP TO WHEELHOUSE
510	N 912004006102	SPRING LOCK WASHER
		PUMP TO WHEELHOUSE
520	A 4615400145	SWITCH
		WASHING WATER STATUS
540	A 4618600260	DASHPOT
		HEADLAMP WIPER/WASHER
545	A 2108691121	PUMP
		HEADLAMP CLEANING SYSTEM
550	A 0008693847	NOZZLE
		HEADLAMP CLEANING SYSTEM
552	N 000000000453	TAPPING SCREW
		MOUNTING, NOZZLE
		MBN 10169 4.2 X 13
555	A 0008600162	VALVE
		HEADLAMP CLEANING SYSTEM
560	A 0008691222	DISTRIBUTOR
		HEADLAMP CLEANING SYSTEM
565	A 0008692694	HOSE
		BETWEEN VALVE AND LEFT NOZZLE
565	A 0008692694	HOSE
		BETWEEN VALVE AND RIGHT NOZZLE
565	A 0008692694	HOSE
		BETWEEN PUMP & VALVE
570	A 0049979790	LOOM TIE
		HOSE ATTACHMENT
