Transporto priemonė: G 300 CDI; VIN numerio dalis: 461340

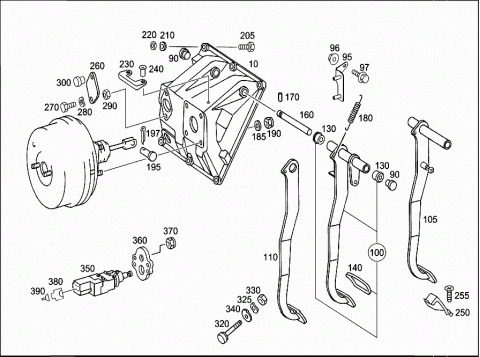

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 4632940101 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 010 | A 4612940601 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 010 | A 4632940401 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 010 | A 4612940801 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 010 | A 4612940801 | BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 010 | A 4612940701 | PEDAL BEARING BRACKET |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| A 461 290 21 18 BEI / BY CODE US7 | ||
| 010 | A 4612940901 | PEDAL BEARING BRACKET |
| PEDAL BEARING BRACKET | ||
| 010 | A 4612941001 | PEDAL BEARING BRACKET |
| 010 | A 4612941101 | PEDAL BEARING BRACKET |
| 010 | A 4612941101 | PEDAL BEARING BRACKET |
| 090 | N 915042007001 | STOP PLUG |
| TO PLUG THE BORES | ||
| 7.5 MM | ||
| 090 | N 915042007001 | STOP PLUG |
| BRAKE PEDAL | ||
| 7.5 MM | ||
| 090 | N 915042006000 | STOP PLUG |
| BRAKE PEDAL | ||
| 6.5 MM | ||
| 090 | N 915042006000 | STOP PLUG |
| TO PLUG THE BORES | ||
| 6.5 MM | ||
| 090 | N 915042006000 | STOP PLUG |
| TO PLUG THE BORES | ||
| 6.5 MM | ||
| 090 | N 915042005000 | STOP PLUG |
| TO PLUG THE BORES | ||
| 5.5 MM | ||
| 090 | N 915042005000 | STOP PLUG |
| TO PLUG THE BORES | ||
| 5.5 MM | ||
| 090 | N 915042005000 | STOP PLUG |
| TO PLUG THE BORES | ||
| 5.5 MM | ||
| 095 | A 4615003431 | BRACKET |
| TO PEDAL ASSEMBLY | ||
| 096 | N 910112006003 | HEXAGON NUT |
| BRACKET MOUNTING | ||
| M6 | ||
| 097 | N 910143006001 | HEXALOBULAR BOLT |
| BRACKET MOUNTING | ||
| M6X16 | ||
| 100 | A 4612901918 | BRAKE PEDAL |
| 100 | A 4612902118 | BRAKE PEDAL |
| EXCHANGEABLE TOGETHER ONLY WITH: | ||
| A 461 294 07 01 BEI / BY CODE US7 | ||
| 100 | A 4612902318 | BRAKE PEDAL |
| 100 | A 4632902901 | PEDAL |
| BRAKE PEDAL | ||
| 105 | A 4632905001 | PEDAL |
| BRAKE PEDAL | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 110 | A 4632901118 | PEDAL |
| BRAKE PEDAL | ||
| 130 | A 1102910550 | BUSHING |
| BRAKE PEDAL | ||
| 140 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 160 | A 4632920109 | SPINDLE |
| BRAKE PEDAL | ||
| 160 | A 4612920209 | SPINDLE |
| BRAKE PEDAL | ||
| 160 | A 4632920109 | SPINDLE |
| BRAKE PEDAL | ||
| 160 | A 4602920009 | SPINDLE |
| BRAKE PEDAL | ||
| 160 | A 4612920209 | SPINDLE |
| BRAKE PEDAL | ||
| 170 | N 001473005019 | GROOVED PIN |
| BRAKE PEDAL | ||
| 180 | A 4639930010 | SPRING |
| BRAKE PEDAL | ||
| 180 | A 1809931010 | SPRING |
| BRAKE PEDAL | ||
| 185 | N 000125008445 | WASHER |
| BRAKE UNIT TO PEDAL BRACKET | ||
| 190 | N 910113008003 | HEXAGON NUT |
| BRAKE UNIT TO PEDAL BRACKET | ||
| M8 | ||
| 195 | N 001444008204 | PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 195 | A 0002920009 | PEDAL HINGE PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 197 | N 000094002060 | COTTER PIN |
| BRAKE BOOSTER ASSEMBLY TO PEDAL | ||
| 2,0X14 | ||
| 205 | N 914145008302 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 X 25 | ||
| 205 | N 304017008018 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8X35 | ||
| 205 | N 304017008028 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 205 | N 304017008053 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8X60 | ||
| 205 | N 000931008251 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 205 | N 914145008302 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 X 25 | ||
| 205 | N 000933008145 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 X 18 | ||
| 205 | N 304017008016 | HEXAGON HEAD BOLT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8X16 | ||
| 210 | N 912004008102 | SPRING LOCK WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 210 | N 000137008212 | SPRING WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 210 | N 000000003250 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 220 | N 304032008006 | HEXAGON NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M8 | ||
| 230 | A 4607660269 | BRACKET |
| TO PEDAL BEARING BRACKET | ||
| 240 | N 007337004004 | BLIND RIVET |
| TO PEDAL BEARING BRACKET | ||
| 250 | A 4619760160 | FOOTREST |
| CLUTCH PEDAL | ||
| 255 | N 000000001935 | HEXALOBULAR BOLT |
| CLUTCH PEDAL | ||
| M5X16 | ||
| 260 | A 4602940192 | COVER PLATE |
| TOEBOARD;LEFT | ||
| 260 | A 4602940092 | COVER PLATE |
| TOEBOARD;RIGHT | ||
| 270 | N 000933008145 | SCREW |
| COVER PLATE | ||
| M8 X 18 | ||
| 280 | N 000137008212 | SPRING WASHER |
| COVER PLATE | ||
| 290 | N 304032008006 | HEXAGON NUT |
| COVER PLATE | ||
| M8 | ||
| 300 | N 915042007001 | STOP PLUG |
| COVER PLATE | ||
| 7.5 MM | ||
| 320 | A 1108800017 | STOP SCREW |
| CLUTCH PEDAL | ||
| 325 | N 000137006204 | SPRING WASHER |
| STOP | ||
| 325 | N 000125006449 | WASHER |
| STOP | ||
| 330 | N 304032006004 | HEXAGON NUT |
| STOP | ||
| M6 | ||
| 340 | N 009021006208 | WASHER |
| STOP | ||
| 6 MM | ||
| 350 | A 0015456409 | BRAKE LIGHT SWITCH |
| STOP LIGHT SWITCH | ||
| 360 | A 4635456340 | BRACKET |
| STOP LIGHT SWITCH TO BRACKET | ||
| 370 | N 910113005001 | HEXAGON NUT |
| STOP LIGHT SWITCH TO BRACKET | ||
| M5 | ||
| 380 | A 2105454128 | PIN BUSHING HOUSING |
| STOP LAMP SWITCH, CODING A | ||
| 3-PIN JPT | ||
| 380 | A 2105456128 | PLUG HOUSING |
| STOP LAMP SWITCH, CODING B | ||
| 3-PIN JPT | ||
| 390 | A 0295455528 | PIN BUSHING HOUSING |
| FROM STOP LIGHT SWITCH PLUG-CONNECTION TO FUSE AND TO RELAY | ||
| 3-PIN MQS |
