Transporto priemonė: G 300 CDI; VIN numerio dalis: 461340

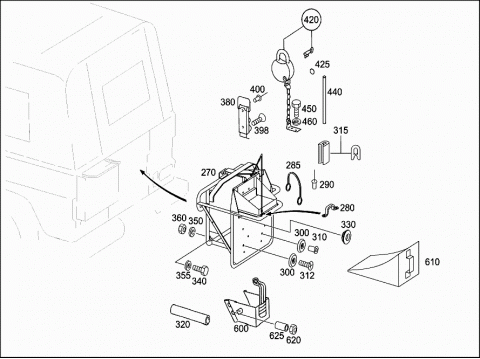

Grupė: 64 REAR END - 060 REAR PANEL,ENCLOSED VEHICLE
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 4616405602 | REAR PANEL |
| 010 | A 4616406602 | REAR PANEL |
| 010 | A 4616406202 | REAR PANEL |
| 010 | A 4616400401 | REAR PANEL |
| 010 | A 4616400301 | REAR PANEL |
| 010 | A 4616400501 | REAR PANEL |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 010 | A 4616406102 | REAR PANEL |
| 010 | A 4616406402 | REAR PANEL |
| 010 | A 4616406902 | REAR PANEL |
| 010 | A 4616407202 | REAR PANEL |
| 010 | A 4846402402 | REAR PANEL |
| 010 | A 4846402202 | REAR PANEL |
| 010 | A 4616407102 | REAR PANEL |
| 010 | A 4616407102 | REAR PANEL |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 010 | A 4616406402 | REAR PANEL |
| 010 | A 4616406402 | REAR PANEL |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 020 | A 4636400171 | PANELLING |
| REAR BODY PANEL,BOTTOM OUTSIDE | ||
| 020 | A 4606400071 | PANELLING |
| 020 | A 4636400371 | PANELLING |
| 030 | A 4606401510 | PILLAR |
| LEFT | ||
| 030 | A 4606400510 | PILLAR |
| LEFT | ||
| 038 | A 4616400517 | MOUNTING ANGLE |
| 040 | A 4606401610 | PILLAR |
| REAR END DOOR | ||
| 040 | A 4606400610 | PILLAR |
| REAR END DOOR | ||
| 045 | A 4606200111 | PLATE |
| 050 | A 4606500501 | ROOF RAIL |
| 050 | A 4606500201 | ROOF RAIL |
| 060 | A 4636400009 | PANELLING |
| LEFT BOTTOM | ||
| 060 | A 4636400809 | PANELLING |
| BOTTOM LEFT | ||
| 060 | A 4616479107 | PANELLING |
| REAR LEFT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 060 | A 4616479107 | PANELLING |
| REAR LEFT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 060 | A 4616479107 | PANELLING |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 060 | A 4616478307 | PANELLING |
| REAR BOTTOM LEFT | ||
| 070 | A 4636400309 | PANELLING |
| RIGHT BOTTOM | ||
| 070 | A 4636400909 | PANELLING |
| RIGHT BOTTOM | ||
| 070 | A 4616478807 | PANELLING |
| RIGHT BOTTOM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 070 | A 4616478207 | PANELLING |
| REAR BOTTOM RIGHT | ||
| 070 | A 4616478807 | PANELLING |
| RIGHT BOTTOM | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 070 | A 4616478007 | PANELLING |
| REAR BOTTOM RIGHT | ||
| 070 | A 4616478807 | PANELLING |
| REAR BOTTOM RIGHT | ||
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| Y YYYYYYYYYYYY | PART NAME MISSING | |
| 080 | A 4636470907 | PANELLING |
| LEFT TOP | ||
| 080 | A 4616472707 | PANELLING |
| TOP LEFT | ||
| 080 | A 4616479507 | PANELLING |
| REAR LEFT | ||
| 080 | A 4616402709 | PANELLING |
| REAR LEFT | ||
| 080 | A 4606470507 | PANELLING |
| TOP LEFT | ||
| 080 | A 4606470507 | PANELLING |
| TOP LEFT | ||
| 080 | A 4846472107 | PANELLING |
| REAR LEFT | ||
| 090 | A 4606470807 | PANELLING |
| TOP RIGHT | ||
| 090 | A 4616472807 | PANELLING |
| RIGHT TOP | ||
| 090 | A 4616479407 | PANELLING |
| REAR RIGHT | ||
| 090 | A 4616403009 | PANELLING |
| REAR RIGHT | ||
| 090 | A 4606470607 | PANELLING |
| TOP RIGHT | ||
| 090 | A 4846472207 | PANELLING |
| REAR RIGHT TOP | ||
| 090 | A 4616479807 | PANELLING |
| REAR RIGHT TOP | ||
| 090 | A 4846472007 | PANELLING |
| REAR RIGHT TOP | ||
| 090 | A 4616479407 | PANELLING |
| REAR RIGHT TOP | ||
| 100 | A 4636470040 | END PIECE |
| RIGHT | ||
| 110 | A 4606470540 | END PIECE |
| LEFT | ||
| 110 | A 4616470601 | END PIECE |
| LEFT | ||
| 110 | A 4606470340 | END PIECE |
| LEFT | ||
| 130 | A 4616403216 | REINFORCEMENT |
| LEFT | ||
| 130 | A 4616402316 | REINFORCEMENT |
| FOR ANTENNA | ||
| 130 | A 4616402416 | REINFORCEMENT |
| RIGHT OUTSIDE REAR | ||
| 130 | A 4616403316 | REINFORCEMENT |
| RIGHT | ||
| 140 | A 4619910740 | SPACER TUBE |
| PREEQUIPMENT FOR ANTENNA | ||
| 140 | A 4619910740 | SPACER TUBE |
| PREEQUIPMENT FOR ANTENNA | ||
| 142 | N 000931008266 | SCREW |
| PREEQUIPMENT FOR ANTENNA | ||
| 144 | N 000137008214 | SPRING WASHER |
| PREEQUIPMENT FOR ANTENNA | ||
| 144 | N 000137008214 | SPRING WASHER |
| PREEQUIPMENT FOR ANTENNA | ||
| 150 | A 2019970281 | GROMMET |
| PREEQUIPMENT FOR ANTENNA | ||
| 150 | A 2019970281 | GROMMET |
| PREEQUIPMENT FOR ANTENNA | ||
| 210 | A 4636470616 | REINFORCEMENT |
| BOTTOM RIGHT PANELLING | ||
| 210 | A 4636470216 | REINFORCEMENT |
| BOTTOM LEFT PANELLING | ||
| 220 | A 4616402516 | REINFORCEMENT |
| RIGHT BETWEEN LOWER PANELING, CONNECTION AND REAR CROSS MEMBER | ||
| 220 | A 4616404416 | REINFORCEMENT |
| RIGHT BETWEEN LOWER PANELING, CONNECTION AND REAR CROSS MEMBER | ||
| 230 | A 4616402616 | REINFORCEMENT |
| RIGHT,BETWEEN BOTTOM PANELING, CONNECTION AND REAR CROSS MEMBER | ||
| 230 | A 4616406816 | REINFORCEMENT |
| RIGHT,BETWEEN BOTTOM PANELING, CONNECTION AND REAR CROSS MEMBER | ||
| 240 | A 0009880528 | PLUG |
| REAR BODY PANEL,BOTTOM | ||
| 240 | A 0019971686 | STOP PLUG |
| REAR BODY PANEL,BOTTOM | ||
| 245 | A 4606100111 | PLATE |
| 245 | A 4606100111 | PLATE |
| 250 | A 4606400716 | REINFORCEMENT |
| 250 | A 4606400416 | REINFORCEMENT |
| BOTTOM LEFT | ||
| 250 | A 4606470616 | REINFORCEMENT |
| BOTTOM RIGHT | ||
| 250 | A 4636400716 | REINFORCEMENT |
| BOTTOM | ||
| 270 | A 4618900077 | FIXTURE |
| AT REAR END | ||
| 270 | A 4618900077 | FIXTURE |
| AT REAR END | ||
| 270 | A 4618902377 | MOUNT |
| AT REAR END | ||
| 270 | A 4618902377 | MOUNT |
| AT REAR END | ||
| 280 | A 4607510332 | CLAMP |
| 285 | A 4618600145 | WIRE CABLE |
| 285 | A 4618600145 | WIRE CABLE |
| 290 | A 0039903897 | RIVET |
| 4.8X9 | ||
| Repalced by: A 0029906297 | ||
| 290 | A 0029906297 | RIVET |
| 300 | A 3098960097 | PAD |
| 310 | A 0039903897 | RIVET |
| SHIM | ||
| 4.8X9 | ||
| Repalced by: A 0029906297 | ||
| 310 | A 0029906297 | RIVET |
| SHIM | ||
| 312 | N 000966005078 | SCREW |
| SHIM | ||
| M5X10-8.8-H | ||
| 315 | A 0019877625 | EDGE GUARD |
| FOR BRACKET | ||
| 315 | A 0019877625 | EDGE GUARD |
| 320 | A 4618630191 | REST |
| AT CLAMP | ||
| 320 | A 4618630191 | REST |
| AT CLAMP | ||
| 330 | A 2019970281 | GROMMET |
| LICENSE PLATE LAMP CABLE | ||
| 330 | A 2019970281 | GROMMET |
| LICENSE PLATE LAMP CABLE | ||
| 340 | A 0009903204 | BOLT |
| JERRICAN TO REAR END DOOR | ||
| 350 | N 009021010209 | WASHER |
| JERRICAN TO REAR END DOOR | ||
| 355 | N 000125010532 | WASHER |
| JERRICAN TO REAR END DOOR | ||
| Repalced by: N 000000003386 | ||
| 355 | N 000000003386 | WASHER |
| JERRICAN TO REAR END DOOR | ||
| 355 | N 000000005059 | WASHER |
| JERRICAN TO REAR END DOOR | ||
| 360 | N 304032010003 | HEXAGON NUT |
| JERRICAN TO REAR END DOOR | ||
| 380 | A 4619975095 | CATCH |
| 380 | A 4619975095 | CATCH |
| 380 | A 4619975095 | CATCH |
| 398 | N 000966005078 | SCREW |
| AT BRACKET | ||
| M5X10-8.8-H | ||
| 400 | N 000966005078 | SCREW |
| AT BRACKET | ||
| M5X10-8.8-H | ||
| 400 | N 000966005078 | SCREW |
| M5X10-8.8-H | ||
| 400 | N 000966005078 | SCREW |
| M5X10-8.8-H | ||
| 420 | A 4615800084 | LOCK |
| 420 | A 4615800084 | LOCK |
| 425 | A 0009880266 | RING |
| LOCK | ||
| 440 | A 4609978282 | HOSE |
| AT FASTENER | ||
| 450 | N 304017008016 | HEXAGON HEAD BOLT |
| BRACKET MOUNTING | ||
| M8X16 | ||
| 450 | N 304017008016 | HEXAGON HEAD BOLT |
| BRACKET MOUNTING | ||
| M8X16 | ||
| 460 | N 912004008103 | SPRING LOCK WASHER |
| BRACKET MOUNTING | ||
| 470 | A 0009972381 | GROMMET |
| ROOF REAR RAIL | ||
| 480 | N 304017006034 | HEXAGON HEAD BOLT |
| GROUND CABLE TO ROOF RAIL | ||
| Repalced by: N 000933006123 | ||
| 480 | N 000933006123 | SCREW |
| GROUND CABLE TO ROOF RAIL | ||
| 490 | N 000137006204 | SPRING WASHER |
| GROUND CABLE TO ROOF RAIL | ||
| 490 | N 000125006449 | WASHER |
| GROUND CABLE TO ROOF RAIL | ||
| 500 | A 0009972381 | GROMMET |
| ROOF RAIL | ||
| 600 | A 4618903210 | FIXTURE |
| ATTACHMENT PARTS | ||
| 600 | A 4618903210 | FIXTURE |
| ATTACHMENT PARTS | ||
| 600 | A 4618903210 | FIXTURE |
| CHOCK | ||
| 610 | A 4615830075 | CHOCK |
| ATTACHMENT PARTS | ||
| 610 | A 4615830075 | CHOCK |
| ATTACHMENT PARTS | ||
| 610 | A 4615830075 | CHOCK |
| 620 | N 910104006000 | NUT-AND-WASHER ASSEMBLY |
| BRACKET MOUNTING | ||
| M6 | ||
| 620 | N 910112006003 | HEXAGON NUT |
| BRACKET | ||
| M6 | ||
| 625 | A 0049923701 | SPACER BUSH |
| BRACKET MOUNTING | ||
| 650 | A 0004290301 | LINE |
| 950 | A 4618200582 | CONSOLE |
| RADIO ANTENNA | ||
| 950 | A 4618200582 | CONSOLE |
| RADIO ANTENNA | ||
| 955 | A 3305400241 | GROUND STRAP |
| RIGHT,RADIO OPERATORS TABLE | ||
| 960 | A 4619910740 | SPACER TUBE |
| CONSOLE ON REAR PANEL | ||
| 960 | A 4619910740 | SPACER TUBE |
| CONSOLE ON REAR PANEL | ||
| 970 | A 2019970281 | GROMMET |
| CONSOLE ON REAR PANEL | ||
| 970 | A 2019970281 | GROMMET |
| CONSOLE ON REAR PANEL | ||
| 970 | A 2019970281 | GROMMET |
| CONSOLE ON REAR PANEL | ||
| 975 | N 304017008042 | HEXAGON HEAD BOLT |
| 975 | N 304017008042 | HEXAGON HEAD BOLT |
| FASTENING BRACKET | ||
| 975 | N 304017008042 | HEXAGON HEAD BOLT |
| 980 | N 000125008445 | WASHER |
| FASTENING BRACKET | ||
| 980 | N 000125008445 | WASHER |
| 985 | N 912004008103 | SPRING LOCK WASHER |
| FASTENING BRACKET | ||
| 990 | N 304032008006 | HEXAGON NUT |
| FASTENING BRACKET | ||
| M8 | ||
