Transporto priemonė: G 320; VIN numerio dalis: 463244

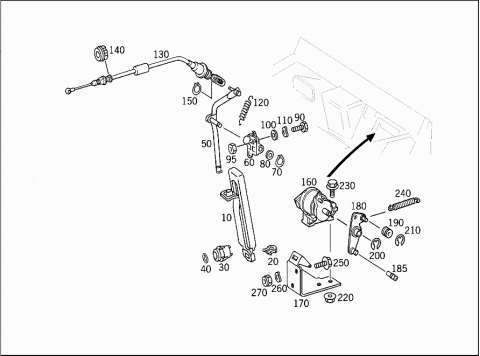

Grupė: 30 CONTROL

#	Kodas	Pavadinimas
010	A 1263000504	ACCELERATOR PEDAL
020	A 1249888678	CLIP
		ACCELERATOR PEDAL TO BRACKET
030	A 0003000141	KICK-DOWN SWITCH
040	A 1159970640	SEAL RING
		ACCELERATOR PEDAL TO BRACKET
050	A 4633000325	LEVER
		ACCELERATOR PEDAL
060	A 2013010218	BEARING
		CONTROL SHAFT
070	N 000471012001	LOCK RING
		CONTROL SHAFT
080	N 000988013100	FITTED WASHER
		CONTROL SHAFT
090	N 304017006020	SCREW
		BEARING TO CENTRAL FLOOR
		M 6X20
095	N 304032006004	NUT
		BEARING TO CENTRAL FLOOR
100	N 009021006208	WASHER
		BEARING TO CENTRAL FLOOR
110	N 000137006204	SPRING WASHER
		BEARING TO CENTRAL FLOOR
120	A 1029931210	SPRING
		(RELEASE SPRING)
130	A 4633004130	WIRE CABLE
140	A 2013010285	RUBBER BUFFER
		BOWDEN CABLE TO FIRE WALL
150	N 006799005002	LOCK PLATE
		BOWDEN CABLE TO ACCELERATOR PEDAL LEVER
	Repalced by: N 006799005004
150	N 006799005004	CIRCLIP
		BOWDEN CABLE TO ACCELERATOR PEDAL LEVER
160	A 0125423317	SENDER UNIT
		(PEDAL VALUE SENSOR)
170	A 4635453047	BRACKET
		MOUNTING FOR PEDAL POSITION SENSOR
180	A 2103001228	LEVER
		(REVERSING LEVER)
185	A 0009911720	BALL PIVOT
190	A 2103010011	ROLLER
200	N 006799005009	LOCK PLATE
		ROLLER TO LEVER
210	N 006799007009	LOCK PLATE
		ROLLER TO LEVER
220	N 910112006003	NUT
	Repalced by: N 913023006001
220	N 913023006001	NUT
		MOUNTING FOR BRACKET FOR PEDAL VALUE SENSOR
230	N 304017006016	SCREW
		SENDER UNIT TO BRACKET
		M 6X16
240	A 2109930310	SPRING
		TO REVERSING LEVER AND BRACKET
250	N 304017008016	SCREW
		BRACKET TO PEDAL BEARING BRACKET
		M 8X16
260	N 000137008212	SPRING WASHER
		BRACKET TO PEDAL BEARING BRACKET
270	N 304032008006	NUT
		BRACKET TO PEDAL BEARING BRACKET
