Transporto priemonė: G 320; VIN numerio dalis: 463244

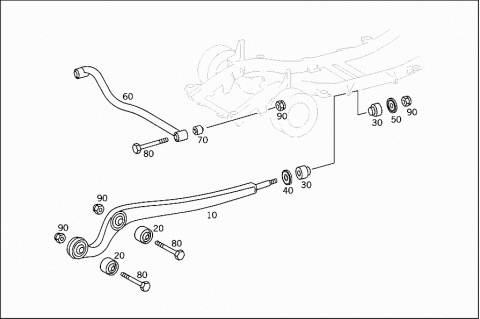

Grupė: 33 FRONT AXLE - 105 FRONT AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FRONT AXLE, SEE UNIT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR ACTUATION OF DIFFERENTIAL LOCK,SEE GROUP: | ||
| 28/070 | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR BREATHING,SEE SUBGROUP: | ||
| 28/090 | ||
| 010 | A 4603300111 | THRUST ARM |
| 020 | A 4603330314 | BEARING |
| 030 | A 4603520465 | RUBBER MOUNTING |
| THRUST ROD TO FRAME | ||
| 040 | A 4603520276 | WASHER |
| THRUST ROD TO FRAME | ||
| 050 | A 4603520476 | WASHER |
| THRUST ROD TO FRAME | ||
| 060 | A 4633300407 | TRANSVERSE CONTROL ARM |
| Repalced by: A 4633300707 | ||
| 060 | A 4633300707 | TRANSVERSE CONTROL ARM |
| 070 | A 4603520565 | RUBBER MOUNTING |
| 080 | N 000960016105 | SCREW |
| THRUST ARM TO FRONT AXLE | ||
| M 16X1,5X80 | ||
| 080 | N 000960016105 | SCREW |
| CONTROL ARM TO FRONT AXLE & FRAME | ||
| M 16X1,5X80 | ||
| 090 | N 913002016002 | NUT |
| THRUST ARM TO FRONT AXLE | ||
| 090 | N 913002016002 | NUT |
| THRUST ROD TO FRAME | ||
| 090 | N 910113016002 | NUT |
| CONTROL ARM TO FRONT AXLE & FRAME | ||
