Transporto priemonė: G 320; VIN numerio dalis: 463244

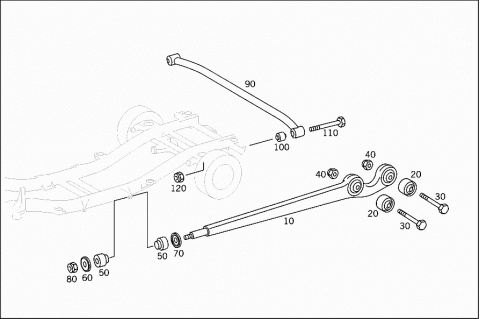

Grupė: 35 REAR AXLE - 090 REAR AXLE LONGITUDINAL & TRANSVERSE CONTROL ARMS
| # | Kodas | Pavadinimas |
|---|---|---|
| T YYYYYYYYYYYY | PART NAME MISSING | |
| REAR AXLE, SEE UNIT | ||
| T YYYYYYYYYYYY | PART NAME MISSING | |
| FOR ACTUATION OF DIFFERENTIAL LOCK,SEE GROUP: | ||
| 28/070 | ||
| X XXXXXXXXXXXX | PART NAME MISSING | |
| FOR BREATHING,SEE SUBGROUP: | ||
| 28/090 | ||
| 010 | A 4613500006 | CONTROL ARM |
| LONGITUDINAL CONTROL ARM | ||
| 020 | A 4603525014 | BEARING |
| 030 | N 000960016244 | SCREW |
| LONGITUDINAL CONTROL ARM TO REAR AXLE | ||
| M 16X1.5X90 | ||
| 040 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO REAR AXLE | ||
| 050 | A 4603520465 | RUBBER MOUNTING |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 060 | A 4603520476 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 070 | A 4603520276 | WASHER |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 080 | N 913002016002 | NUT |
| LONGITUDINAL CONTROL ARM TO FRAME | ||
| 090 | A 4613500306 | CONTROL ARM |
| TRANSVERSE CONTROL ARM TO REAR AXLE | ||
| 100 | A 4603520565 | RUBBER MOUNTING |
| 110 | N 000960016105 | SCREW |
| CONTROL ARM TO REAR AXLE AND TO FRAME | ||
| M 16X1.5X80 | ||
| 120 | N 910113016002 | NUT |
| CONTROL ARM TO REAR AXLE AND TO FRAME |
