Transporto priemonė: G 320; VIN numerio dalis: 463245

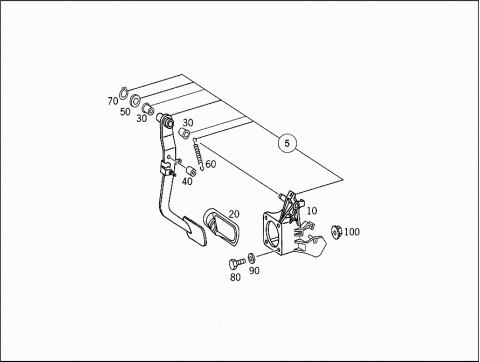

Grupė: 29 PEDAL ASSEMBLY - 015 PEDAL ASSEMBLY WITH BEARING
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4632903901 | PEDAL |
| Repalced by: A 4632904901 | ||
| 005 | A 4632904901 | PEDAL |
| PEDAL ASSEMBLY | ||
| 010 | A 2022901619 | BEARING BRACKET |
| 020 | A 1232910082 | PAD |
| BRAKE PEDAL | ||
| 030 | A 1242920050 | BUSHING |
| 040 | A 1262920050 | BUSHING |
| 050 | A 1152910076 | WASHER |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 060 | A 1409930510 | SPRING |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 070 | A 0079942041 | LOCK |
| BRAKE PEDAL TO BEARING BRACKET | ||
| 080 | N 304017008034 | SCREW |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| M 8X25 | ||
| 090 | N 000125008443 | WASHER |
| PEDAL ASSEMBLY TO FIRE WALL | ||
| 100 | N 913023008003 | NUT |
| PEDAL ASSEMBLY TO FIRE WALL | ||
