Transporto priemonė: G 320 CDI; VIN numerio dalis: 463303

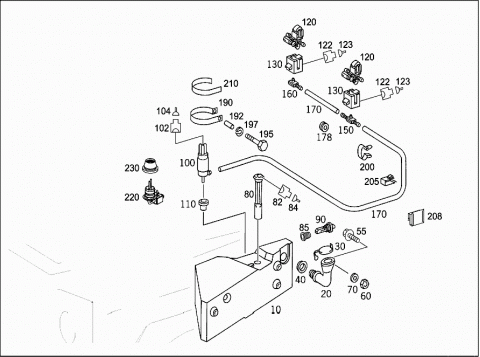

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 4638600560 | DASHPOT |
| PANE WASHER SYSTEM | ||
| 010 | A 4638600960 | WINDSCREEN WASH BOTTLE |
| 010 | A 4638600760 | DASHPOT |
| PANE WASHER SYSTEM | ||
| 010 | A 4638600860 | DASHPOT |
| PANE WASHER SYSTEM | ||
| 020 | A 4638690266 | FITTING |
| TO RESERVOIR | ||
| 030 | A 1408690108 | COVER |
| AT FITTING | ||
| 040 | A 1409971681 | GROMMET |
| TO RESERVOIR | ||
| 055 | N 304017006016 | HEXAGON HEAD BOLT |
| RESERVOIR TO WHEELHOUSE | ||
| M6X16 | ||
| 060 | N 910113006000 | HEXAGON NUT |
| RESERVOIR TO WHEELHOUSE | ||
| M6 | ||
| 070 | N 009021006208 | WASHER |
| RESERVOIR TO WHEELHOUSE | ||
| 6 MM | ||
| Repalced by: N 000000003260 | ||
| 070 | N 000000003260 | WASHER |
| RESERVOIR TO WHEELHOUSE | ||
| 080 | A 2105400545 | SWITCH |
| WINDSHIELD WASHER WATER LEVEL | ||
| 082 | A 0125450428 | PIN BUSHING HOUSING |
| WASHER FLUID LEVEL SWITCH | ||
| 2-PIN RK4;S42 | ||
| 084 | A 0015454426 | ROUND PIN BUSHING |
| RK4.0 | ||
| 085 | A 2209971981 | GROMMET |
| 090 | A 2205400045 | SWITCH |
| WINDSHIELD WASHER WATER LEVEL | ||
| 100 | A 2108690821 | PUMP |
| WINDSHIELD WASHER FLUID PUMP | ||
| 100 | A 2108690821 | PUMP |
| WASHER FLUID PUMP REAR-END DOOR | ||
| 102 | A 0335450228 | PIN BUSHING HOUSING |
| WINDSHIELD WASHER FLUID PUMP | ||
| 2-PIN JPT;M5/1, | ||
| 102 | A 0335450228 | PIN BUSHING HOUSING |
| WASHER FLUID PUMP REAR-END DOOR | ||
| 2-PIN JPT;M5/3, | ||
| 104 | A 0005402705 | REP.SET CONTACT |
| 1.00 MM2 JPT | ||
| 104 | A 0005452839 | CORE BUNDLE SEALING |
| 0.5-1.0 MM | ||
| 104 | A 0005452939 | CORE BUNDLE SEALING |
| 1.0-2.5 MM | ||
| 110 | A 1239973681 | GROMMET |
| PUMP TO RESERVOIR | ||
| 120 | A 2308600347 | NOZZLE |
| AT ENGINE HOOD | ||
| 122 | A 2105402081 | PIN BUSHING HOUSING |
| HEATED WASHER NOZZLE LEFT | ||
| 2-PIN MQS;R2/2, | ||
| 122 | A 2105402081 | PIN BUSHING HOUSING |
| HEATED WASHER NOZZLE RIGHT | ||
| 2-PIN MQS;R2/3, | ||
| 123 | A 0085456326 | FEMALE CONTACT |
| 0.5-0.75 MM2 MQS | ||
| 123 | A 0005456880 | SEAL |
| 0.9-1.4 MM | ||
| 123 | A 0005456980 | GASKET |
| 1.4-1.9 MM | ||
| 130 | A 4638850056 | TAKE-UP DEVICE |
| AT LEFT AND RIGHT NOZZLES | ||
| 150 | A 4638690022 | DISTRIBUTOR |
| FROM CONNECTOR TO LEFT AND RIGHT NOZZLES | ||
| 160 | A 4638690024 | CONNECTOR |
| FROM CONNECTOR TO RESERVOIR | ||
| 170 | A 0109978982 | HOSE |
| PANE WASHER SYSTEM | ||
| 4.6X1.8 MM;2330 MM | ||
| 170 | A 0109978982 | HOSE |
| PANE WASHER SYSTEM | ||
| 4.6X1.8 MM;205 MM | ||
| 178 | A 0009972081 | GROMMET |
| PANE WASHER SYSTEM | ||
| 190 | A 4639950010 | CLAMP |
| PUMP TO WHEELHOUSE | ||
| 192 | A 4609915840 | SPACER TUBE |
| PUMP TO RESERVOIR | ||
| 195 | N 000931006118 | SCREW |
| PUMP TO RESERVOIR | ||
| 197 | N 912004006102 | SPRING LOCK WASHER |
| PUMP TO RESERVOIR | ||
| 200 | A 0009956144 | CLAMP |
| HOSE TO ENGINE HOOD | ||
| 6.5 X 14.5 MM | ||
| 205 | A 0009881878 | CLIP |
| HOSE TO ENGINE HOOD | ||
| 208 | A 0009881678 | CLIP |
| HEATING LINE MOUNTING | ||
| 210 | A 0009894498 | SEALING STRIP |
| PUMP TO WHEELHOUSE | ||
| 210 | A 0009894498 | SEALING STRIP |
| PUMP TO WHEELHOUSE | ||
| 220 | A 2218209110 | SWITCH |
| FLUID LEVEL INDICATOR | ||
| 230 | A 2038690098 | SEAL |
| SWITCH | ||
| 280 | A 2108691121 | PUMP |
| HEADLAMP CLEANING SYSTEM | ||
| 282 | A 0345455328 | PIN BUSHING HOUSING |
| WASHER FLUID PUMP HEADLAMPS | ||
| 2-PIN JPT;M5/2, | ||
| 286 | A 0005402805 | REP.SET CONTACT |
| 2.5 MM2 JPT | ||
| 286 | A 0005452839 | CORE BUNDLE SEALING |
| 0.5-1.0 MM | ||
| 286 | A 0005452939 | CORE BUNDLE SEALING |
| 1.0-2.5 MM | ||
| 290 | A 0109971181 | GROMMET |
| PUMP TO RESERVOIR FASTENING | ||
| 310 | A 4638690019 | VALVE |
| BETWEEN PUMP AND NOZZLE | ||
| 320 | A 2108690224 | CONNECTOR |
| BETWEEN PUMP & VALVE | ||
| 330 | A 0008692694 | HOSE |
| BETWEEN PUMP & VALVE | ||
| 340 | A 0008692694 | HOSE |
| BETWEEN VALVE AND RIGHT NOZZLE | ||
| 350 | A 0008692694 | HOSE |
| BETWEEN VALVE AND LEFT NOZZLE | ||
| 1020 MM | ||
| 360 | A 0008601062 | VALVE |
| REAR PANE WASHER | ||
| 370 | N 916002017100 | CLAMP |
| CONNECTOR | ||
| 380 | A 0008600847 | NOZZLE |
| HEADLAMP WIPER/WASHER | ||
| 385 | A 0009881878 | CLIP |
| HOSE ATTACHMENT | ||
| 390 | A 4638690082 | WASHER |
| HEADLAMP WIPER/WASHER | ||
| 400 | N 000988019010 | FITTED WASHER |
| HEADLAMP WIPER/WASHER | ||
| 410 | A 0008690028 | NUT |
| HEADLAMP WIPER/WASHER | ||
| 420 | A 0009894498 | SEALING STRIP |
| THREADED CONNECTION, HEADLAMP CLEANING SYSTEM | ||
| 430 | A 0059972790 | HOSE CLAMP |
| CONNECTOR | ||
| 430 | A 4609955410 | CLAMP |
| PUMP TO RESERVOIR | ||
| 440 | A 0109978982 | HOSE |
| PANE WASHER SYSTEM | ||
| 4.6X1.8 MM | ||
| 440 | A 0109978982 | HOSE |
| PANE WASHER SYSTEM | ||
| 4.6X1.8 MM | ||
| 440 | A 0109978982 | HOSE |
| FROM CHECK VALVE TO NOZZLE AT REAR PANEL DOOR | ||
| 4.6X1.8 MM | ||
| 450 | A 0008693047 | NOZZLE |
| REAR PANE WASHER | ||
| 480 | A 4609955410 | CLAMP |
| VALVE | ||
| 490 | A 0009972381 | GROMMET |
| REAR PANE WASHER | ||
