Transporto priemonė: G 320 CDI; VIN numerio dalis: 463340

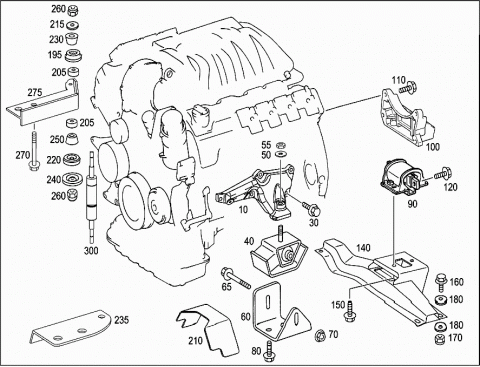

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1122232304 | ENGINE SUPPORT |
| LEFT | ||
| 010 | A 1132230804 | ENGINE SUPPORT |
| LEFT | ||
| 010 | A 1132234104 | ENGINE SUPPORT |
| LEFT | ||
| 010 | A 6282230604 | ENGINE SUPPORT |
| LEFT | ||
| 010 | A 6422232504 | ENGINE SUPPORT |
| LEFT | ||
| 010 | A 2732233304 | ENGINE SUPPORT |
| LEFT | ||
| 010 | A 1122232204 | ENGINE SUPPORT |
| RIGHT | ||
| 010 | A 2732233404 | ENGINE SUPPORT |
| RIGHT | ||
| 010 | A 1132230904 | ENGINE SUPPORT |
| RIGHT | ||
| 010 | A 1132234204 | ENGINE SUPPORT |
| RIGHT | ||
| 010 | A 6282230704 | ENGINE SUPPORT |
| RIGHT | ||
| 010 | A 6422232604 | ENGINE SUPPORT |
| RIGHT | ||
| 030 | N 910143008003 | HEXALOBULAR BOLT |
| ENGINE LEFT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X30 | ||
| 030 | N 910143008006 | HEXALOBULAR BOLT |
| ENGINE LEFT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X45 | ||
| 030 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE LEFT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X35 | ||
| 030 | N 910143008010 | HEXALOBULAR BOLT |
| ENGINE LEFT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X80 | ||
| 030 | N 910143008003 | HEXALOBULAR BOLT |
| ENGINE RIGHT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X30 | ||
| 030 | N 910143008006 | HEXALOBULAR BOLT |
| ENGINE RIGHT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X45 | ||
| 030 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M8X35 | ||
| 030 | N 910105008014 | HEXAGON HEAD BOLT |
| ENGINE RIGHT SUPPORT TO CYLINDER CRANKCASE | ||
| M8X35 | ||
| 040 | A 4602406618 | RUBBER MOUNT |
| LEFT FRONT ENGINE MOUNT, GREEN | ||
| 040 | A 4602406718 | RUBBER MOUNT |
| LEFT FRONT ENGINE MOUNT, YELLOW | ||
| 040 | A 4602407018 | RUBBER MOUNT |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| 040 | A 4602406618 | RUBBER MOUNT |
| RIGHT FRONT ENGINE MOUNT, GREEN | ||
| 040 | A 4602406718 | RUBBER MOUNT |
| RIGHT FRONT ENGINE MOUNT, YELLOW | ||
| 040 | A 4602407018 | RUBBER MOUNT |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| 050 | N 000125013008 | WASHER |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| 050 | N 000000003737 | WASHER |
| 055 | N 910113012003 | HEXAGON NUT |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| M12X1.5 | ||
| 060 | A 4602420640 | BRACKET |
| ENGINE FRONT MOUNTING | ||
| 065 | N 910105010044 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO BRACKET | ||
| M10 X 90 | ||
| 065 | N 000000002483 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING TO BRACKET | ||
| M10X85 | ||
| 070 | N 913023010002 | NUT |
| ENGINE MOUNTING TO BRACKET | ||
| M10 | ||
| 070 | N 913012010004 | NUT |
| ENGINE MOUNTING TO BRACKET | ||
| 080 | N 000000000916 | SCREW |
| FRONT ENGINE SUPPORT AND FRAME BRACKET | ||
| M10X25 | ||
| 080 | N 914140010010 | SCREW |
| FRONT ENGINE SUPPORT AND FRAME BRACKET | ||
| M10X30 | ||
| 090 | A 2202400118 | ENGINE MOUNT |
| REAR | ||
| 090 | A 2202400418 | ENGINE MOUNT |
| REAR | ||
| 090 | A 2122400418 | ENGINE SUPPORT |
| 090 | A 2202400518 | ENGINE MOUNT |
| REAR | ||
| Repalced by: A 2122400418 | ||
| 090 | A 2202400518 | ENGINE MOUNT |
| REAR | ||
| 100 | A 1402421340 | BRACKET |
| AT TRANSMISSION,REAR | ||
| 110 | N 910143008003 | HEXALOBULAR BOLT |
| BRACKET TO TRANSMISSION | ||
| M8X30 | ||
| 120 | N 910143008003 | HEXALOBULAR BOLT |
| ENGINE MOUNTING REAR AT BRACKET | ||
| M8X30 | ||
| Repalced by: N 000000000428 | ||
| 120 | N 000000000428 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING REAR AT BRACKET | ||
| M10X35 | ||
| 140 | A 4632601560 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632601660 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632602260 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632602260 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632601860 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632602460 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632602160 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 140 | A 4632602360 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 150 | N 000000000276 | HEXALOBULAR BOLT |
| SUPPORT TO CONSOLE | ||
| M8X20 | ||
| 160 | N 304017008034 | HEXAGON HEAD BOLT |
| SUPPORT TO FRAME | ||
| M8X25 | ||
| 170 | N 000000003278 | HEXAGON NUT |
| SUPPORT TO FRAME | ||
| 180 | A 6039900840 | WASHER |
| AT FRAME | ||
| 195 | A 1232410312 | RETAINER |
| TO UPPER LEFT ENGINE SUPPORT | ||
| 195 | A 1232410312 | RETAINER |
| TO TOP RIGHT BRACKET | ||
| 205 | A 4632410013 | RUBBER BUMPER |
| TO UPPER LEFT ENGINE SUPPORT | ||
| 205 | A 4632410013 | RUBBER BUMPER |
| TO TOP RIGHT BRACKET | ||
| 210 | A 4632410334 | SCREENING PLATE |
| ON ENGINE SUPPORT | ||
| 215 | A 1262410076 | WASHER |
| TO UPPER LEFT ENGINE SUPPORT | ||
| 215 | A 1262410076 | WASHER |
| TO TOP RIGHT BRACKET | ||
| 220 | A 1262410012 | RETAINER |
| TO BOTTOM LEFT BRACKET | ||
| 230 | A 1232410365 | RUBBER BUMPER |
| TO BOTTOM LEFT BRACKET | ||
| 235 | A 4632410540 | BRACKET |
| BOTTOM LEFT | ||
| 240 | A 1262410012 | RETAINER |
| TO ENGINE SUPPORT BRACKET | ||
| 250 | A 1232410365 | RUBBER BUMPER |
| TO ENGINE SUPPORT BRACKET | ||
| 260 | N 910113006000 | HEXAGON NUT |
| TO ENGINE SUPPORT BRACKET | ||
| M6 | ||
| 270 | N 914140010010 | SCREW |
| TO ENGINE SUPPORT BRACKET | ||
| M10X30 | ||
| 275 | A 4632410240 | BRACKET |
| AT FRAME,RIGHT | ||
| 300 | A 1132200048 | SHOCK ABSORBER |
| LEFT VIBRATION ABSORBER | ||
| 300 | A 1132200048 | SHOCK ABSORBER |
| RIGHT VIBRATION ABSORBER | ||
