Transporto priemonė: G 500; VIN numerio dalis: 463236

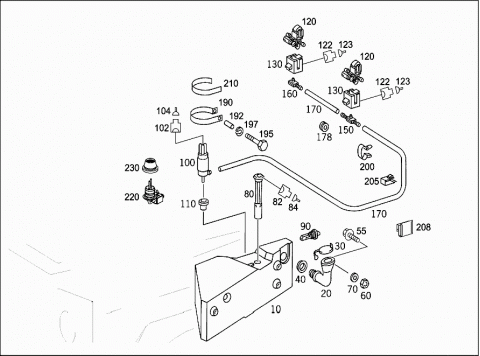

Grupė: 86 WASHER SYSTEM - 030 PANE WASHER,HEADLAMP WIPER/WASHER

#	Kodas	Pavadinimas
010	A 4638600760	DASHPOT
		PANE WASHER SYSTEM
010	A 4638600860	DASHPOT
		PANE WASHER SYSTEM
020	A 4638690266	FITTING
		TO RESERVOIR
030	A 1408690108	COVER
		AT FITTING
040	A 1409971681	GROMMET
		TO RESERVOIR
055	N 304017006016	HEXAGON HEAD BOLT
		RESERVOIR TO WHEELHOUSE
		M6X16
060	N 910113006000	HEXAGON NUT
		RESERVOIR TO WHEELHOUSE
		M6
070	N 009021006208	WASHER
		RESERVOIR TO WHEELHOUSE
		6 MM
	Repalced by: N 000000003260
070	N 000000003260	WASHER
		RESERVOIR TO WHEELHOUSE
080	A 2105400545	SWITCH
		WINDSHIELD WASHER WATER LEVEL
082	A 0125450428	PIN BUSHING HOUSING
		WASHER FLUID LEVEL SWITCH
		2-PIN RK4;S42
084	A 0015454426	ROUND PIN BUSHING
		RK4.0
090	A 2205400045	SWITCH
		WINDSHIELD WASHER WATER LEVEL
100	A 2108690821	PUMP
		WINDSHIELD WASHER FLUID PUMP
100	A 2108690821	PUMP
		WASHER FLUID PUMP REAR-END DOOR
102	A 0335450228	PIN BUSHING HOUSING
		WINDSHIELD WASHER FLUID PUMP
		2-PIN JPT;M5/1,
102	A 0335450228	PIN BUSHING HOUSING
		WASHER FLUID PUMP REAR-END DOOR
		2-PIN JPT;M5/3,
104	A 0005402705	REP.SET CONTACT
		1.00 MM2 JPT
104	A 0005452839	CORE BUNDLE SEALING
		0.5-1.0 MM
104	A 0005452939	CORE BUNDLE SEALING
		1.0-2.5 MM
110	A 1239973681	GROMMET
		PUMP TO RESERVOIR
120	A 2308600347	NOZZLE
		AT ENGINE HOOD
122	A 2105402081	PIN BUSHING HOUSING
		HEATED WASHER NOZZLE LEFT
		2-PIN MQS;R2/2,
122	A 2105402081	PIN BUSHING HOUSING
		HEATED WASHER NOZZLE RIGHT
		2-PIN MQS;R2/3,
123	A 0085456326	FEMALE CONTACT
		0.5-0.75 MM2 MQS
123	A 0005456880	SEAL
		0.9-1.4 MM
123	A 0005456980	GASKET
		1.4-1.9 MM
130	A 4638850056	TAKE-UP DEVICE
		AT LEFT AND RIGHT NOZZLES
150	A 4638690022	DISTRIBUTOR
		FROM CONNECTOR TO LEFT AND RIGHT NOZZLES
160	A 4638690024	CONNECTOR
		FROM CONNECTOR TO RESERVOIR
170	A 0109978982	HOSE
		PANE WASHER SYSTEM
		4.6X1.8 MM;2330 MM
170	A 0109978982	HOSE
		PANE WASHER SYSTEM
		4.6X1.8 MM;205 MM
178	A 0009972081	GROMMET
		PANE WASHER SYSTEM
190	A 4639950010	CLAMP
		PUMP TO WHEELHOUSE
192	A 4609915840	SPACER TUBE
		PUMP TO RESERVOIR
195	N 000931006118	SCREW
		PUMP TO RESERVOIR
197	N 912004006102	SPRING LOCK WASHER
		PUMP TO RESERVOIR
200	A 0009956144	CLAMP
		HOSE TO ENGINE HOOD
		6.5 X 14.5 MM
205	A 0009881878	CLIP
		HOSE TO ENGINE HOOD
208	A 0009881678	CLIP
		HEATING LINE MOUNTING
210	A 0009894498	SEALING STRIP
		PUMP TO WHEELHOUSE
210	A 0009894498	SEALING STRIP
		PUMP TO WHEELHOUSE
220	A 2218209110	SWITCH
		FLUID LEVEL INDICATOR
230	A 2038690098	SEAL
		SWITCH
280	A 2108691121	PUMP
		HEADLAMP CLEANING SYSTEM
282	A 0345455328	PIN BUSHING HOUSING
		WASHER FLUID PUMP HEADLAMPS
		2-PIN JPT;M5/2,
286	A 0005402805	REP.SET CONTACT
		2.5 MM2 JPT
286	A 0005452839	CORE BUNDLE SEALING
		0.5-1.0 MM
286	A 0005452939	CORE BUNDLE SEALING
		1.0-2.5 MM
290	A 0109971181	GROMMET
		PUMP TO RESERVOIR FASTENING
310	A 4638690019	VALVE
		BETWEEN PUMP AND NOZZLE
320	A 2108690224	CONNECTOR
		BETWEEN PUMP & VALVE
330	A 0008692694	HOSE
		BETWEEN PUMP & VALVE
340	A 0008692694	HOSE
		BETWEEN VALVE AND RIGHT NOZZLE
350	A 0008692694	HOSE
		BETWEEN VALVE AND LEFT NOZZLE
		1020 MM
360	A 0008601062	VALVE
		REAR PANE WASHER
370	N 916002017100	CLAMP
		CONNECTOR
380	A 0008600847	NOZZLE
		HEADLAMP WIPER/WASHER
385	A 0009881878	CLIP
		HOSE ATTACHMENT
390	A 4638690082	WASHER
		HEADLAMP WIPER/WASHER
400	N 000988019010	FITTED WASHER
		HEADLAMP WIPER/WASHER
410	A 0008690028	NUT
		HEADLAMP WIPER/WASHER
420	A 0009894498	SEALING STRIP
		THREADED CONNECTION, HEADLAMP CLEANING SYSTEM
430	A 0059972790	HOSE CLAMP
		CONNECTOR
430	A 4609955410	CLAMP
		PUMP TO RESERVOIR
440	A 0109978982	HOSE
		FROM CHECK VALVE TO NOZZLE AT REAR PANEL DOOR
		4.6X1.8 MM
440	A 0109978982	HOSE
		FROM CHECK VALVE TO NOZZLE AT REAR PANEL DOOR
		4.6X1.8 MM
450	A 0008693047	NOZZLE
		REAR PANE WASHER
480	A 4609955410	CLAMP
		VALVE
490	A 0009972381	GROMMET
		REAR PANE WASHER
