Transporto priemonė: G 500; VIN numerio dalis: 463249

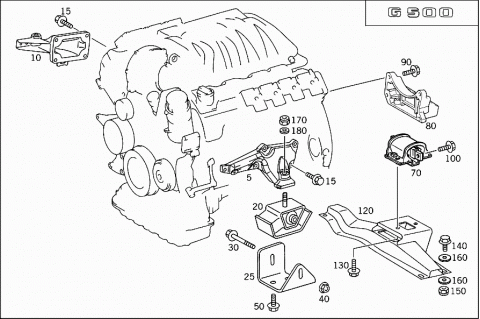

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 1132230804 | ENGINE SUPPORT |
| ENGINE LEFT SUPPORT TO CYLINDER CRANKCASE | ||
| 010 | A 1132230904 | ENGINE SUPPORT |
| ENGINE RIGHT SUPPORT TO CYLINDER CRANKCASE | ||
| 015 | N 910143008003 | SCREW |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M 8X30 | ||
| 015 | N 910143008010 | HEXALOBULAR BOLT |
| ENGINE SUPPORT TO CYLINDER CRANKCASE | ||
| M8X80 | ||
| 020 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, WHITE | ||
| 020 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT RIGHT MOUNTING, YELLOW | ||
| 020 | A 4602407018 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, WHITE | ||
| 020 | A 4602406718 | RUBBER MOUNTING |
| ENGINE FRONT LEFT MOUNTING, YELLOW | ||
| 025 | A 4602420640 | BRACKET |
| ENGINE FRONT MOUNTING | ||
| 030 | N 910105010004 | SCREW |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| M 10X90 | ||
| 040 | N 913023010002 | NUT |
| FRONT RUBBER MOUNTING TO BRACKET | ||
| 050 | N 914114010023 | SCREW |
| ENGINE FRONT MOUNTING TO FRAME | ||
| 070 | A 2202400218 | ENGINE MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| 070 | A 2202400518 | ENGINE MOUNTING |
| ENGINE REAR MOUNTING, RED | ||
| 080 | A 1402421340 | BRACKET |
| AT TRANSMISSION,REAR | ||
| 090 | N 910105008016 | SCREW |
| BRACKET AT TRANSMISSION REAR | ||
| M 8X30 | ||
| 100 | N 000000000428 | HEXAGON HEAD BOLT |
| ENGINE MOUNTING REAR AT BRACKET | ||
| M10X35 | ||
| 120 | A 4632601660 | SUPPORT |
| ENGINE REAR MOUNTING | ||
| 130 | N 910105008004 | SCREW |
| ENGINE REAR MOUNTING TO CONSOLE | ||
| M 8X20 | ||
| 140 | N 304017008034 | SCREW |
| SUPPORT TO FRAME | ||
| M 8X25 | ||
| 150 | N 913002008004 | NUT |
| SUPPORT TO FRAME | ||
| 160 | A 6039900840 | WASHER |
| SUPPORT TO FRAME | ||
| 170 | N 910113012003 | HEXAGON NUT |
| ENGINE TO ENGINE FRONT MOUNTING | ||
| 180 | N 000125013008 | WASHER |
| ENGINE TO ENGINE FRONT MOUNTING |
