Transporto priemonė: FORTWO COUPE BRABUS; VIN numerio dalis: 451333

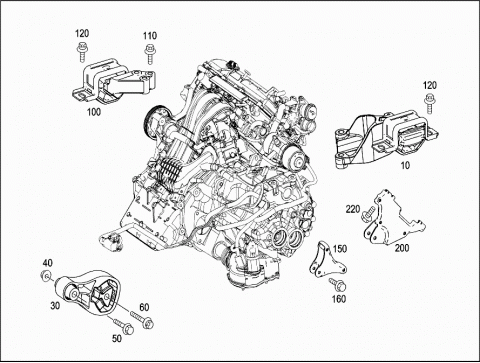

Grupė: 24 ENGINE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 010 | A 1322200148 | ENGINE MOUNT |
| TRANSMISSION SUSPENSION,LEFT | ||
| 030 | A 1322200248 | ENGINE MOUNT |
| ENGINE FRONT SUSPENSION | ||
| 030 | A 1322200248 | ENGINE MOUNT |
| 030 | A 4512400109 | PENDULAR SUPPORT |
| 030 | A 4512400317 | ENGINE SUPPORT |
| 040 | N 913023012002 | NUT |
| PENDULUM SUPPORT AT FRAME-TYPEINTEGRAL SUPPORT | ||
| M12X1.5 | ||
| 050 | N 910105012012 | HEXAGON HEAD BOLT |
| PENDULUM SUPPORT AT FRAME-TYPEINTEGRAL SUPPORT | ||
| M12X1.5X80 | ||
| 060 | N 000000000122 | HEXALOBULAR BOLT |
| PENDULUM SUPPORT AT ENGINE | ||
| 060 | N 910105012012 | HEXAGON HEAD BOLT |
| M12X1.5X80 | ||
| 100 | A 4512400317 | ENGINE SUPPORT |
| 100 | A 6602200048 | ENGINE MOUNT |
| ENGINE BRACE,RIGHT | ||
| 100 | A 1322200048 | ENGINE MOUNT |
| ENGINE BRACE,RIGHT | ||
| 100 | A 6602200048 | ENGINE MOUNT |
| ENGINE BRACE,RIGHT | ||
| 110 | N 000000004154 | HEXALOBULAR BOLT |
| ENGINE TO ENGINE MOUNTING | ||
| 120 | N 000000000300 | HEXALOBULAR BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X16 | ||
| Repalced by: N 910143010011 | ||
| 120 | N 910143010011 | HEXALOBULAR BOLT |
| ENGINE MOUNTING TO ENGINE SUPPORT | ||
| M10X20-10.9 | ||
| 150 | A 6600110132 | COVER |
| ENGINE MOUNTING TO TRANSMISSION | ||
| 160 | N 910105012015 | HEXAGON HEAD BOLT |
| COVER TO TRANSMISSION CASE | ||
| M12X1.5X45-10.9 | ||
| 200 | A 1320110032 | COVER |
| ENGINE MOUNTING TO TRANSMISSION | ||
| 220 | A 0019900403 | BOLT |
| ENGINE MOUNTING TO TRANSMISSION | ||
