Transporto priemonė: SMART-BRABUS CABRIO; VIN numerio dalis: 450414
Grupė: 77 FOLDING TOP
| # | Kodas | Pavadinimas |
|---|---|---|

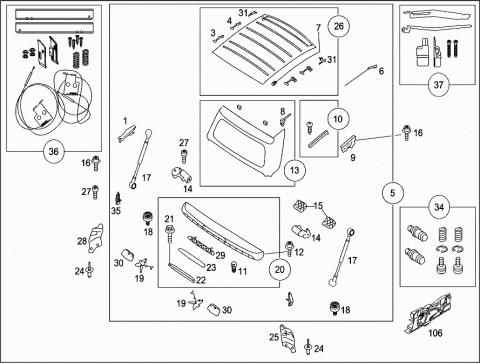

| 001 | Q 0000797V013000000 | B-PILLAR CATCH RH |
| B-PILLAR ON THE LEFT | ||
| 003 | Q 0007933V002000000 | SLIDE HOOP CENTRE LH/RH |
| REAR BOW | ||
| 004 | Q 0007932V002000000 | SLIDE HOOP CENTRE LH/RH |
| CENTRAL BOW | ||
| 005 | Q 0000523V019C39V00 | SOFT TOP |
| BLUE/TRANSPARENT FABRIC | ||
| 005 | Q 0000523V022C39V00 | SOFT TOP |
| BLUE/TRANSPARENT FABRIC | ||
| 005 | Q 0000523V022C48X00 | SOFT TOP |
| BLACK FABRIC/TRANSPARENT REAR WINDOW | ||
| 005 | Q 0000523V023C48X00 | SOFT TOP |
| BLACK FABRIC/TRANSPARENT REAR WINDOW | ||
| 006 | Q 0007851V003000000 | SET DRIVE CABLES |
| 007 | Q 0007938V001000000 | SET ATTACHMENT TENSIONING |
| BRACING WIRE FOLDING TOP LINING | ||
| 008 | Q 0007854V001 00 | SET BELT STRAP REAR |
| REAR | ||
| 009 | Q 0000798V013000000 | B-PILLAR CATCH RH |
| B-PILLAR ON THE RIGHT | ||
| 010 | Q 0007934V004000000 | SEAL ROOF BAY COMPLETE LH |
| LEFT AND RIGHT | ||
| 011 | Q 0001932V001000000 | BULB 2.3 W |
| 012 | Q 0007853V000000000 | SCREW PT K 60 X 25 |
| 012 | Q 0012545V000000000 | SCREW PT K 60 X 25 |
| 013 | Q 0007135V006C48X00 | REAR TOP COMPLETE |
| BLACK FABRIC/TRANSPARENT REAR WINDOW | ||
| 013 | Q 0007135V006C45V00 | REAR TOP COMPLETE |
| 013 | Q 0007135V006C39V00 | REAR TOP COMPLETE |
| 014 | Q 0004794V008000000 | E-DRIVE |
| 015 | Q 0008307V002000000 | SET COVER E-DRIVE LH/RH |
| 016 | Q 0007736V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0007998V000000000 | ||
| 016 | Q 0007736V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0007998V000000000 | ||
| 016 | Q 0007998V000000000 | TORX INSTRUMENT CLUSTER S |
| 017 | Q 0000529V007000000 | GAS STRUT SPEED SENSOR |
| 018 | Q 0007737V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0008023V000000000 | ||
| 018 | Q 0008023V000000000 | TORX INSTRUMENT CLUSTER S |
| 018 | Q 0007737V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0008023V000000000 | ||
| 018 | Q 0011295V001000000 | STOP BOLT HV |
| 019 | Q 0006334V003000000 | SET LOCKING LEVER CLAMPIN |
| 020 | Q 0000766V010000000 | SPOILER ROOF BAY |
| Repalced by: Q 0000766V011000000 | ||
| 020 | Q 0000766V011000000 | SPOILER ROOF BAY |
| Repalced by: Q 0000766V012000000 | ||
| 020 | Q 0000766V012000000 | SPOILER ROOF BAY |
| Repalced by: Q 0000766V013000000 | ||
| 020 | Q 0000766V013000000 | SPOILER ROOF BAY |
| 021 | Q 0002288V001000000 | EJOT PT K30X20 |
| 022 | Q 0000616V006000000 | STOP LAMP LENS |
| Repalced by: Q 0000616V007000000 | ||
| 022 | Q 0000616V006000000 | STOP LAMP LENS |
| Repalced by: Q 0000616V007000000 | ||
| 022 | Q 0000616V007000000 | STOP LAMP LENS |
| 023 | Q 0006613V001000000 | SEAL 3RD STOP LAMP |
| 023 | Q 0006613V001000000 | SEAL 3RD STOP LAMP |
| 024 | Q 0001991V001000000 | BLIND RIVET |
| ST 4,8 X 8 | ||
| 024 | Q 0006300V000000000 | BLIND RIVET 4.8 X 8 |
| 024 | Q 0006300V000000000 | BLIND RIVET 4.8 X 8 |
| 025 | Q 0003901V008000000 | STOPPER BRACKET CLAMPING |
| RIGHT | ||
| Repalced by: Q 0003901V009000000 | ||
| 025 | Q 0003901V009000000 | STOPPER BRACKET CLAMPING |
| RIGHT | ||
| 025 | Q 0003901V008000000 | STOPPER BRACKET CLAMPING |
| RIGHT | ||
| 026 | Q 0000533V018000000 | FOLDING SOFT TOP COMPLETE |
| COMPLETE | ||
| 026 | Q 0000533V018CP3A00 | FOLDING SOFT TOP COMPLETE |
| RED | ||
| TRUE BURGUNDY | ||
| 026 | Q 0000533V018CK9A00 | FOLDING SOFT TOP COMPLETE |
| BLUE | ||
| 027 | Q 0007850V000000000 | PANHEAD SCREW M5 X 33 |
| 027 | Q 0019579V000000000 | PANHEAD SCREW M5 X 33 |
| 028 | Q 0003899V009000000 | STOPPER BRACKET CLAMPING |
| LEFT | ||
| 029 | Q 0010974V001000000 | REFLECTOR |
| 030 | Q 0008309V001000000 | SET COVER CLAMPING BRACKE |
| 031 | Q 0009608V001000000 | SET SLIDE PLATE ROOF TOP |
| 034 | Q 0022409V001000000 | INDEX BOLT |
| 035 | Q 0011414V001000000 | STOP BUFFER |
| 036 | Q 0022504V002000000 | SEAL SUPPORT LH/RH |
| 037 | Q 0022406V001000000 | SPRING SUPPORT PART |
| 040 | Q 0021506V002000000 | SET MAIN BEARING |
| FOLDING TOP | ||
| Repalced by: Q 0021506V001000000 | ||
| 040 | Q 0021506V001000000 | SET MAIN BEARING |
| FOLDING TOP | ||
| 042 | Q 0011289V001000000 | SET LOCKING LEVER LH |
| LEFT | ||
| 044 | Q 0011293V001000000 | SET LOCKING LEVER RH |
| RIGHT | ||
| 046 | Q 0011264V001 00 | SET ROCKER GAS STRUT |
| PNEUMATIC SPRING | ||
| 051 | A 0009905592 | RIVET |
| EACP | ||
| 052 | Q 0007127V004C22A00 | COVER CATCH B-PILLAR LH |
| BLACK LEFT | ||
| 053 | Q 0004807V005000000 | KEY EMERGENCY OPERATION |
| 054 | Q 0000701V012C47L00 | SIDE LONGITUDINAL MEMBER |
| BLACK LEFT | ||
| Repalced by: Q 0000701V014C47L00 | ||
| 054 | Q 0000701V014C47L00 | SIDE LONGITUDINAL MEMBER |
| BLACK LEFT | ||
| 054 | Q 0000701V010C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILVER LEFT | ||
| Repalced by: Q 0000701V011C49L00 | ||
| 054 | Q 0000701V011C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILVER LEFT | ||
| Repalced by: Q 0000701V012C49L00 | ||
| 054 | Q 0000701V012C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILVER LEFT | ||
| Repalced by: Q 0000701V014C49L00 | ||
| 054 | Q 0000701V014C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILVER LEFT | ||
| 054 | Q 0000701V010C18L00 | SIDE LONGITUDINAL MEMBER |
| ANTHRACITE METALLIC LEFT | ||
| 054 | Q 0000701V011C47L00 | SIDE LONGITUDINAL MEMBER |
| BLACK LEFT | ||
| Repalced by: Q 0000701V012C47L00 | ||
| 055 | Q 0006340V003000000 | SET LONGITUDINAL MEMBER M |
| Repalced by: Q 0006340V004000000 | ||
| 055 | Q 0006340V004000000 | SET LONGITUDINAL MEMBER M |
| 056 | Q 0000811V010000000 | SEAL ROOF TOP COMPLETE |
| 056 | Q 0000811V011000000 | SEAL ROOF TOP COMPLETE |
| Repalced by: Q 0000811V012000000 | ||
| 056 | Q 0000811V011000000 | SEAL ROOF TOP COMPLETE |
| Repalced by: Q 0000811V012000000 | ||
| 056 | Q 0000811V011000000 | SEAL ROOF TOP COMPLETE |
| Repalced by: Q 0000811V012000000 | ||
| 056 | Q 0000811V012000000 | SEAL ROOF TOP COMPLETE |
| Repalced by: Q 0000811V013000000 | ||
| 056 | Q 0000811V012000000 | SEAL ROOF TOP COMPLETE |
| Repalced by: Q 0000811V013000000 | ||
| 056 | Q 0000811V013000000 | SEAL ROOF TOP COMPLETE |
| 056 | Q 0000811V013000000 | SEAL ROOF TOP COMPLETE |
| 057 | Q 0011167V001000000 | ADHESIVE SET BETALINK K1 |
| 058 | Q 0007652V001000000 | ADDITIVE DIFFUSER |
| 059 | Q 0000768V012C47L00 | SIDE LONGITUDINAL MEMBER |
| BLACK RIGHT | ||
| Repalced by: Q 0000768V014C47L00 | ||
| 059 | Q 0000768V014C47L00 | SIDE LONGITUDINAL MEMBER |
| BLACK RIGHT | ||
| 059 | Q 0000768V010C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILBER RIGHT | ||
| Repalced by: Q 0000768V011C49L00 | ||
| 059 | Q 0000768V011C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILBER RIGHT | ||
| Repalced by: Q 0000768V012C49L00 | ||
| 059 | Q 0000768V012C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILBER RIGHT | ||
| Repalced by: Q 0000768V014C49L00 | ||
| 059 | Q 0000768V014C49L00 | SIDE LONGITUDINAL MEMBER |
| ALU SILBER RIGHT | ||
| 059 | Q 0000768V010C18L00 | SIDE LONGITUDINAL MEMBER |
| ANTHRACITE METALLIC RIGHT | ||
| 059 | Q 0000768V011C47L00 | SIDE LONGITUDINAL MEMBER |
| BLACK RIGHT | ||
| Repalced by: Q 0000768V012C47L00 | ||
| 060 | Q 0007128V004C22A00 | COVER CATCH B-PILLAR LH |
| BLACK RIGHT | ||
| 061 | Q 0003898V010000000 | SEAL S WALL COMPLETE LH |
| RIGHT | ||
| Repalced by: Q 0003898V011000000 | ||
| 061 | Q 0003898V011000000 | SEAL S WALL COMPLETE LH |
| RIGHT | ||
| Repalced by: Q 0003898V012000000 | ||
| 061 | Q 0003898V012000000 | SEAL S WALL COMPLETE LH |
| RIGHT | ||
| Repalced by: Q 0003898V013000000 | ||
| 061 | Q 0003898V013000000 | SEAL S WALL COMPLETE LH |
| RIGHT | ||
| Repalced by: Q 0003898V014000000 | ||
| 061 | Q 0003898V014000000 | SEAL S WALL COMPLETE LH |
| RIGHT | ||
| 061 | Q 0003898V013000000 | SEAL S WALL COMPLETE LH |
| SIDE PANEL,RIGHT | ||
| Repalced by: Q 0003898V014000000 | ||
| 061 | Q 0003898V014000000 | SEAL S WALL COMPLETE LH |
| SIDE PANEL,RIGHT | ||
| 062 | Q 0000527V009000000 | SEAL CLAMPING BRACKET COM |
| 062 | Q 0000527V011000000 | SEAL CLAMPING BRACKET COM |
| 063 | Q 0000809V010000000 | SEAL S WALL COMPLETE LH |
| LEFT | ||
| Repalced by: Q 0000809V011000000 | ||
| 063 | Q 0000809V011000000 | SEAL S WALL COMPLETE LH |
| LEFT | ||
| Repalced by: Q 0000809V012000000 | ||
| 063 | Q 0000809V012000000 | SEAL S WALL COMPLETE LH |
| LEFT | ||
| Repalced by: Q 0000809V013000000 | ||
| 063 | Q 0000809V013000000 | SEAL S WALL COMPLETE LH |
| LEFT | ||
| Repalced by: Q 0000809V014000000 | ||
| 063 | Q 0000809V014000000 | SEAL S WALL COMPLETE LH |
| LEFT | ||
| 063 | Q 0000809V013000000 | SEAL S WALL COMPLETE LH |
| SIDE PANEL,LEFT | ||
| Repalced by: Q 0000809V014000000 | ||
| 063 | Q 0000809V014000000 | SEAL S WALL COMPLETE LH |
| SIDE PANEL,LEFT | ||
| 064 | Q 0007736V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0007998V000000000 | ||
| 065 | Q 0008677V001000000 | SEALING CORD |
| 065 | Q 0004489V000000000 | FOIL |
| - | ||
| 065 | Q 0004489V000000000 | FOIL |
| - | ||
| 066 | Q 0005848V001000000 | INTERIOR ROOF LINER |
| Repalced by: Q 0005848V002000000 | ||
| 066 | Q 0005848V001000000 | INTERIOR ROOF LINER |
| Repalced by: Q 0005848V002000000 | ||
| 066 | Q 0005848V001000000 | INTERIOR ROOF LINER |
| Repalced by: Q 0005848V002000000 | ||
| 066 | Q 0005848V002000000 | INTERIOR ROOF LINER |
| Repalced by: Q 0005848V003000000 | ||
| 066 | Q 0005848V002000000 | INTERIOR ROOF LINER |
| Repalced by: Q 0005848V003000000 | ||
| 066 | Q 0005848V002000000 | INTERIOR ROOF LINER |
| Repalced by: Q 0005848V003000000 | ||
| 066 | Q 0005848V003000000 | INTERIOR ROOF LINER |
| 066 | Q 0005848V003C24A00 | INTERIOR ROOF LINER |
| GREY | ||
| 066 | Q 0005848V003C24A00 | INTERIOR ROOF LINER |
| GREY | ||
| 067 | Q 0010144V001000000 | CLEANING FELT |
| SET = 2 PIECES | ||
| 068 | Q 0010185V001000000 | LOCATING AID HV LH |
| LEFT | ||
| 069 | Q 0010186V001000000 | LOCATING AID HV LH |
| RIGHT | ||
| 085 | Q 0022408V001000000 | PROTECTIVE TAPE |

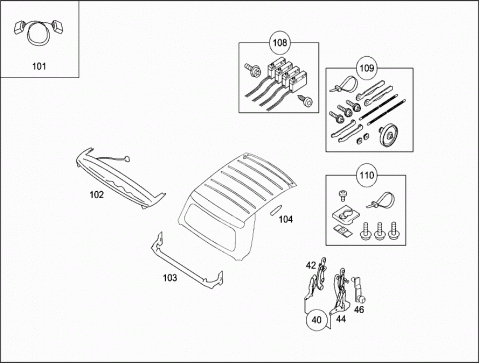

| 101 | Q 0021512V001000000 | CLUTCH |
| ADAPTER CABLE | ||
| 102 | Q 0021501V002000000 | SET FOLDING TOP COMPARTME |
| 103 | Q 0021503V001000000 | SET CLAMPING BAR |
| 104 | Q 0021509V001000000 | SET CENTERING STRIP |
| 106 | Q 0022404V001000000 | CATCH FOLDING TOP COMPART |
| LEFT TO B-PILLAR | ||
| 106 | Q 0022405V001000000 | CATCH FOLDING TOP COMPART |
| RIGHT TO B-PILLAR | ||
| 108 | Q 0022407V001000000 | MICROSWITCH |
| 109 | Q 0019674V001000000 | REPAIR SET E-DRIVE |
| FOLDING TOP DRIVE | ||
| 110 | Q 0019675V001000000 | REPAIR SET GUIDE TUBE |
| GUIDE TUBE | ||
