Transporto priemonė: SMART & BUSINESS PURE; VIN numerio dalis: 450346

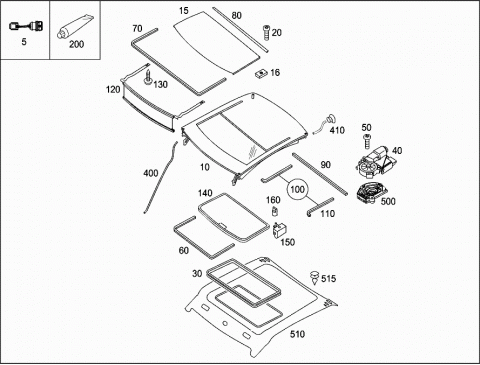

Grupė: 78 SLIDING ROOF - 040 ELECTRIC SLIDING/LIFTING ROOF
106069
# Kodas Pavadinimas
005 Q 0012845V001000000 ADAPTER GLASS SUNROOF / H
GLASS SLIDING ROOF
010 Q 0011642V007C95W00 ROOF MODULE GLASS SUNROOF
ORDER ADDITIONALLY ALSO:
Q0011685V001000000
015 Q 0011664V002C95W00 GLASS SUNROOF
SLIDING ROOF
016 Q 0014915V001000000 CAGED NUT M5
020 Q 0011655V001000000 C/S SCREW M5X8.5 TORX25
030 Q 0011659V001000000 BEADING GLASS SUNROOF
040 Q 0011685V001000000 DRIVE MOTOR GLASS SUNROOF
050 Q 0011662V001000000 MOUNTING BOLT M4X40 TORX
MOTOR TO ROOF
060 Q 0011658V001000000 INTERIOR SEAL GLASS SUNRO
070 Q 0011667V002000000 ROOF SEAL FRONT
FRONT
070 Q 0011667V001000000 ROOF SEAL FRONT
080 Q 0011660V002000000 ROOF SEAL FRONT
REAR
090 Q 0011665V001000000 SEAL RAIN CHANNEL REAR
WATER DRAIN,REAR
100 Q 0014916V001000000 SEAL GUIDE SLOT LH
110 Q 0015505V001000000 SEAL GUIDE SLOT LH
120 Q 0011657V001000000 WIND DEFLECTOR
130 Q 0011656V001000000 EJOT SF M4X7 WN 1321 T20
TO WINDSHIELD FRAME
140 Q 0011663V001000000 DRAUGHT/SUN STOP GLASS SU
150 Q 0014914V001000000 RETAINING PLATE DRAUGHT/S
170 Q 0013710V001000000 NUT DRAUGHT/SUN STOP
200 A 4519890171 ADHESIVE
SLIDING ROOF
400 Q 0012042V001000000 WATER DRAIN FRONT
FRONT
410 Q 0012039V001000000 WATER DRAIN PLUG GLASS SU
500 Q 0021492V001000000 HOUSING DRIVE
TO ELECTRIC MOTOR
510 Q 0011650V002C24A00 INTERIOR ROOF LINER GLASS
GREY
515 A 0119887678 CLIP
TO HEADLINER
Q 0014931V001000000 PRIMER GLASS SUNROOF
