Transporto priemonė: SMART ROADSTER-COUPE; VIN numerio dalis: 452334

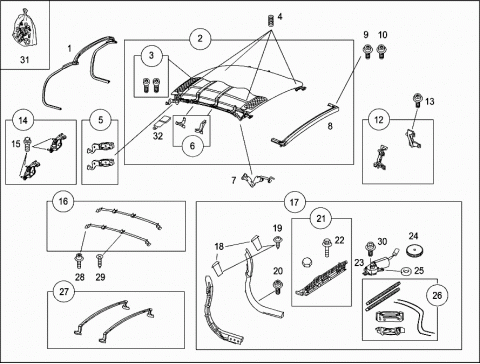

Grupė: 77 FOLDING TOP - 015 FOLDING TOP FRAME ASSEMBLY
| # | Kodas | Pavadinimas |
|---|---|---|
| 001 | Q 0017060V002000000 | SEAL ROOF PEAK |
| Repalced by: Q 0017060V004000000 | ||
| 001 | Q 0017060V004000000 | SEAL ROOF PEAK |
| 002 | Q 0014820V001000000 | ROOF SECTION |
| Repalced by: Q 0014820V002000000 | ||
| 002 | Q 0014820V002000000 | SET ROOF SECTION |
| Repalced by: Q 0014820V003000000 | ||
| 002 | Q 0014820V003000000 | SET ROOF SECTION |
| Repalced by: Q 0014820V004000000 | ||
| 002 | Q 0014820V004000000 | SET ROOF SECTION |
| 003 | Q 0014823V001000000 | SCREW SEAL |
| 004 | Q 0010741V001000000 | SPRING Y-COMPENSATOR |
| 005 | Q 0014825V001000000 | CATCH FRONT |
| Repalced by: Q 0014825V002000000 | ||
| 005 | Q 0014825V002000000 | CATCH FRONT |
| 006 | Q 0014822V001000000 | SLIDE HOOP CENTRE LH/RH |
| 007 | Q 0014826V001000000 | ROOF CAP HOLDER |
| (PARTS KIT), LEFT AND RIGHT | ||
| Repalced by: Q 0014826V002000000 | ||
| 007 | Q 0014826V002000000 | ROOF CAP HOLDER |
| (PARTS KIT), LEFT AND RIGHT | ||
| 008 | Q 0009356V005000000 | SEAL ROOF CAP |
| Repalced by: Q 0009356V006000000 | ||
| 008 | Q 0009356V006000000 | SEAL ROOF CAP |
| Repalced by: Q 0009356V007000000 | ||
| 008 | Q 0009356V007000000 | SEAL ROOF CAP |
| 009 | Q 0014302V000000000 | EJOT BOLT K 60X15 |
| 010 | Q 0014834V000000000 | EJOT BOLT DELTA PT 40X10 |
| 012 | Q 0014829V001000000 | COVER B-PILLAR |
| 013 | Q 0011885V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0016335V000000000 | ||
| 013 | Q 0016335V000000000 | TORX INSTRUMENT CLUSTER S |
| 014 | Q 0014827V001000000 | LONGITUDINAL MEMBER MOUNT |
| Repalced by: Q 0014827V002000000 | ||
| 014 | Q 0014827V002000000 | LONGITUDINAL MEMBER MOUNT |
| Repalced by: Q 0014827V003000000 | ||
| 014 | Q 0014827V003000000 | LONGITUDINAL MEMBER MOUNT |
| 015 | Q 0011885V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0016335V000000000 | ||
| 015 | Q 0016335V000000000 | TORX INSTRUMENT CLUSTER S |
| 015 | Q 0011885V000000000 | TORX INSTRUMENT CLUSTER S |
| 016 | Q 0014821V001000000 | FOLDER |
| Repalced by: Q 0014821V002000000 | ||
| 016 | Q 0014821V002000000 | FOLDER |
| 017 | Q 0009862V007000000 | MODULE CARRIER |
| Repalced by: Q 0009862V008000000 | ||
| 017 | Q 0009862V008000000 | MODULE CARRIER |
| Repalced by: Q 0009862V009000000 | ||
| 017 | Q 0009862V009000000 | MODULE CARRIER |
| Repalced by: Q 0009862V010000000 | ||
| 017 | Q 0009862V010000000 | MODULE CARRIER |
| Repalced by: Q 0009862V011000000 | ||
| 017 | Q 0009862V011000000 | MODULE |
| 018 | Q 0015593V001000000 | COVER STRIKER |
| Repalced by: Q 0015593V002000000 | ||
| 018 | Q 0015593V002000000 | COVER STRIKER |
| 019 | Q 0016350V000000000 | SELF-TAPPING SCREW 4.8 X1 |
| 020 | Q 0011885V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0016335V000000000 | ||
| 020 | Q 0016335V000000000 | TORX INSTRUMENT CLUSTER S |
| 021 | Q 0014830V001000000 | SOFT-TOP PROTECTIVE FLAP |
| 022 | Q 0014834V000000000 | EJOT BOLT DELTA PT 40X10 |
| 023 | Q 0009879V002000000 | ENGINE |
| 024 | Q 0014835V001000000 | GEAR |
| 025 | Q 0016349V001000000 | BRASS WASHER 14.1X4.2 |
| 026 | Q 0014817V001000000 | DRIVE CABLES |
| Repalced by: Q 0014817V002000000 | ||
| 026 | Q 0014817V002000000 | DRIVE CABLES |
| REPAIR KIT | ||
| Repalced by: Q 0014817V003000000 | ||
| 026 | Q 0014817V003000000 | DRIVE CABLES |
| REPAIR KIT | ||
| 027 | Q 0009868V002000000 | HOOP FRONT/REAR |
| 028 | Q 0014836V000000000 | EJOT BOLT K 60X15 |
| 029 | Q 0014842V000000000 | C/S SELF-TAPPING SCREW ST |
| 030 | Q 0011885V000000000 | TORX INSTRUMENT CLUSTER S |
| Repalced by: Q 0016335V000000000 | ||
| 030 | Q 0016335V000000000 | TORX INSTRUMENT CLUSTER S |
| 031 | Q 0017777V001000000 | REPAIR SET |
| GASKETS | ||
| 032 | Q 0022489V001000000 | SOFT TOP COVER |
