Transporto priemonė: MB-TRAC 1000; VIN numerio dalis: 441162

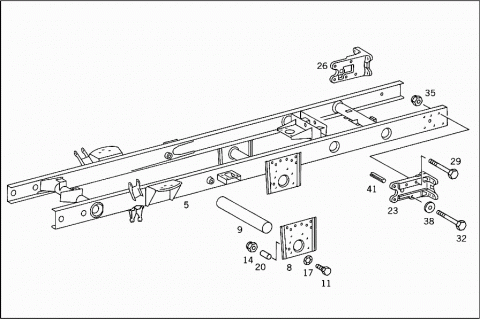

Grupė: 31 FRAME
29625
# Kodas Pavadinimas
005 A 4413100701 FRAME
008 A 4413120051 END PIECE
009 A 4413120125 CROSS MEMBER
011 N 000931010111 SCREW
Repalced by: N 304017010032
011 N 304017010032 SCREW
END PIECE TO FRAME
M 10X65
014 N 913004010011 NUT
Repalced by: N 913023010002
014 N 913023010002 NUT
017 A 0009941751 LOCK
020 A 4063170853 SPACER TUBE
023 A 4063110951 FRAME FLANGE
LEFT
026 A 4063111051 FRAME FLANGE
RIGHT
029 N 000960014229 SCREW
Repalced by: N 910105014008
029 N 910105014008 SCREW
PLATE AND FLANGE TO FRAME
M 14X1.5X55
032 N 000960016261 SCREW
Repalced by: N 910105016015
032 N 910105016015 SCREW
M 16X1.5X65
032 N 000960016206 SCREW
Repalced by: N 910105016014
032 N 910105016014 SCREW
M 16X1.5X70
035 N 913004014005 NUT
Repalced by: N 910113014000
035 N 910113014000 NUT
035 N 913004016005 NUT
Repalced by: N 910113016001
035 N 910113016001 NUT
038 N 006796016101 CONICAL SPRING WASHER
041 N 001481025002 CLAMPING SLEEVE
