Transporto priemonė: MB-TRAC 1000; VIN numerio dalis: 441162

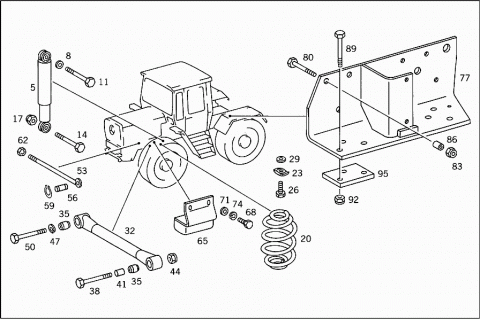

Grupė: 32 SPRINGS AND SUSPENSION - 050 FRONT SPRINGS AND REAR AXLE SUSPENSION
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 0053231100 | SHOCK ABSORBER |
| A 0003231550 | BUSHING | |
| A 0003233044 | RUBBER BUFFER | |
| Repalced by: A 0003233144 | ||
| A 0003233144 | RUBBER BUFFER | |
| Repalced by: A 0003238085 | ||
| A 0003238085 | RUBBER MOUNTING | |
| 008 | A 4403170250 | BUSHING |
| SHOCK ABSORBER TO FRAME | ||
| 011 | N 000960020147 | SCREW |
| SHOCK ABSORBER TO FRAME | ||
| M 20X1.5X85 | ||
| 014 | N 000960020032 | SCREW |
| Repalced by: N 308765020012 | ||
| 014 | N 308765020012 | SCREW |
| SHOCK ABSORBER TO FRONT AXLE | ||
| M 20X1.5X90 | ||
| 017 | N 913004020004 | NUT |
| Repalced by: N 913023020000 | ||
| 017 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 017 | N 913023020001 | NUT |
| SHOCK ABSORBER TO FRONT AXLE | ||
| 020 | A 4063210004 | FRONT SPRING |
| 023 | A 4403223409 | PLATE |
| FRONT SPRING TO FRAME | ||
| 026 | N 000961014050 | SCREW |
| Repalced by: N 910105014013 | ||
| 026 | N 910105014013 | SCREW |
| FRONT SPRING TO FRAME | ||
| M 14X1.5X35 | ||
| 029 | N 006796014100 | CONICAL SPRING WASHER |
| FRONT SPRING TO FRAME | ||
| 032 | A 4423300407 | TRANSVERSE CONTROL ARM |
| 035 | A 0019880610 | RUBBER MOUNTING |
| 038 | A 4259905501 | SCREW |
| CONTROL ARM TO FRAME | ||
| 041 | A 4253330112 | BUSHING |
| CONTROL ARM TO FRAME | ||
| 044 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 044 | N 913023016001 | NUT |
| CONTROL ARM TO FRAME | ||
| 047 | A 4419900047 | LOCK WASHER |
| CONTROL ARM TO FRONT AXLE | ||
| 050 | N 914125016209 | SCREW |
| CONTROL ARM TO FRONT AXLE | ||
| M 16X1,5X85 | ||
| 053 | A 4419900023 | SCREW |
| 056 | A 4413220174 | PIN |
| EYEBOLT TO CONTROL ARM BRACKET | ||
| 059 | N 000471018000 | LOCK RING |
| EYEBOLT TO CONTROL ARM BRACKET | ||
| 062 | N 000934020008 | NUT |
| Repalced by: N 913023020000 | ||
| 062 | N 913023020000 | NUT |
| Repalced by: N 913023020001 | ||
| 062 | N 913023020001 | NUT |
| EYEBOLT TO FRAME | ||
| 065 | A 4413220144 | RUBBER BUFFER |
| 068 | N 000933008154 | SCREW |
| Repalced by: N 304017008021 | ||
| 068 | N 304017008021 | SCREW |
| RUBBER BUFFER TO FRAME | ||
| M 8X22 | ||
| 071 | N 000125008418 | WASHER |
| Repalced by: N 000125008443 | ||
| 071 | N 000125008443 | WASHER |
| RUBBER BUFFER TO FRAME | ||
| 074 | N 912004008102 | LOCK WASHER |
| RUBBER BUFFER TO FRAME | ||
| 077 | A 4413200035 | PLATE |
| REAR AXLE,LEFT | ||
| 077 | A 4413200135 | PLATE |
| REAR AXLE,RIGHT | ||
| 080 | N 000960016237 | SCREW |
| Repalced by: N 910105016005 | ||
| 080 | N 910105016005 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X60 | ||
| 083 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 083 | N 910113016001 | NUT |
| PLATE TO FRAME | ||
| 086 | A 4403220150 | BUSHING |
| PLATE TO FRAME | ||
| 089 | N 000960016261 | SCREW |
| Repalced by: N 910105016015 | ||
| 089 | N 910105016015 | SCREW |
| PLATE TO REAR AXLE | ||
| M 16X1.5X65 | ||
| 092 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 092 | N 910113016001 | NUT |
| PLATE TO REAR AXLE | ||
| 095 | A 4403250054 | PLATE |
| PLATE TO REAR AXLE | ||
