Transporto priemonė: MB-TRAC 1300; VIN numerio dalis: 443161

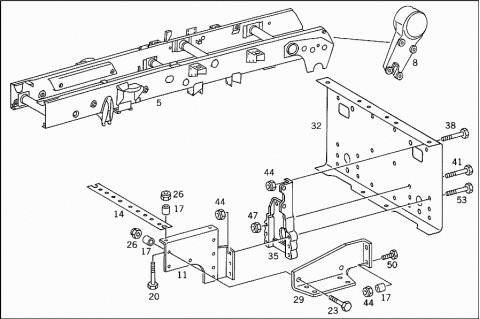

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| A 4433100001 | FRAME | |
| Repalced by: A 4433100101 | ||
| A 4433100101 | FRAME | |
| Repalced by: A 4433100301 | ||
| A 4433100301 | FRAME | |
| Repalced by: A 4433100401 | ||
| 005 | A 4433100401 | FRAME |
| 005 | A 4433100401 | FRAME |
| 005 | A 4433100401 | FRAME |
| 008 | A 4435510021 | BEARING |
| A 4423110453 | ANGLE | |
| Repalced by: A 4423100757 | ||
| A 4423100757 | PLATE | |
| Repalced by: A 4433100457 | ||
| 011 | A 4433100457 | PLATE |
| LEFT | ||
| A 4423110553 | ANGLE | |
| Repalced by: A 4423100857 | ||
| A 4423100857 | PLATE | |
| Repalced by: A 4433100557 | ||
| 011 | A 4433100557 | PLATE |
| RIGHT | ||
| 014 | A 4425513040 | BRACKET |
| 017 | A 4403220150 | BUSHING |
| 017 | A 4423110750 | BUSHING |
| 020 | N 000961016036 | SCREW |
| Repalced by: N 910105016004 | ||
| 020 | N 910105016004 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| 023 | N 000960016212 | SCREW |
| Repalced by: N 910105016015 | ||
| 023 | N 910105016015 | SCREW |
| 026 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 026 | N 913023016001 | NUT |
| 029 | A 4423110663 | CONSOLE |
| LEFT | ||
| 029 | A 4423110763 | CONSOLE |
| RIGHT | ||
| A 4423110354 | REINFORCEMENT | |
| Repalced by: A 4425501039 | ||
| A 4425501039 | MOUNTING PLATE | |
| Repalced by: A 4433100157 | ||
| A 4433100057 | PLATE | |
| Repalced by: A 4433100157 | ||
| A 4433100157 | PLATE | |
| Repalced by: A 4433100357 | ||
| 032 | A 4433100357 | PLATE |
| A 4423171140 | BRACKET | |
| Repalced by: A 4423171740 | ||
| A 4423171740 | BRACKET | |
| Repalced by: A 4423171940 | ||
| A 4423171940 | BRACKET | |
| Repalced by: A 4433170040 | ||
| A 4433170040 | BRACKET | |
| Repalced by: A 4433170240 | ||
| 035 | A 4433170240 | BRACKET |
| LEFT | ||
| A 4423171240 | BRACKET | |
| Repalced by: A 4423171840 | ||
| A 4423171840 | BRACKET | |
| Repalced by: A 4423172040 | ||
| A 4423172040 | BRACKET | |
| Repalced by: A 4433170140 | ||
| A 4433170140 | BRACKET | |
| Repalced by: A 4433170340 | ||
| 035 | A 4433170340 | BRACKET |
| RIGHT | ||
| 038 | N 000961016077 | SCREW |
| Repalced by: N 910105016007 | ||
| 038 | N 910105016007 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 041 | N 000960018109 | SCREW |
| Repalced by: N 308676018009 | ||
| 041 | N 308676018009 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| 041 | N 000960018145 | SCREW |
| BRACKET TO CROSS MEMBER | ||
| TO 442 317 19 40,442 317 20 40 | ||
| 041 | N 000960018163 | SCREW |
| Repalced by: N 910105018000 | ||
| 041 | N 910105018018 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| M 18X1.5X100 | ||
| Repalced by: N 000000005559 | ||
| 041 | N 000000005559 | HEXAGON HEAD BOLT |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| M 18X1.5X100 | ||
| 044 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 044 | N 910113016001 | NUT |
| 047 | N 913004018004 | NUT |
| 050 | N 000960016261 | SCREW |
| Repalced by: N 910105016015 | ||
| 050 | N 910105016015 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| 053 | N 000960016052 | SCREW |
| 053 | N 000960016260 | SCREW |
| Repalced by: N 910105016002 | ||
| 053 | N 910105016002 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| 053 | N 000960016257 | SCREW |
| Repalced by: N 910105016009 | ||
| 053 | N 910105016009 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
