Transporto priemonė: MB-TRAC 1400 TURBO; VIN numerio dalis: 443164

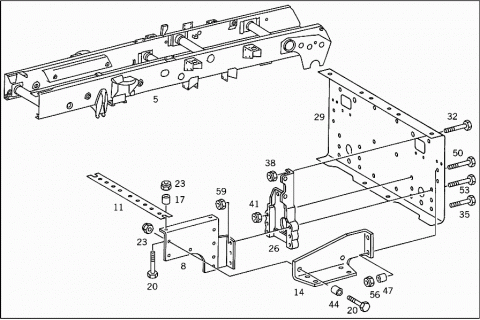

Grupė: 31 FRAME
| # | Kodas | Pavadinimas |
|---|---|---|
| 005 | A 4433100601 | FRAME |
| 008 | A 4423100757 | PLATE |
| Repalced by: A 4433100457 | ||
| 008 | A 4433100457 | PLATE |
| LEFT | ||
| 008 | A 4423100857 | PLATE |
| Repalced by: A 4433100557 | ||
| 008 | A 4433100557 | PLATE |
| RIGHT | ||
| 011 | A 4425513040 | BRACKET |
| 014 | A 4423110663 | CONSOLE |
| LEFT | ||
| 014 | A 4423110763 | CONSOLE |
| RIGHT | ||
| 017 | A 4403220150 | BUSHING |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| 017 | A 4403220150 | BUSHING |
| CONSOLE TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| 020 | N 000960016212 | SCREW |
| Repalced by: N 910105016015 | ||
| 020 | N 910105016015 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| M 16X1.5X65 | ||
| 020 | N 000960016138 | SCREW |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| M 16X1.5X75 | ||
| 020 | N 000960016138 | SCREW |
| CONSOLE TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| M 16X1.5X75 | ||
| 023 | N 913004016004 | NUT |
| Repalced by: N 913023016001 | ||
| 023 | N 913023016001 | NUT |
| BRACKET AND REINFORCEMENT TO SIDE MEMBER | ||
| 023 | N 913023016001 | NUT |
| CONSOLE TO REINFORCEMENT ANGLE AND TO SIDE MEMBER | ||
| 026 | A 4433170240 | BRACKET |
| LEFT | ||
| 026 | A 4433170340 | BRACKET |
| RIGHT | ||
| A 4435501239 | MOUNTING PLATE | |
| PLATE TO FRAME END PLATE | ||
| A 4435510055 | REINFORCEMENT | |
| PLATE TO FRAME END PLATE | ||
| N 000960018033 | SCREW | |
| PLATE TO FRAME END PLATE | ||
| M 18X1.5X120 | ||
| N 000960018165 | SCREW | |
| Repalced by: A 0089909101 | ||
| A 0089909101 | SCREW | |
| PLATE TO FRAME END PLATE | ||
| M 18X1.5X105 | ||
| N 913004018004 | NUT | |
| PLATE TO FRAME END PLATE | ||
| 029 | A 4433100357 | PLATE |
| 032 | N 000961016077 | SCREW |
| Repalced by: N 910105016007 | ||
| 032 | N 910105016007 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X45 | ||
| 035 | N 000960018109 | SCREW |
| Repalced by: N 308676018009 | ||
| 035 | N 308676018009 | SCREW |
| PLATE TO FRAME | ||
| M 18X1.5X60 | ||
| 038 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 038 | N 910113016001 | NUT |
| PLATE TO FRAME | ||
| 041 | N 913004018004 | NUT |
| PLATE TO FRAME | ||
| 044 | A 4423110750 | BUSHING |
| PLATE TO FRAME | ||
| 047 | A 4403220150 | BUSHING |
| PLATE TO FRAME | ||
| 050 | N 000961016036 | SCREW |
| Repalced by: N 910105016004 | ||
| 050 | N 910105016004 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X40 | ||
| 050 | N 000960016261 | SCREW |
| Repalced by: N 910105016015 | ||
| 050 | N 910105016015 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X65 | ||
| 050 | N 000960016260 | SCREW |
| Repalced by: N 910105016002 | ||
| 050 | N 910105016002 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X90 | ||
| 050 | N 000960016257 | SCREW |
| Repalced by: N 910105016009 | ||
| 050 | N 910105016009 | SCREW |
| PLATE TO FRAME | ||
| M 16X1.5X105 | ||
| 053 | N 000960018163 | SCREW |
| Repalced by: N 910105018000 | ||
| 053 | N 910105018018 | SCREW |
| PLATE TO FRAME | ||
| M 18X1.5X100 | ||
| Repalced by: N 000000005559 | ||
| 053 | N 000000005559 | HEXAGON HEAD BOLT |
| PLATE TO FRAME | ||
| M 18X1.5X100 | ||
| 056 | N 913004016005 | NUT |
| Repalced by: N 910113016001 | ||
| 056 | N 910113016001 | NUT |
| PLATE TO FRAME | ||
| 059 | N 913004018004 | NUT |
| PLATE TO FRAME | ||
